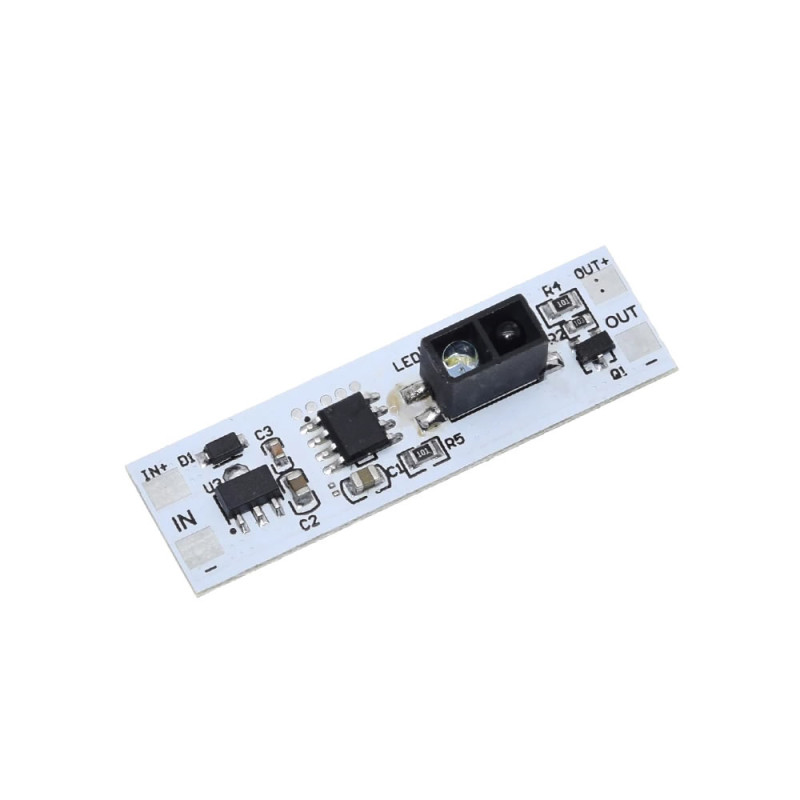

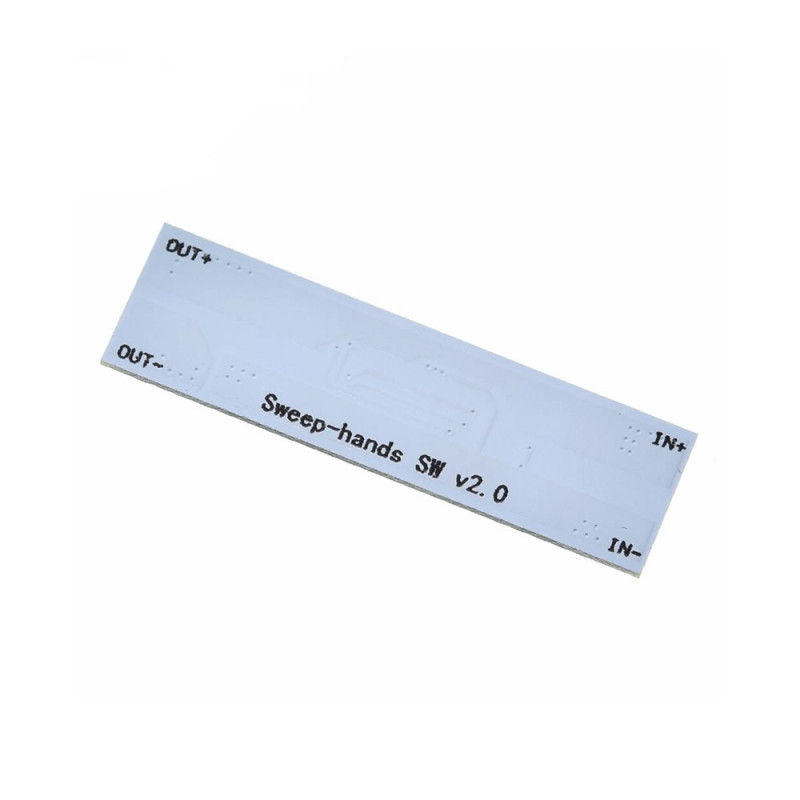

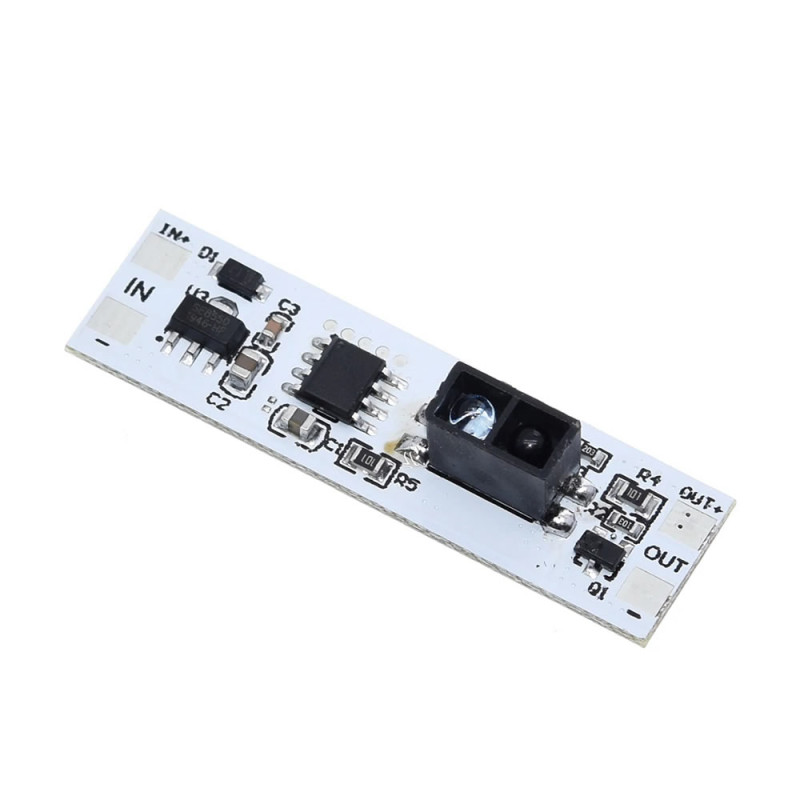

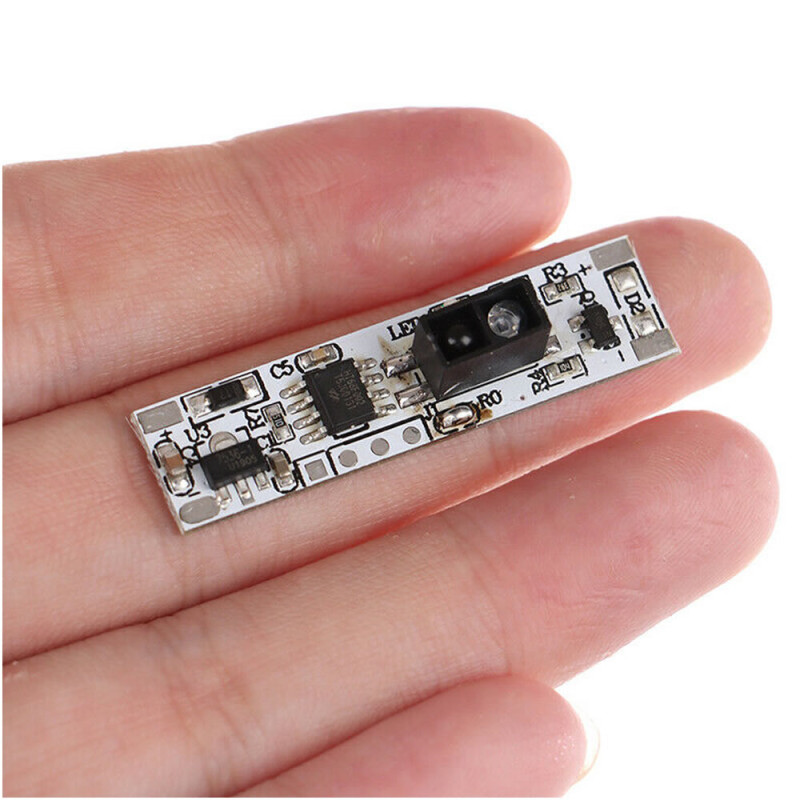

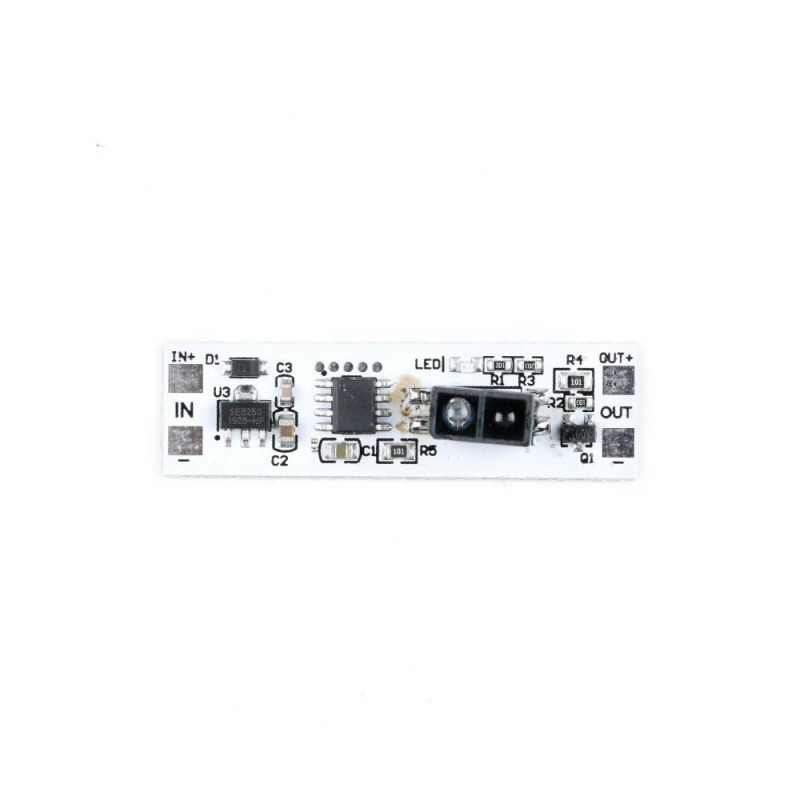

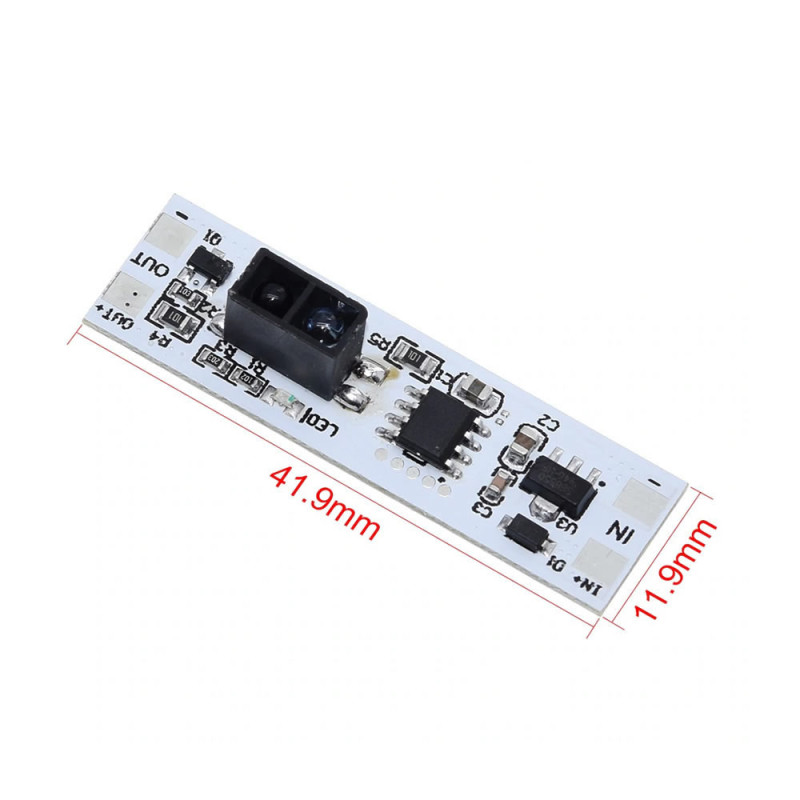

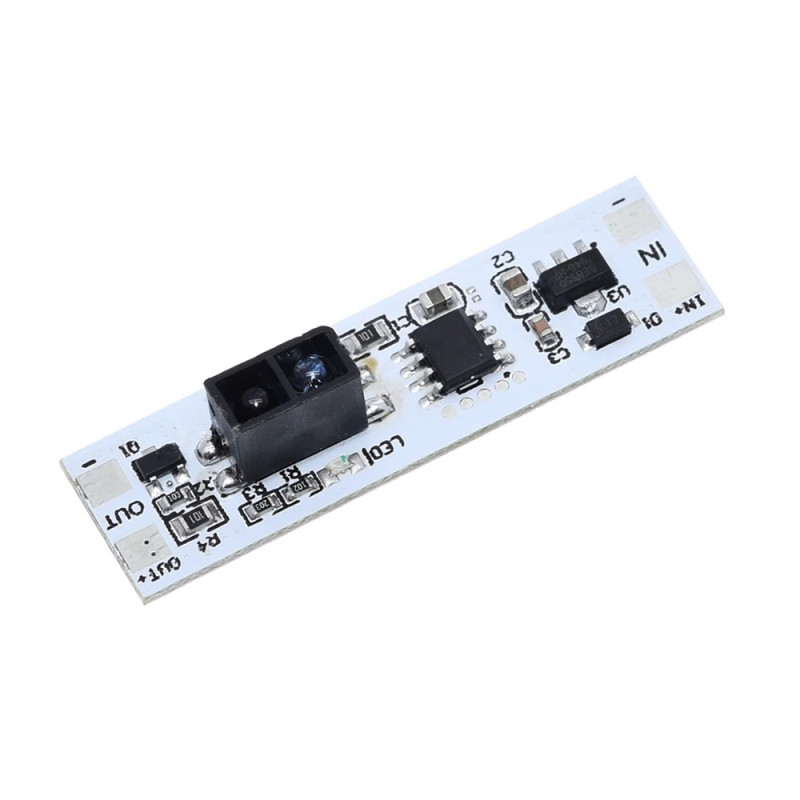

10cm Infrared Switch

10cm Infrared Switch

DC 5-24V 3A  70W Infrared Short Distance Obstacle Detecting Switch

Hand Detector Hand Sweep Sensor Infrared Short Distance Object Detector

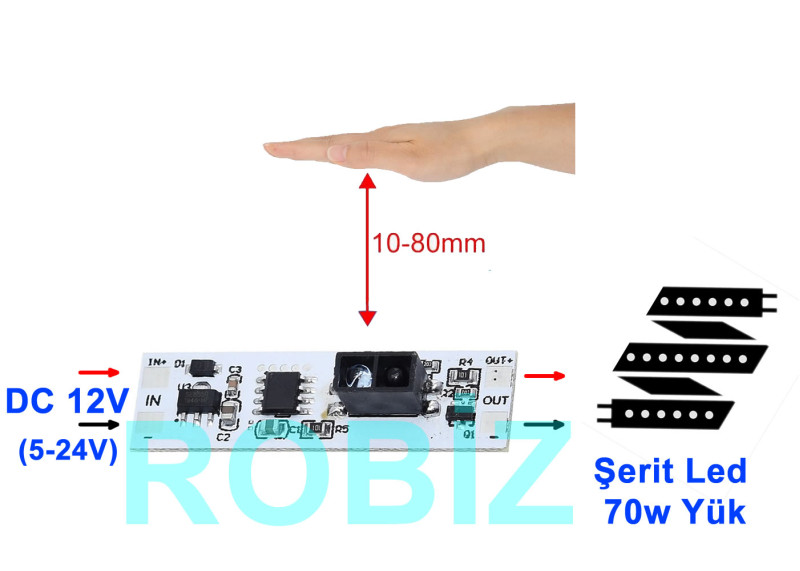

     This module is a module that can switch at 70w power when the infrared transceiver on it detects an obstacle closer than 10cm. It transfers the supply applied between 5V-24V at the input to the output. It performs the switching operation by detecting objects such as a hand. When you pass your hand, it passes the voltage, and when you pass your hand over the sensor again, it turns it off. It allows you to turn on and off products such as led strips and water switches with hand movement. You can also control 220V products by adding a relay  solenoid to the output.


Description:

• Operating voltage: DC 5V - 24V
• Current: Max 3A
• Led showing the switch operating status.
• Standby current: 10mA
• Detection range: less than 10cm
• Detection principle: Infrared Led
• Power load: 70W
• Load current: 3A optional

Package Contents:

• 1 Piece  10cm Infrared Switch
