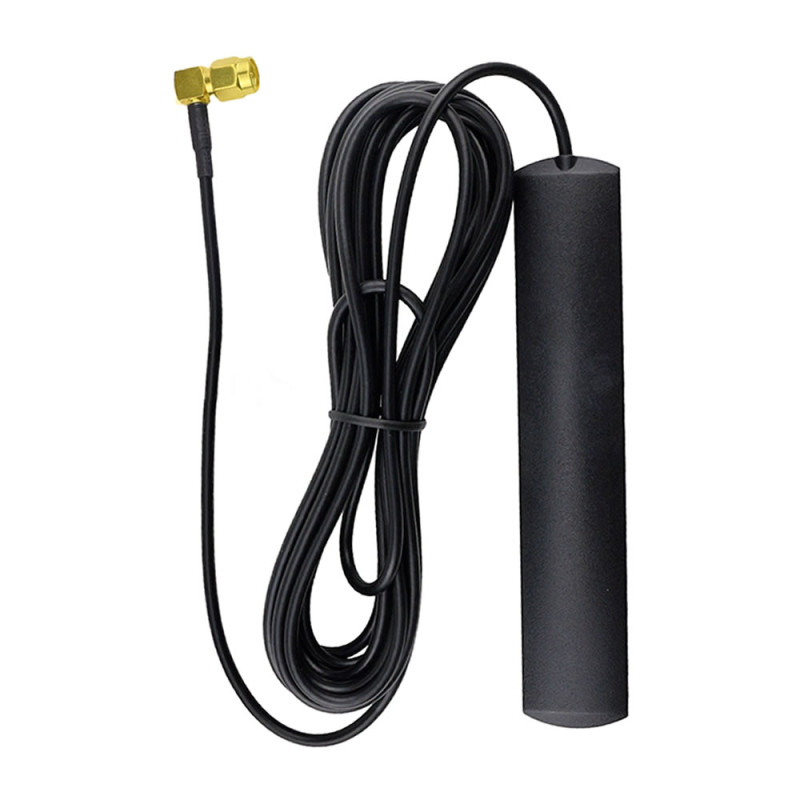

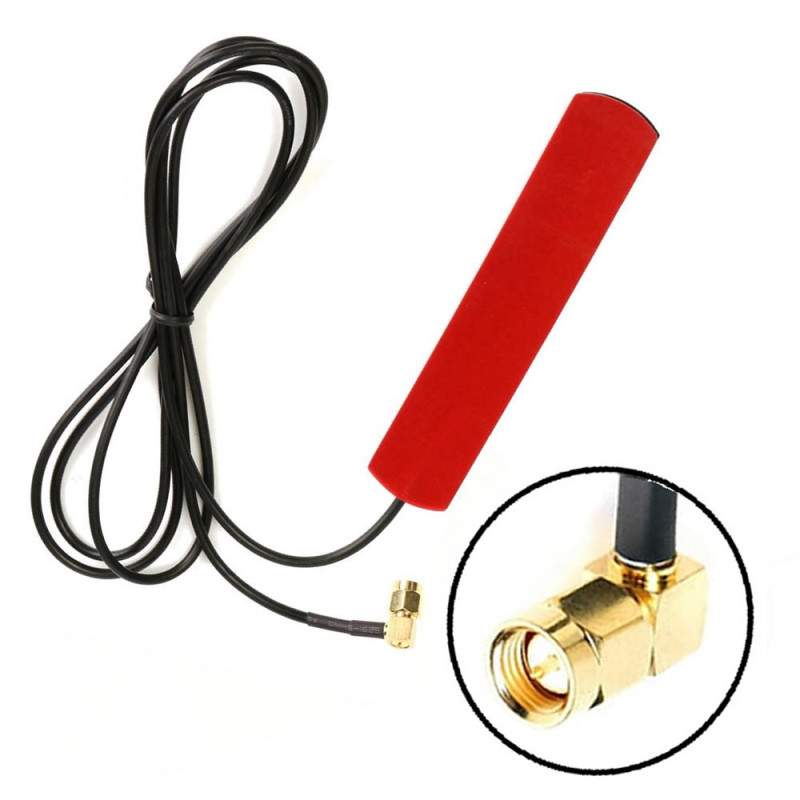

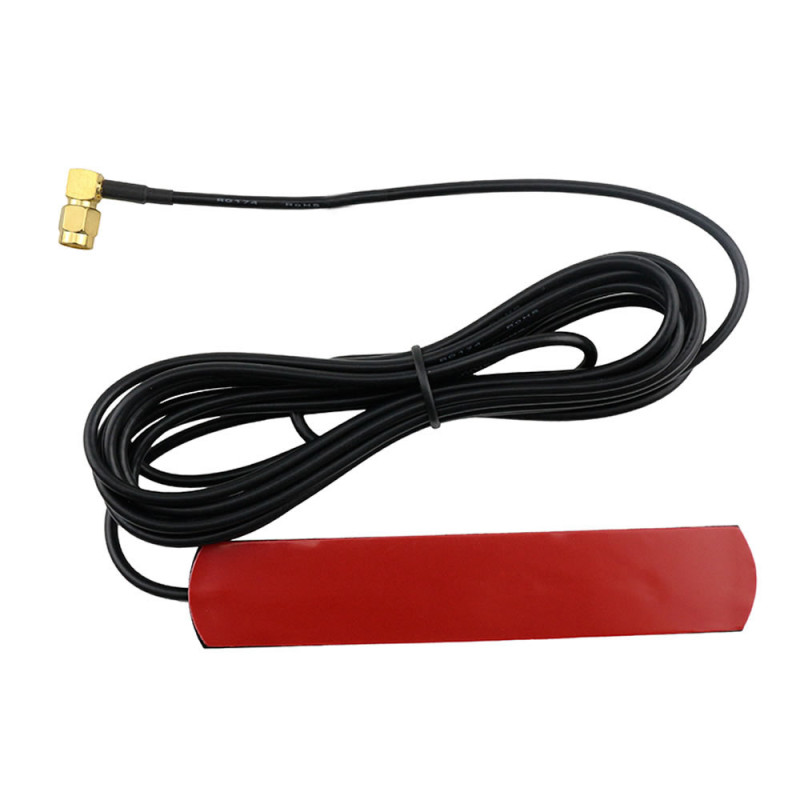

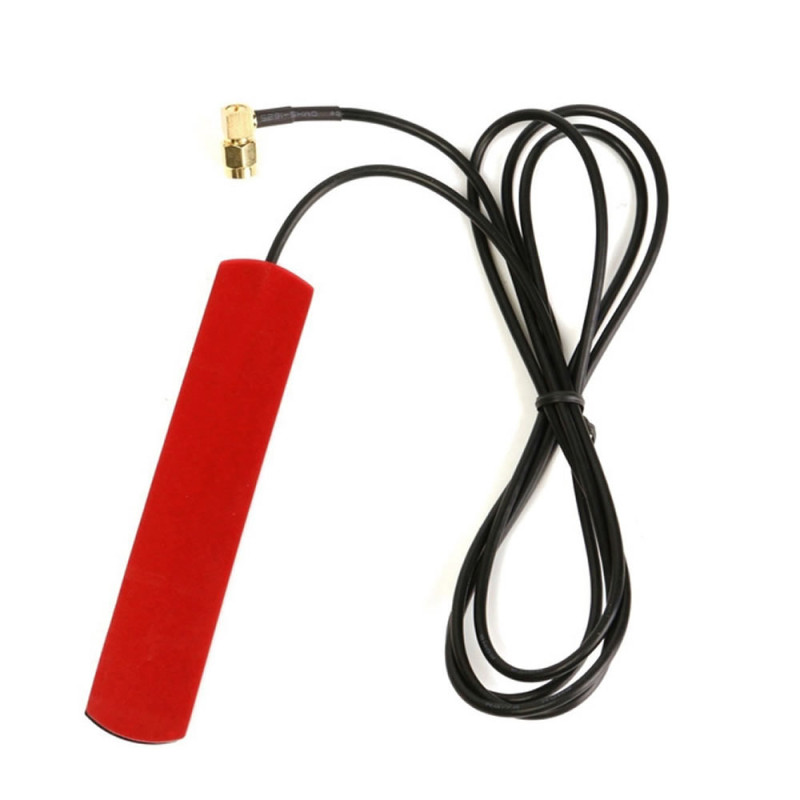

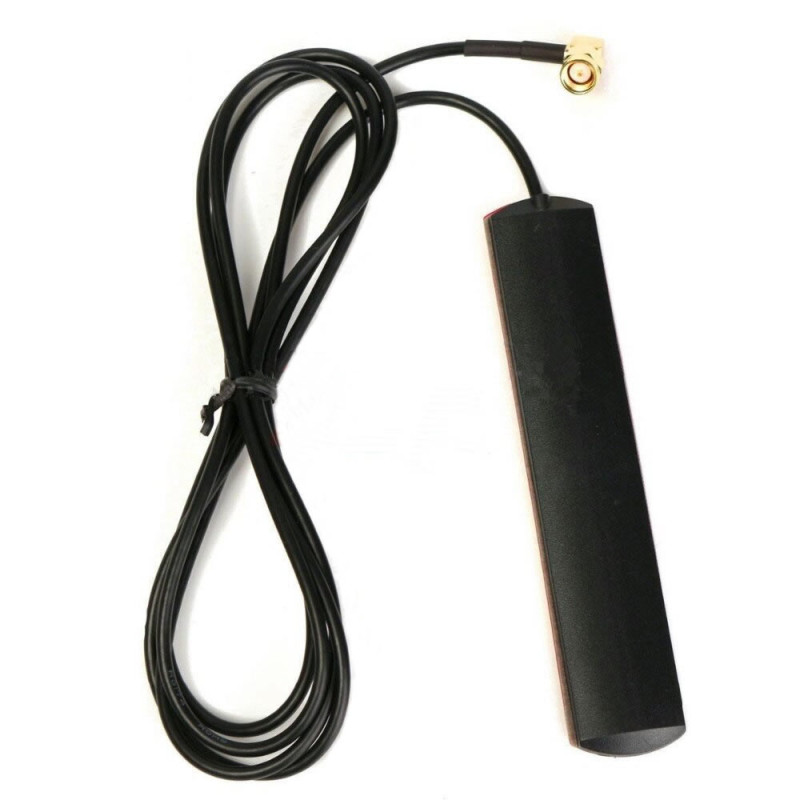

2.5dBi Patch Antenna

2.5dBi Patch Antenna 1.5 Meters Sma Male

433Mhz 50ohm Antenna Gsm Gprs Wifi RF Signal Booster 3M Adhesive Label 2G/3G/4G/GSM LTE

Please pay attention to the socket type ( Male – Female ) when purchasing !

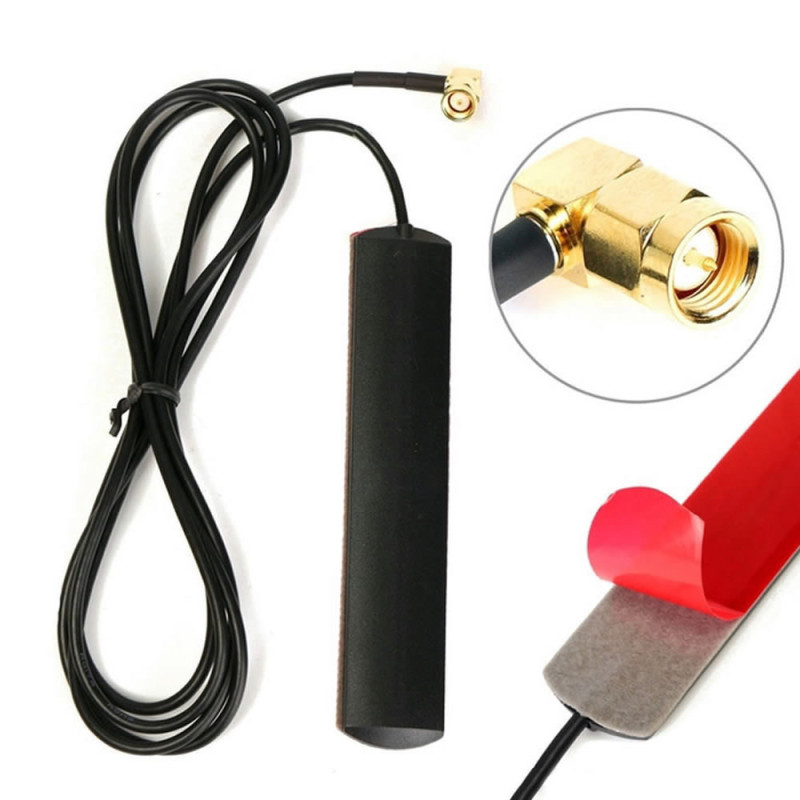

     2.5dbi antenna operating at 433Mhz frequency. It has a 1.5 meter cable length. Mounting is done with a 3M adhesive label.

     You can use it with devices operating in the 160Mhz-2.7Ghz range. You can use it in products such as IEEE802.11 b / g AP compatible Modem, Router, PCI Card, Bridge ...

     TPlink / Huawei / 3com / Edimax / ASUS / HP / Linksys / D-LINK / Belkin / SMC / Netgear / LanTech / Lemel  / Corega / X-Micro / PCI / Microsoft /  Giga  /PLANEX / Maxim …

Features:

• Frequency range: 433Mhz ( 160MHz 2.7GHz )
• Gain: 2.5dbi
• Polarization: Vertical
• Direction: Omnidirectional
• VSWR: 1.5 and below
• Cable type: RG174
• Maximum input power: 5watt
• Impedance: 50ohm
• Connector:  90 Degree SMA Male
• Operating temperature:  - 20C    +80 C
• Color: Black

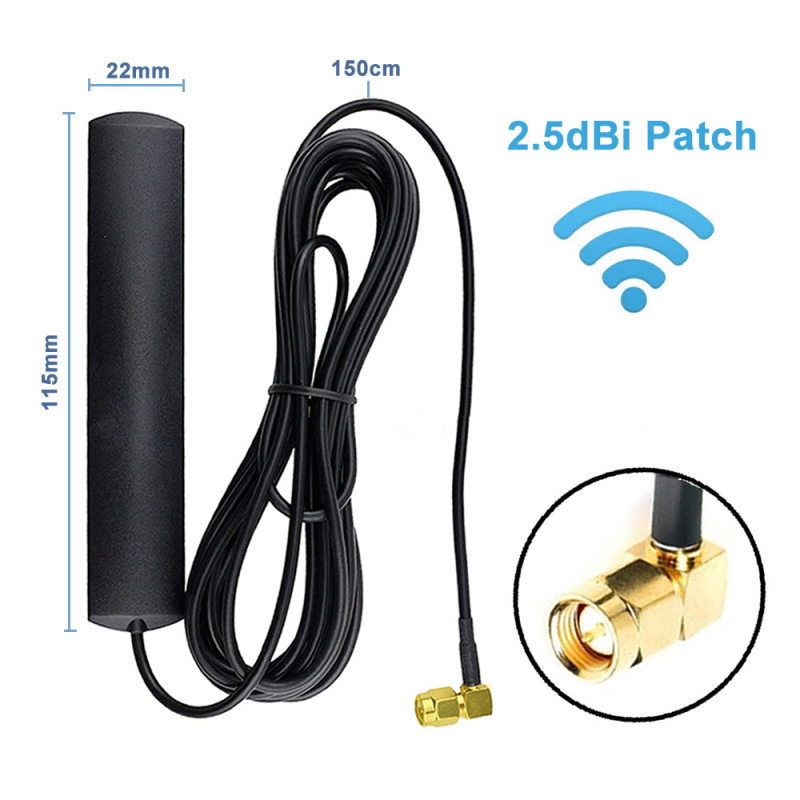

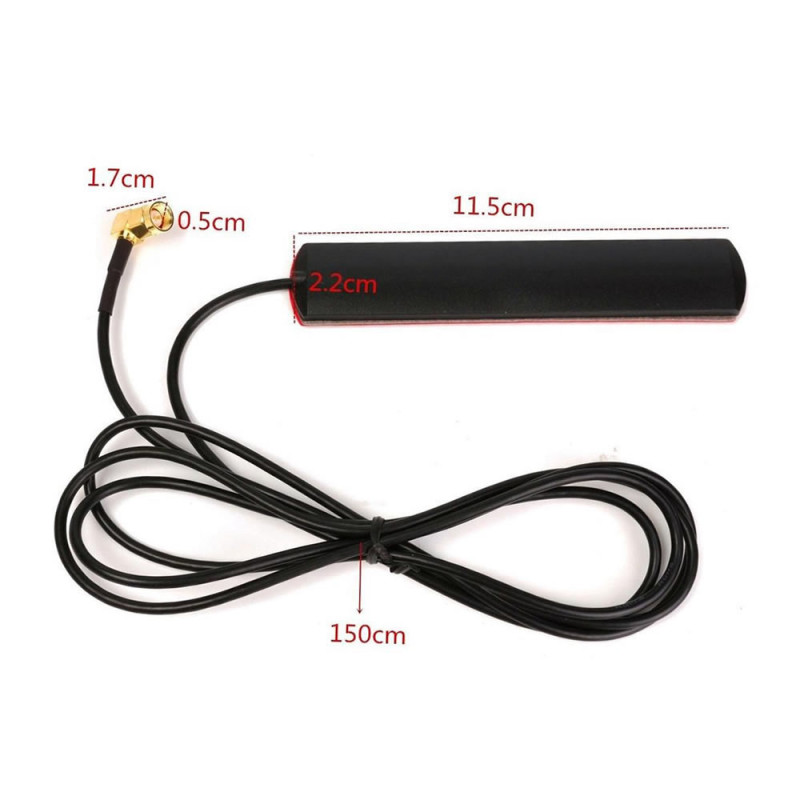

• Antenna dimensions:  115mm x 22mm
• Cable length: 1.5 meters
• Weight: 30gr

Package contents :

•     1 Piece 2.5dBi Patch Antenna 1.5 Meters Sma Male
