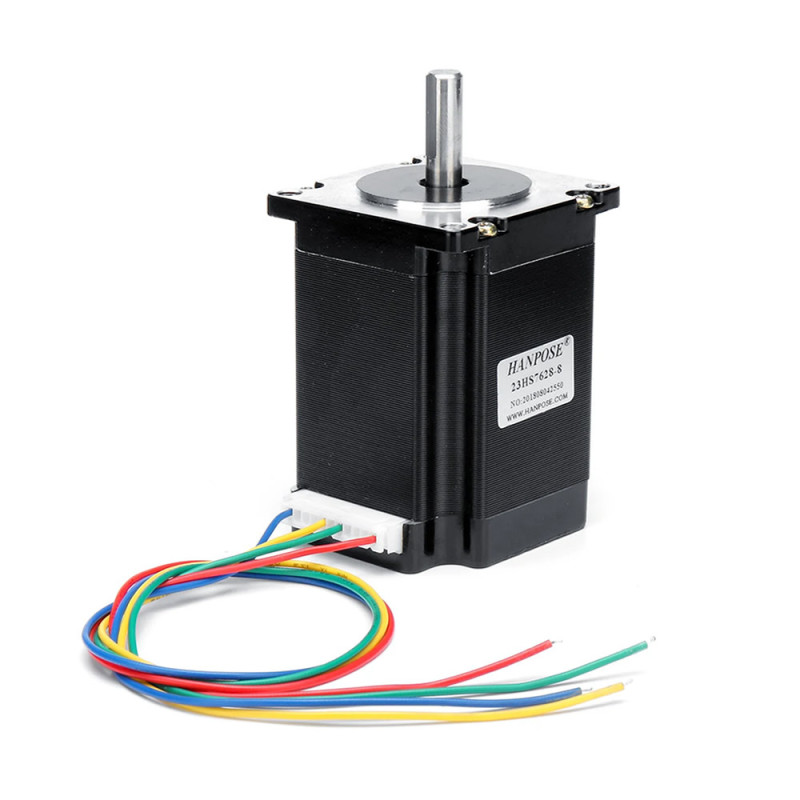

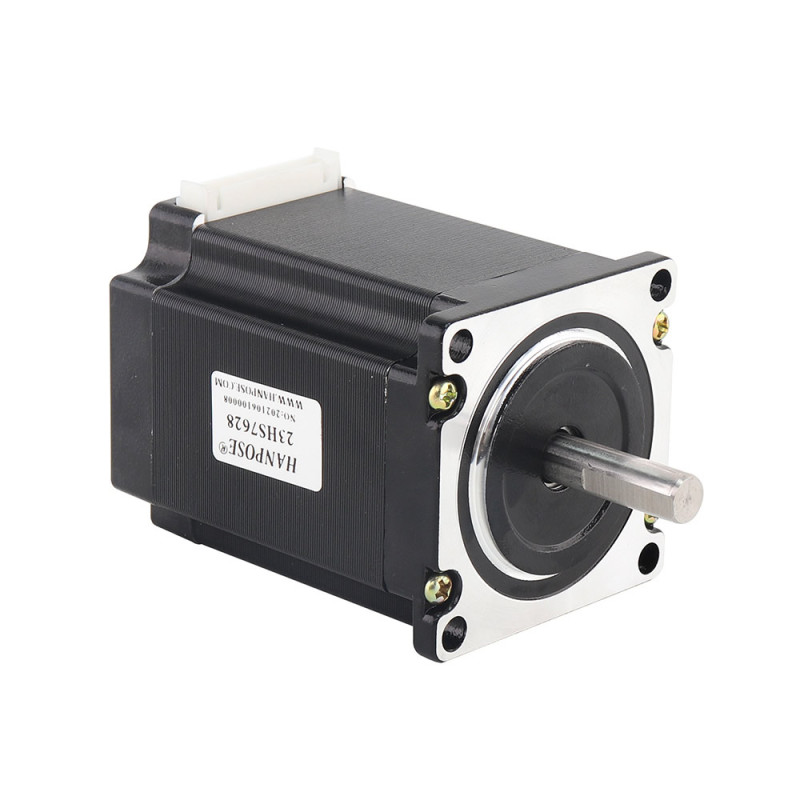

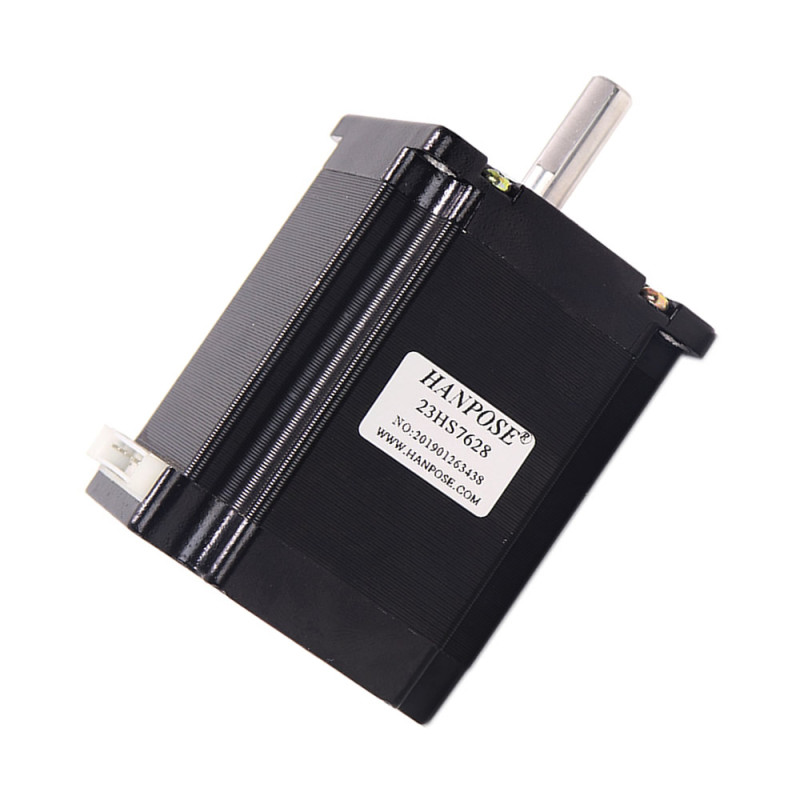

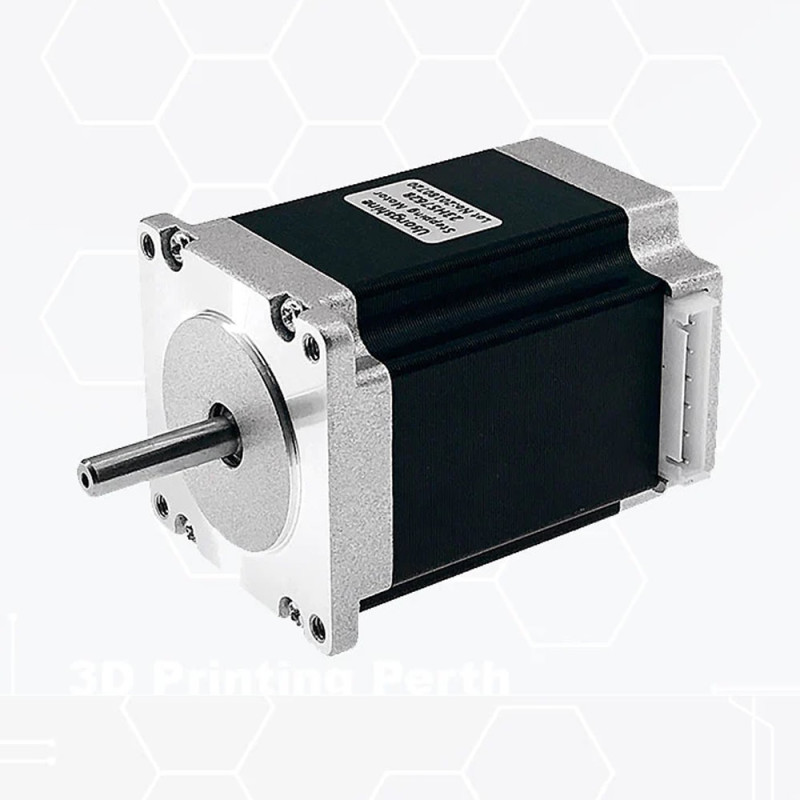

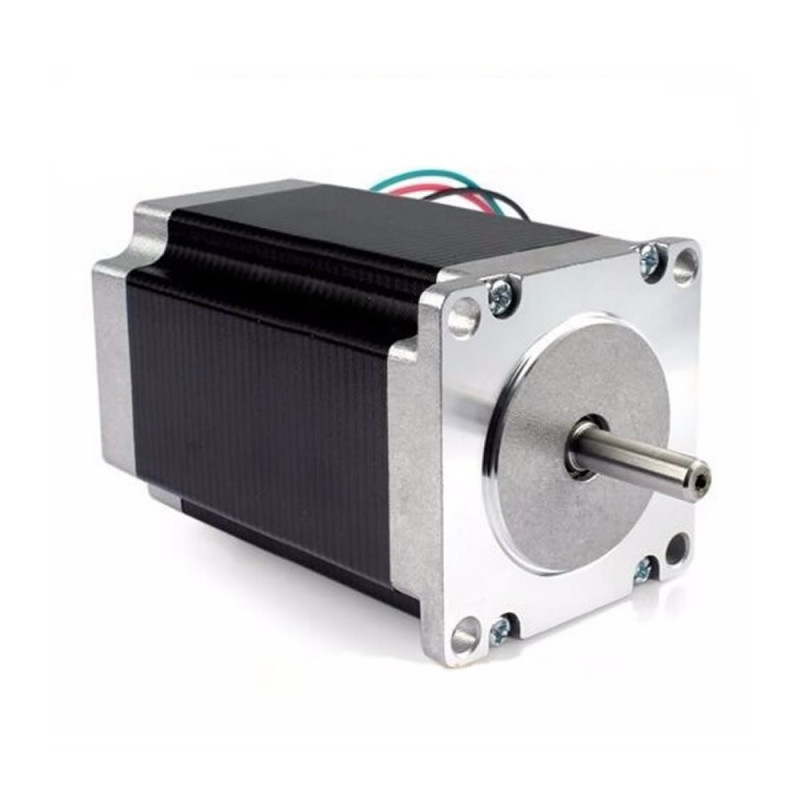

23HS7628 Nema 23 Stepper Motor
2,361.60TL
Ex Tax: 1,968.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 23HS7628 Step Motor
- SKU: RBZ.101.026
23HS7628 Nema 23 Stepper Motor 1.9Nm
3.2V 2.8A D Shaft 2 Phase 1.8 Degree 200 Step 3D Printer CNC Robotics Laser Engraving Plasma Automation Textile
1.9N 2.8A Nema23 stepper motor. It has 1.8 degree 200 step precision. It is suitable for precise travel applications. It is widely used in 3D printer, cnc, automation etc. applications.
Features:
- 2 Phase
- Voltage: 3.2V
- Rated current: 2.8A
- Torque: 1.9Nm
- Step angle: 1,8 Degree
- Number of steps: 200
- Phase resistance: 1.13 Ohm
- Phase inductance: 3.6 mH
- 4 Pin connection cable
- Cable length: 30cm
- Shaft: D Type

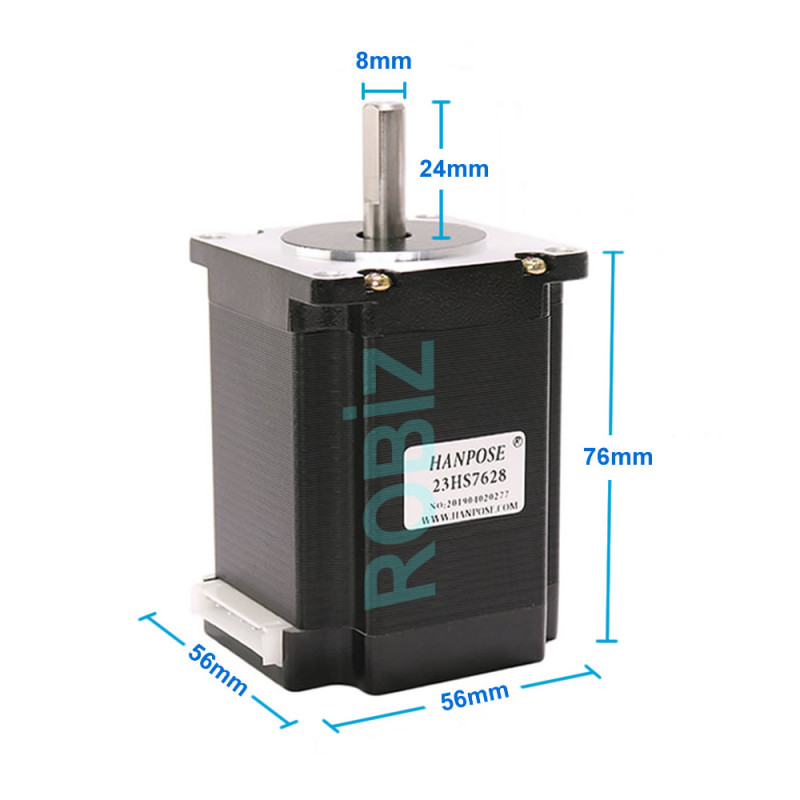

- Shaft diameter: 8mm
- Shaft length: 24mm
- Dimensions: 56mm x 56mm x 76mm
- Weight: 1025gr
Pin Connection:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-

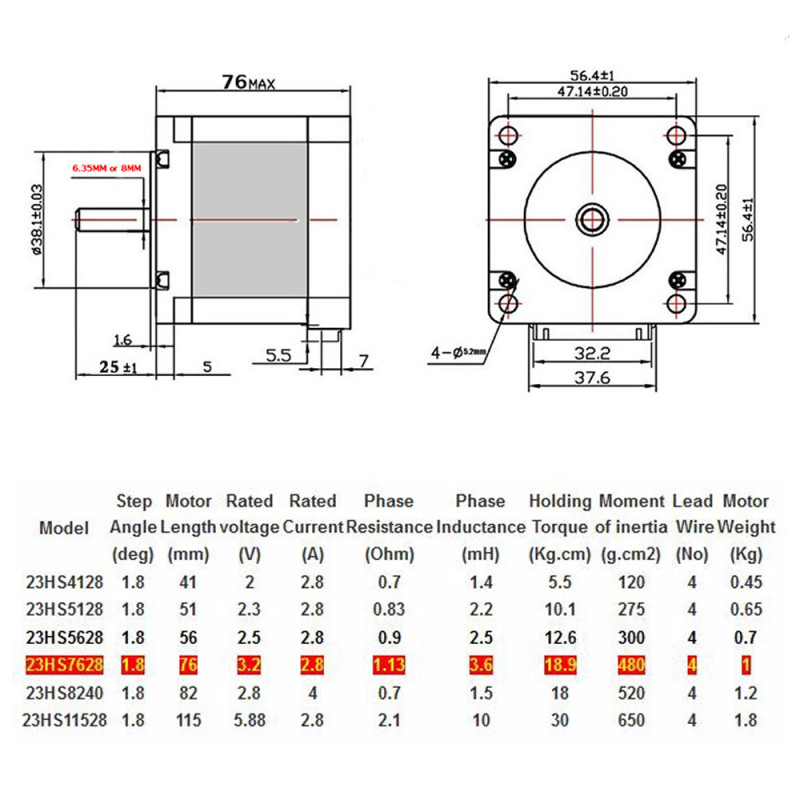

| Model |
Step Angle |
Motor Length |
Rated voltage |
Rated Current |
Phase Resistance |
Phase Inductance |
Holding Torque |
Moment of inertia |
Lead Wire |
Motor Weight |
| (deg) | (mm) | (V) | (A) | (Ohm) | (mH) | (Kg.cm) | (g.cm2) | (No) | (Kg) | |
| 23HS4128 | 1.8 | 41 | 2 | 2.8 | 0.7 | 1.4 | 5.5 | 120 | 4 | 0.45 |
| 23HS5128 | 1.8 | 51 | 2.3 | 2.8 | 0.83 | 2.2 | 10.1 | 275 | 4 | 0.65 |
| 23HS5628 | 1.8 | 56 | 2.5 | 2.8 | 0.9 | 2.5 | 12.6 | 300 | 4 | 0.7 |
| 23HS7628 | 1.8 | 76 | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 480 | 4 | 1 |
| 23HS8240 | 1.8 | 82 | 2.8 | 4 | 0.7 | 1.5 | 18 | 520 | 4 | 1.2 |
| 23HS11528 | 1.8 | 115 | 5.88 | 2.8 | 2.1 | 10 | 30 | 650 | 4 | 1.8 |
Package Contents :

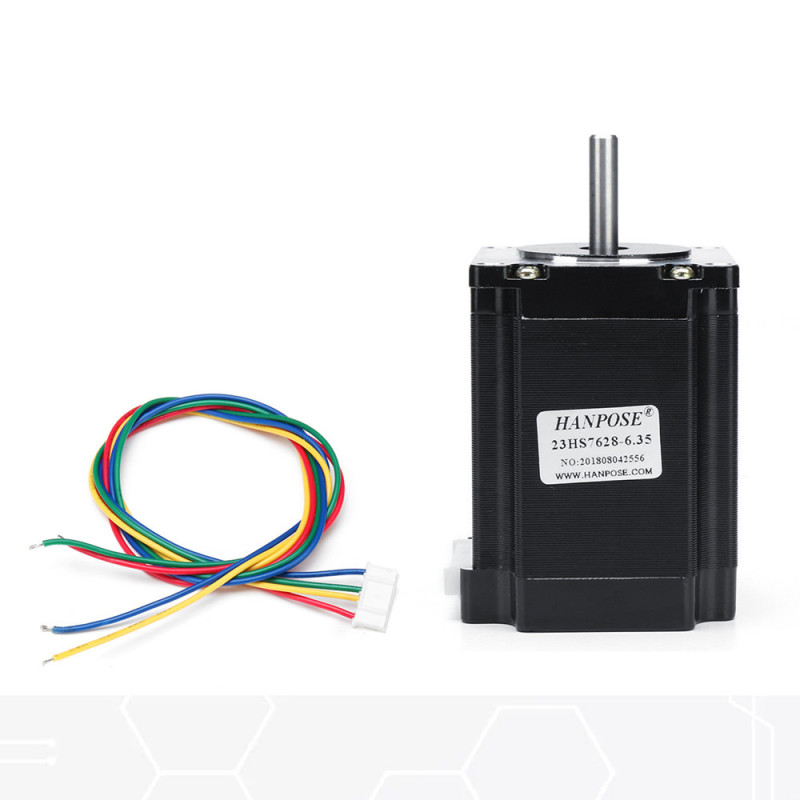

- 1 Piece 23HS7628 Nema 23 Stepper Motor
- 1 Piece connection cable
.
