2 Pin Switch Red Kcd1

2 Pin Red Switch Mini Button KCD1

Plastic On Off ON / OFF 5A 220V 10A 125V Latch Locking Rocker

     2 pin red mini switch. It has a switching capacity of 5A 220V. There are I O markings on the button. “I” means the switch is short circuited and electricity is going to the relevant device. “O” means the switch is an open circuit and electricity is not going to the relevant device. It stays in the pressed position.

Features:

•     2 Pin Red Switch Kcd1
•     Operating voltage and current:   5A AC  220V   10A AC 125V  /  5A  DC 5V 12V
•     Function: SPST (ON)-OFF
•     Label: I= On   -   O= Off
•     Number of pins:  2
•     Action type: Latch / Latching ( stays permanently in I or O position )
•     Material: Plastic /  Metal
•     Resistance: 35mohm
•     Operating temperature:  -25C  /  +65C
•     Color: Red
•     Life: more than 10000

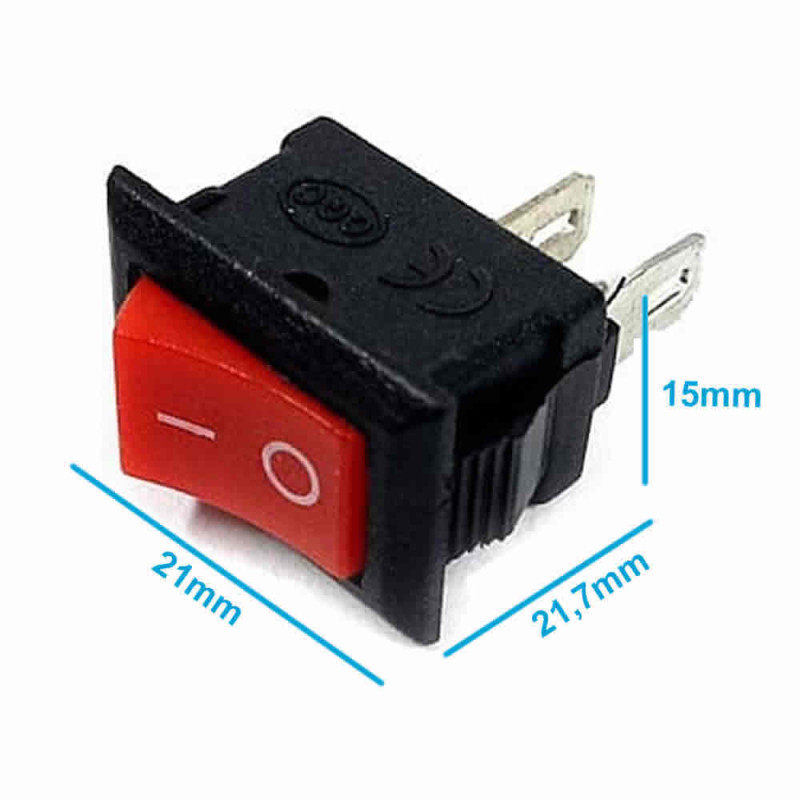

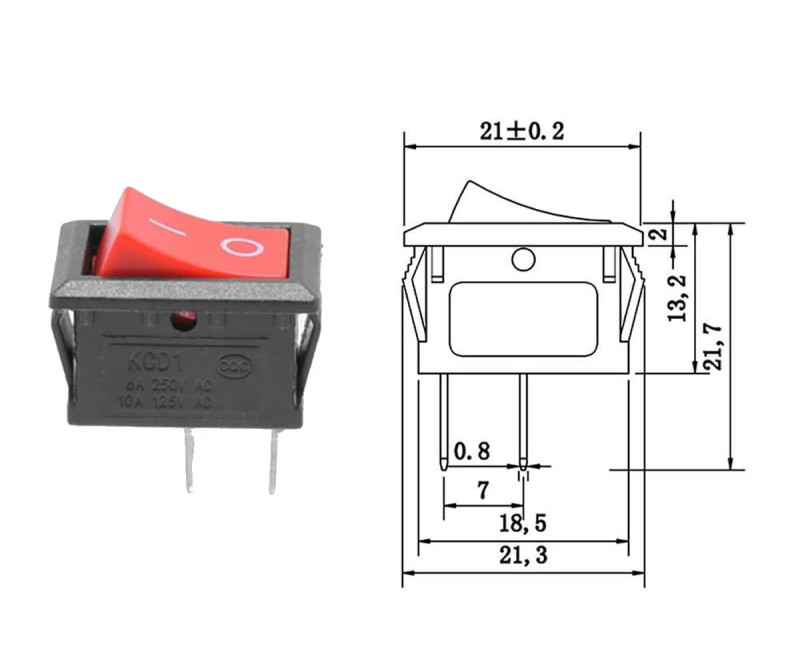

•     Dimensions: 21mm x 15mm x 21,7mm
•     Weight:  3gr

Package contents:

•     1 Piece 2 Pin Switch Red Kcd1
