5V Capacitive Touch LED Dimmer

5V Capacitive Touch LED Dimmer

DC 2.4V / 5V  0.5A Pwm Brightness Control Switch Led Lamp Driver

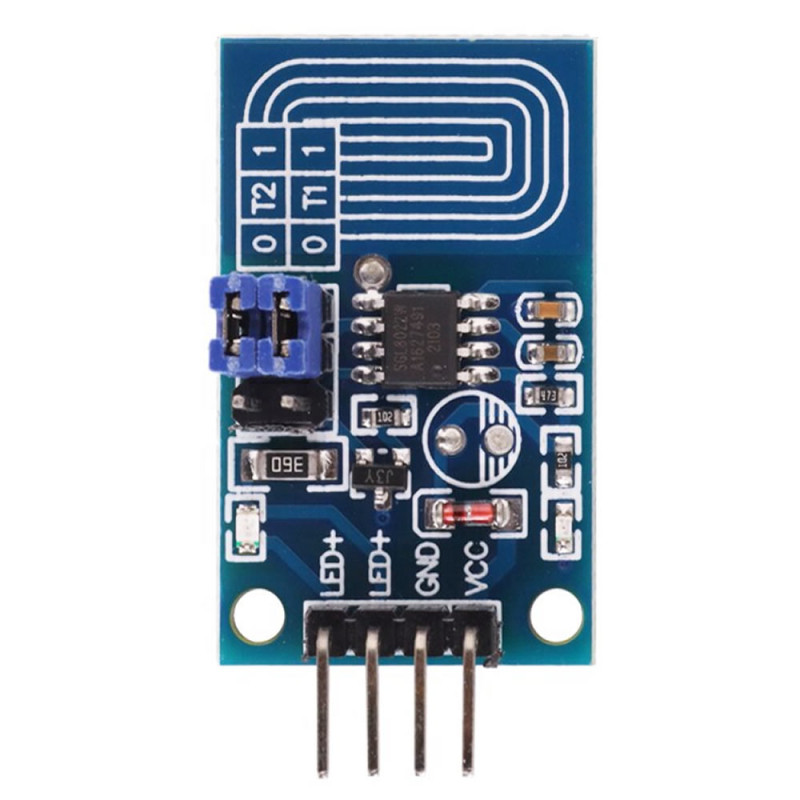

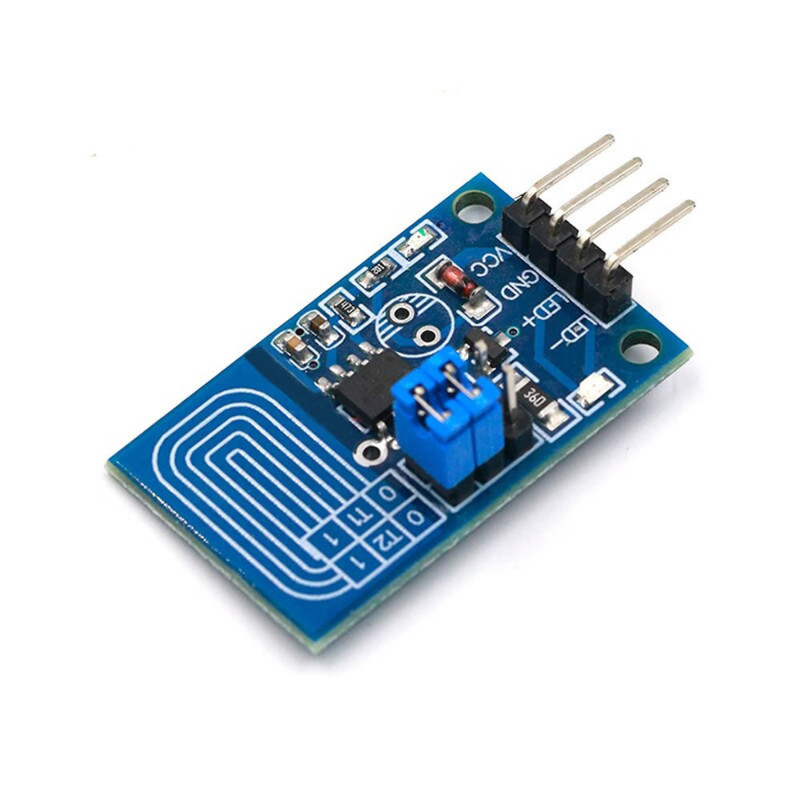

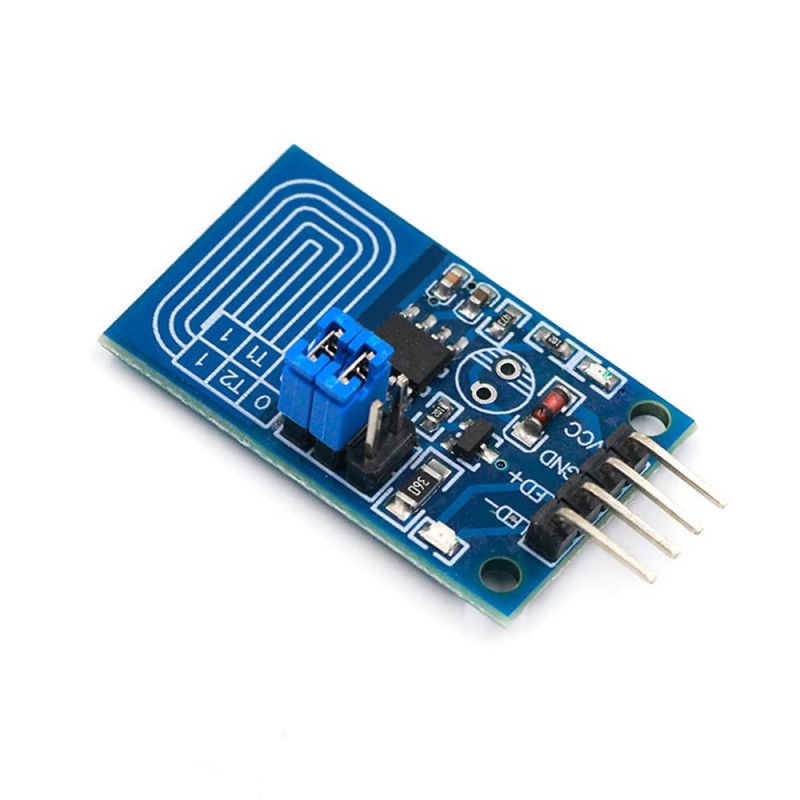

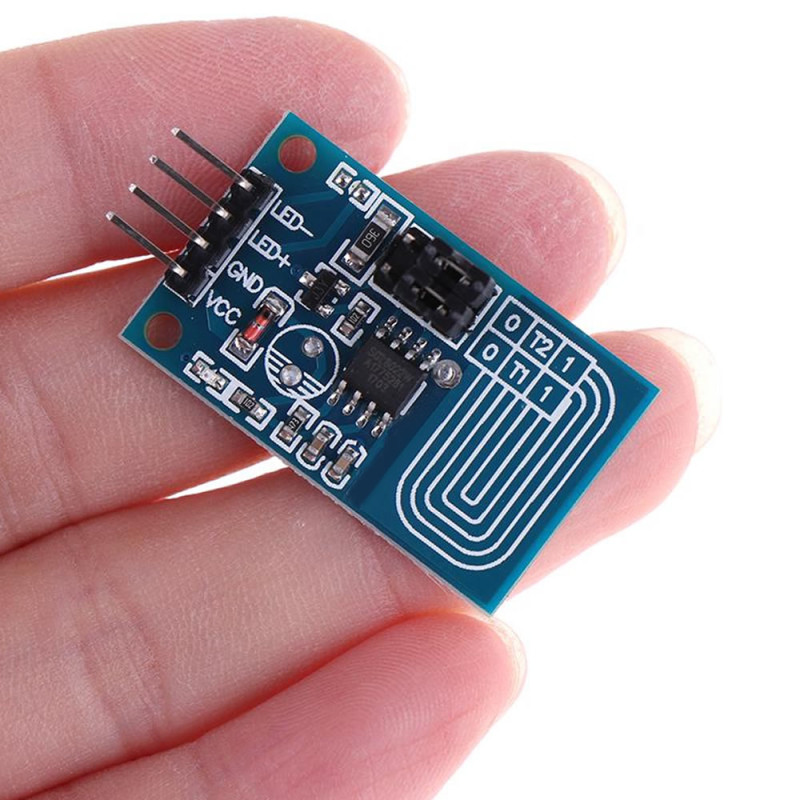

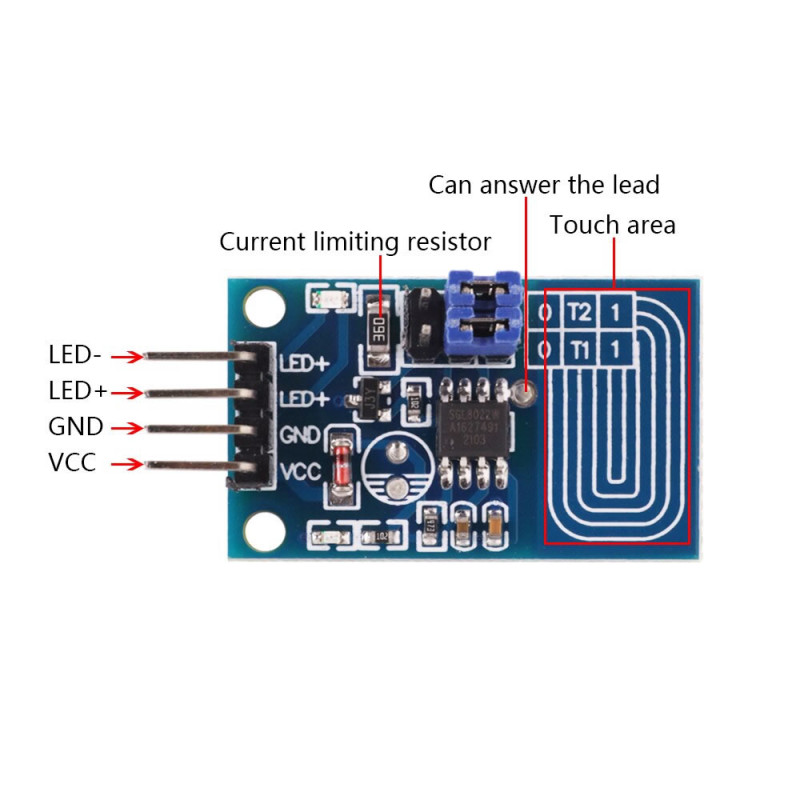

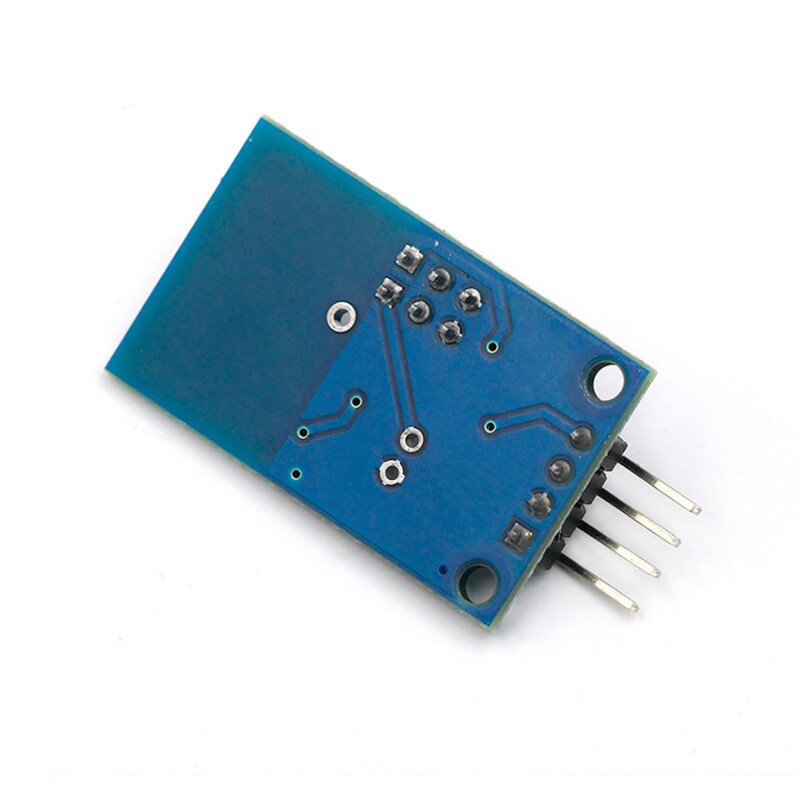

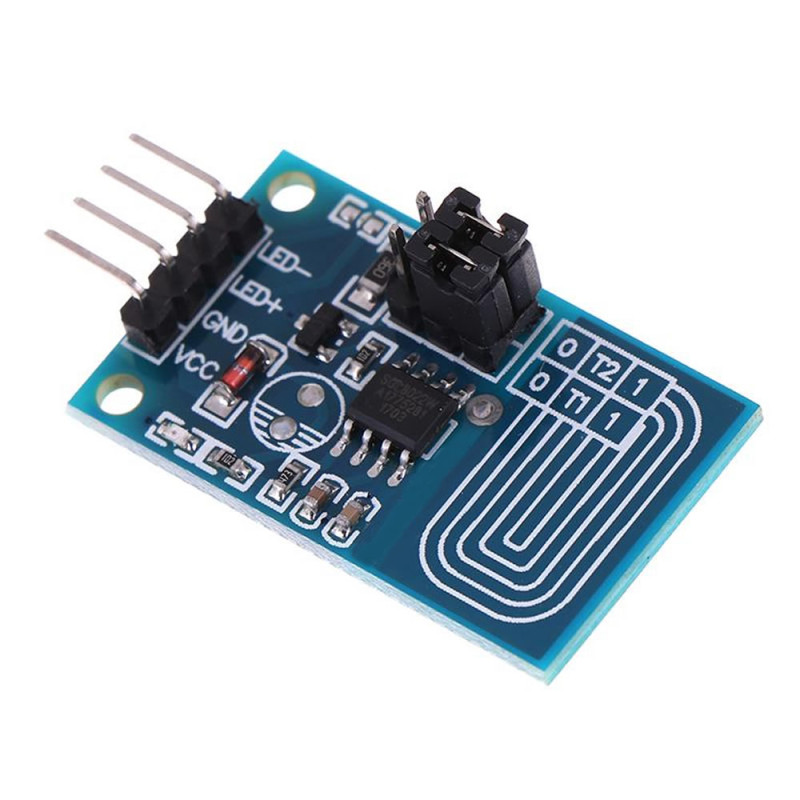

     5V Capacitive touch sensing led dimmer module. It performs the functions of turning the led on and off and adjusting the brightness by touch. It can operate from under protective surfaces such as thin plastic, glass or plexiglass.

     It can operate with a supply between DC 2.5 / 5V. At first operation it turns on with 90% brightness. On a long press the brightness increases. Then the brightness decreases. It stays at the brightness level you left it at.


Features:

• Input voltage: DC 2.5V / 5V
• Output current: 0.5A
• Sensing distance: 3mm
• It can sense from under surfaces such as plastic, plexiglass or glass
• It performs brightness adjustment
• Operating temperature: -10C  /  80C
• Color: Blue

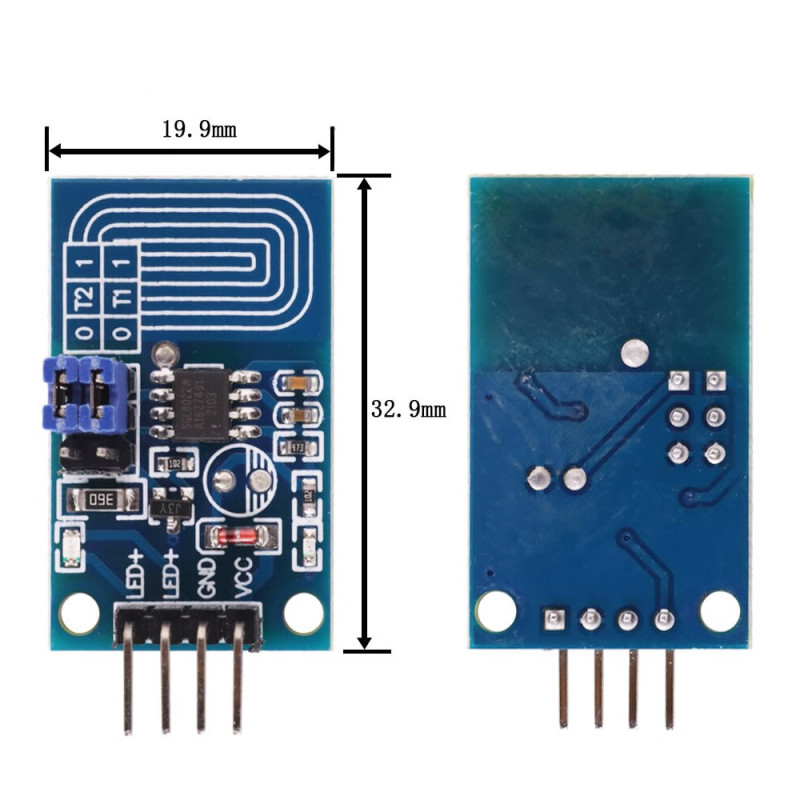

• Size:  20mm x 33mm
• Weight: 4gr.

Package Contents:

• 1 Piece 5V Capacitive Touch LED Dimmer Module
