10-15 Days
3S 1A Lithium Battery Charger Cn330x
316.80TL
Ex Tax: 264.00TL
- Stok Durumu: 10-15 Days
- Marka: OEM
- Model: 3S 1A Şarj Modül Cn330x
- SKU: RBZ.101.242
3S 12.6V 1A Lithium Battery Charger Module
Type C 18650 Li-Ion Battery Step-Up Boost Pda Mp3 Mp4 Camera Bluetooh Toy Mobile Phone Mobile Devices
When the product reaches you, power the product with a usb cable without doing any soldering and check the output voltage. If there is no problem, you can continue with the soldering stage.

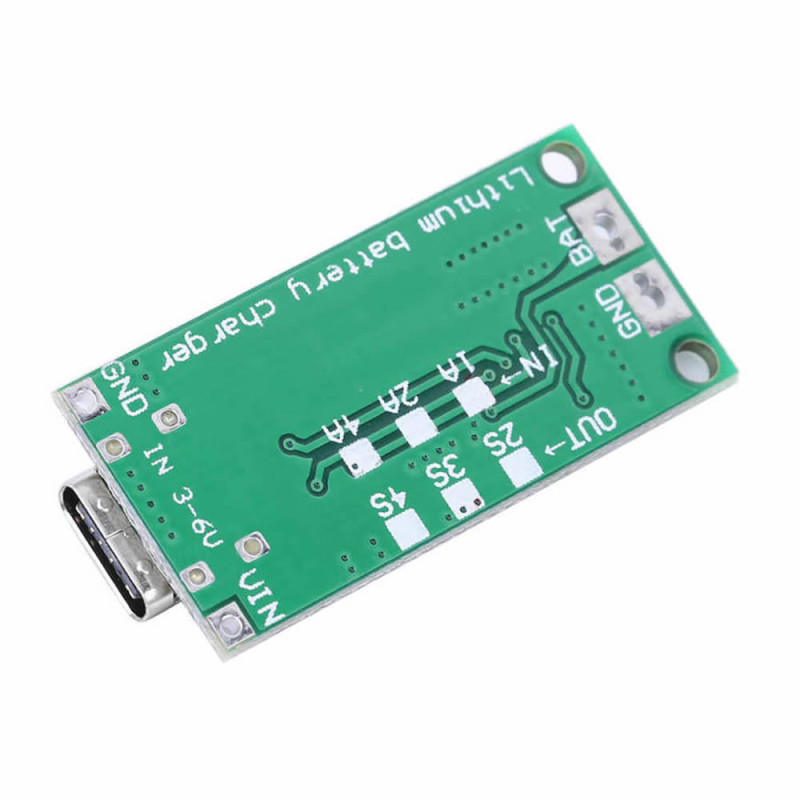

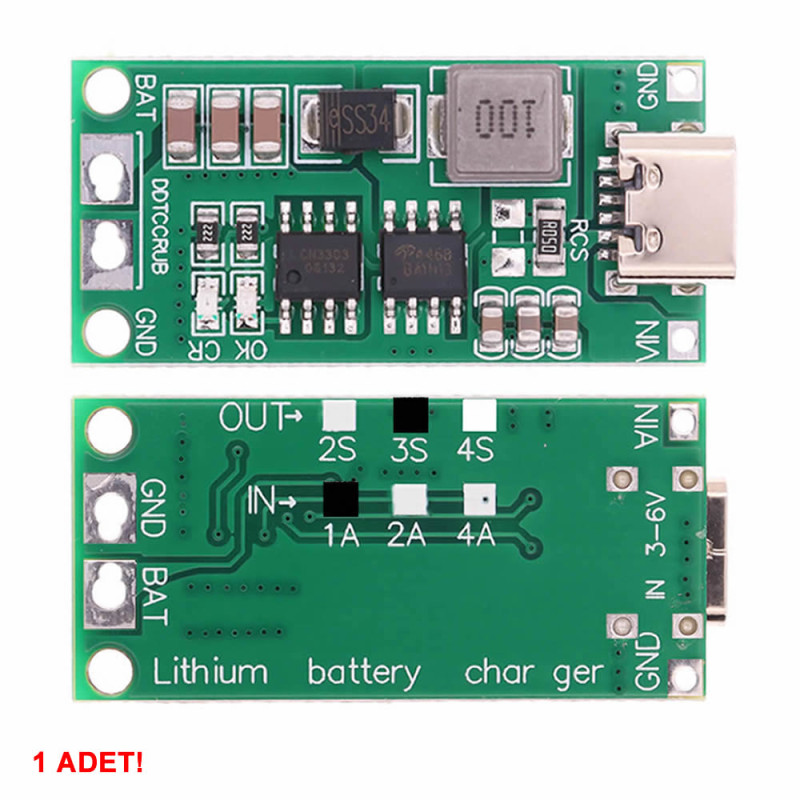

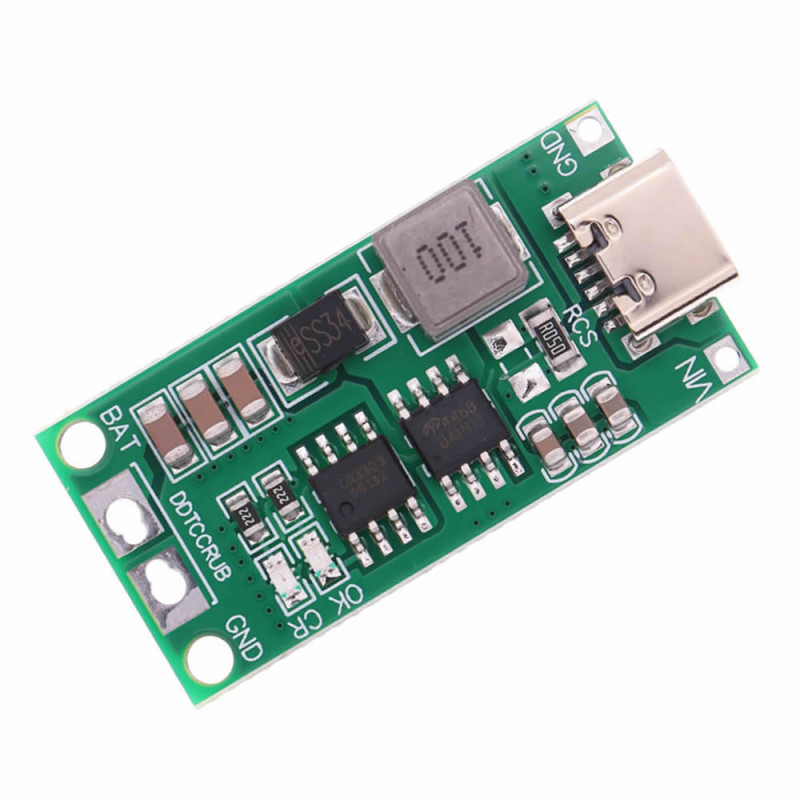

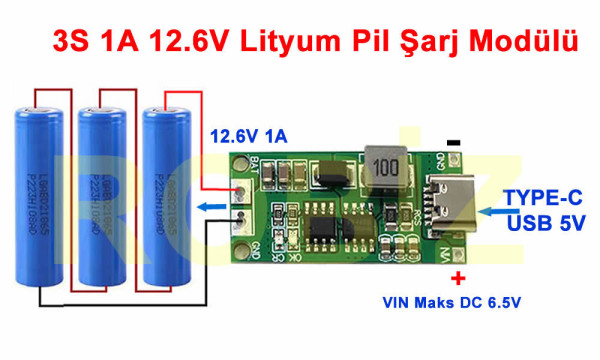

It is a 3S lithium battery charger board. It has 12.6V 1A charging capacity. The board can be powered with 5V coming over the Type-C socket or with a maximum DC 6V supply from the external voltage inputs. It raises the input voltage up to the battery charging voltage. There are 2 indicator leds on the board to show the charging status.
Features:
- 3S 1A charger module
- Input voltage: Type-C 5V / DC 2.7V/6.5V
- Charging voltage: DC 12.6V
- Switching frequency 1MHz
- Battery charging in progress led CR
- Battery charging completed led OK
- Charging technology that reduces voltage losses
- Automatic recharge support
- Battery high voltage protection
- Battery low voltage protection
- Battery short circuit protection
- Color: Green
- Operating temperature: -20C / 85C
- 2 Mounting holes

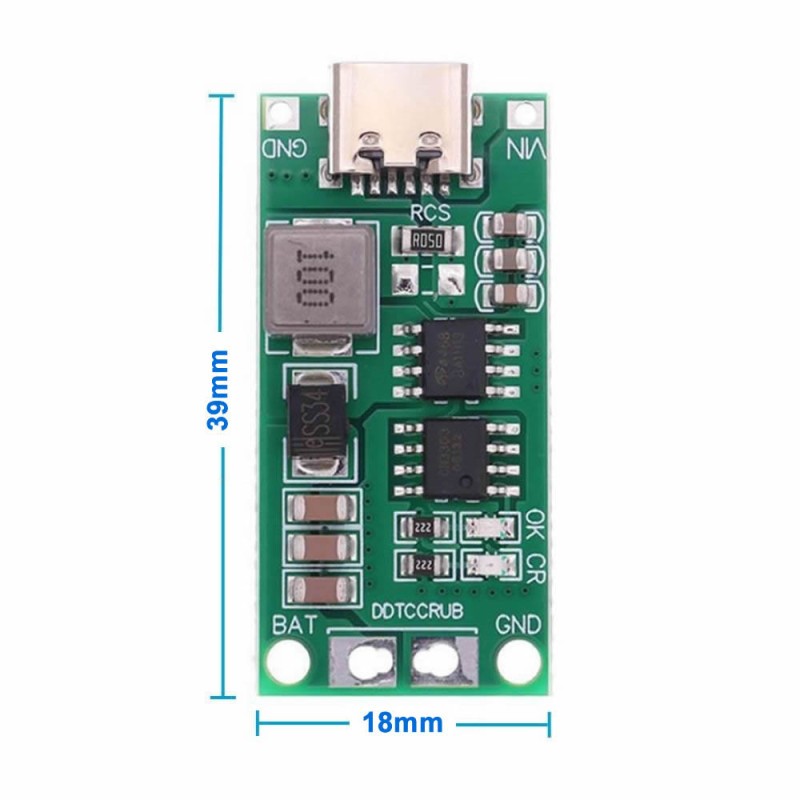

- Size: 18mm x 39mm
- Weight: 5gr
Package Contents:
- 1 Piece 3S 1A Lithium Battery Charger Cn330x
.
