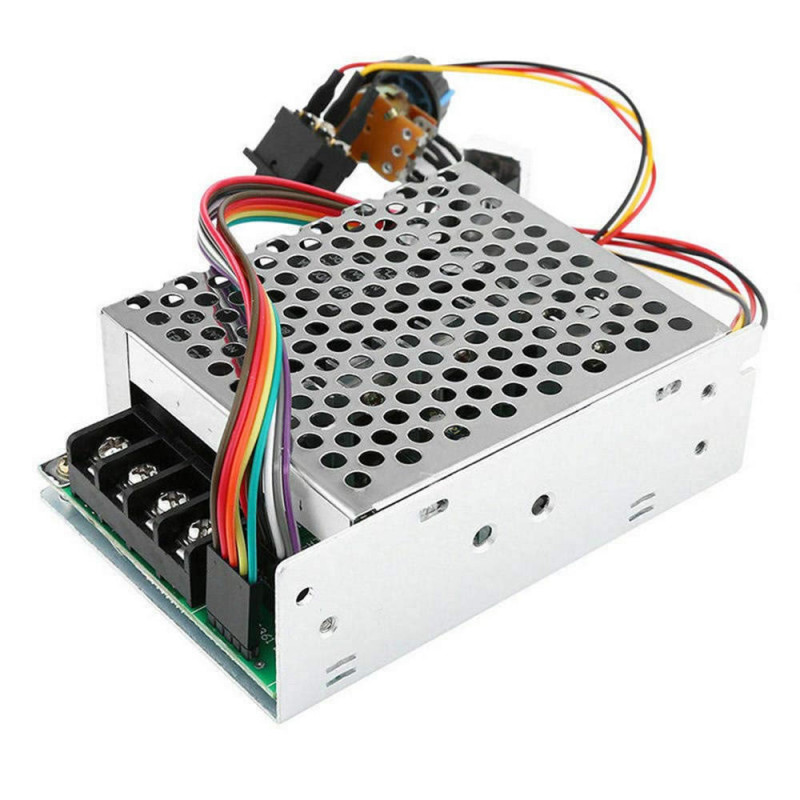

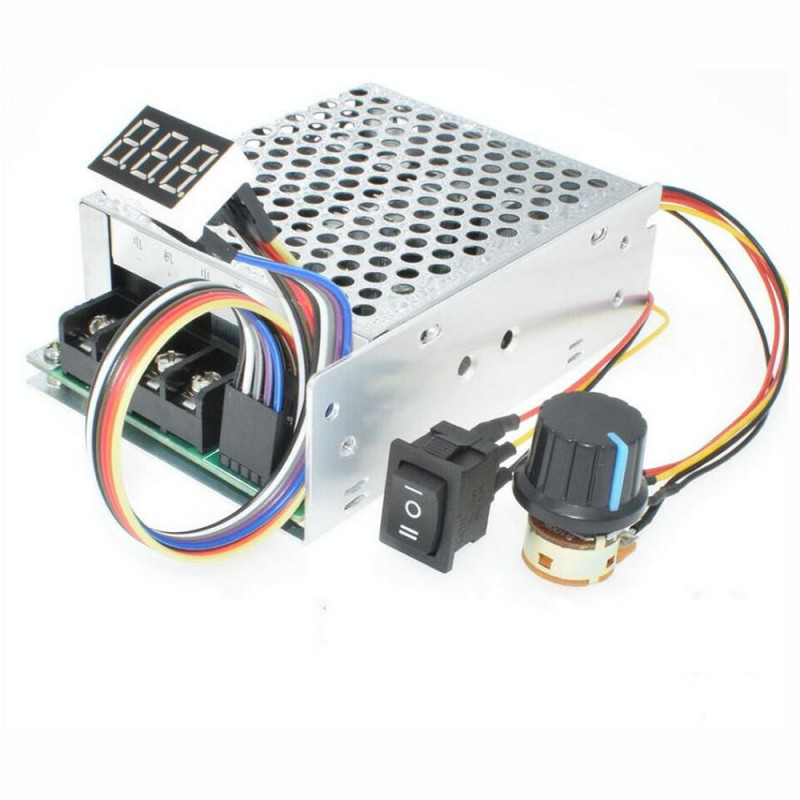

60A 55V DC Motor Speed Control Board

55V 60A Adjustable DC Motor Speed Control Board

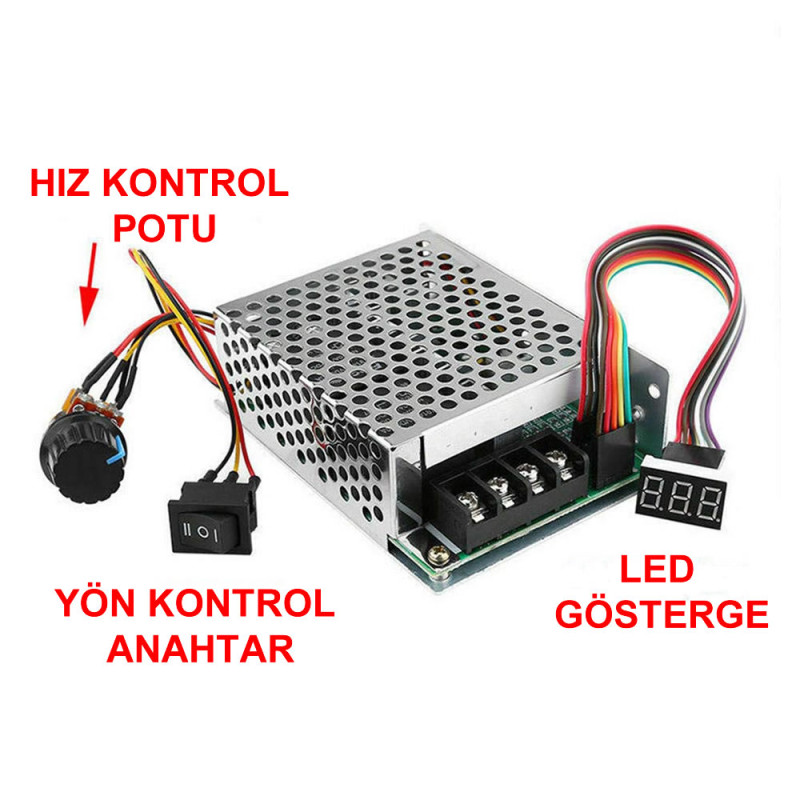

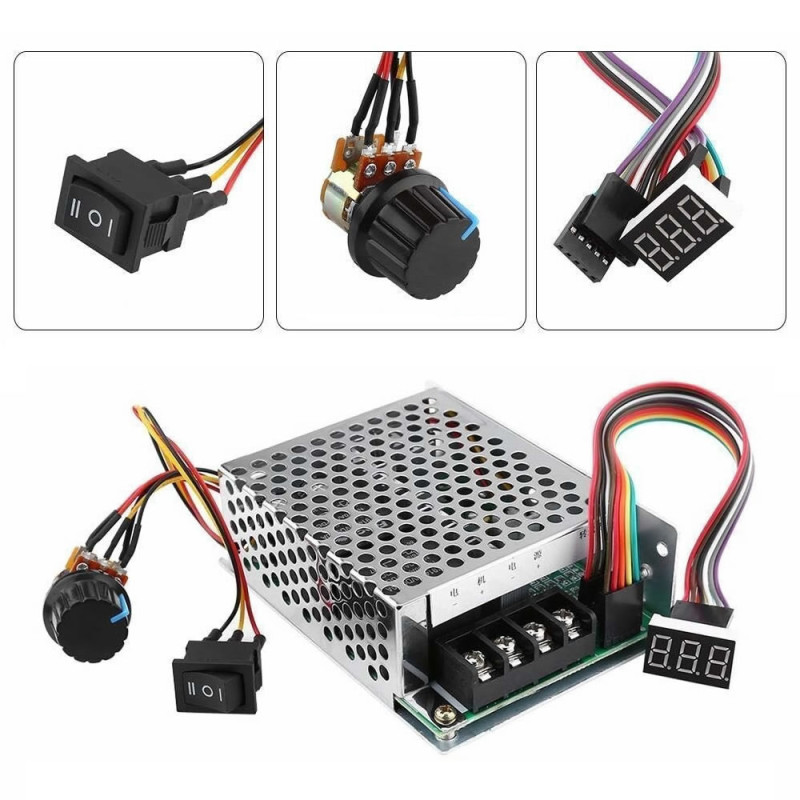

Potentiometer Control Direction Control Switch Led Speed Indicator

     It is a maximum DC 50V 60A motor driver board. The motor speed is adjusted with a potentiometer. You can vary the voltage from 1V below your input voltage down to the 0V voltage level. There is a direction control switch. The direction setting is made via this switch. The load speed can be easily monitored with the speed indicator.

     There is a switch on the potentiometer. After the switch is turned on, the image appears on the screen. The speed setting can be varied from 0% to 100% depending on the turning of the pot. In addition, the motor direction can be changed with the direction control switch.

Features:

• Supply: DC 10-55V
• Current: 60A  ( 40A should not be exceeded in continuous use. )
• Speed indicator.
• Speed setting : 0% - 100%
• Speed adjustment pot 100kohm  ( With switch )
• There is an on off switch on the pot.
• High power forward reverse speed control board.
• Direction selection switch  and 2 pcs high current relays inside the board .
• Forward, reverse and stop selection switch
• Supports brushed motor.
• Operating frequency: 15Khz

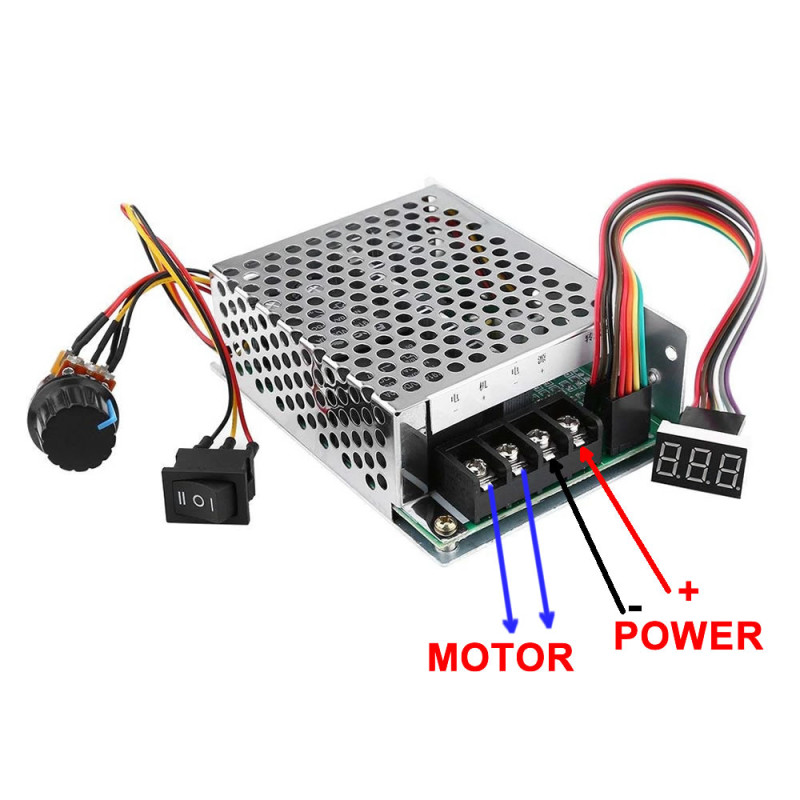

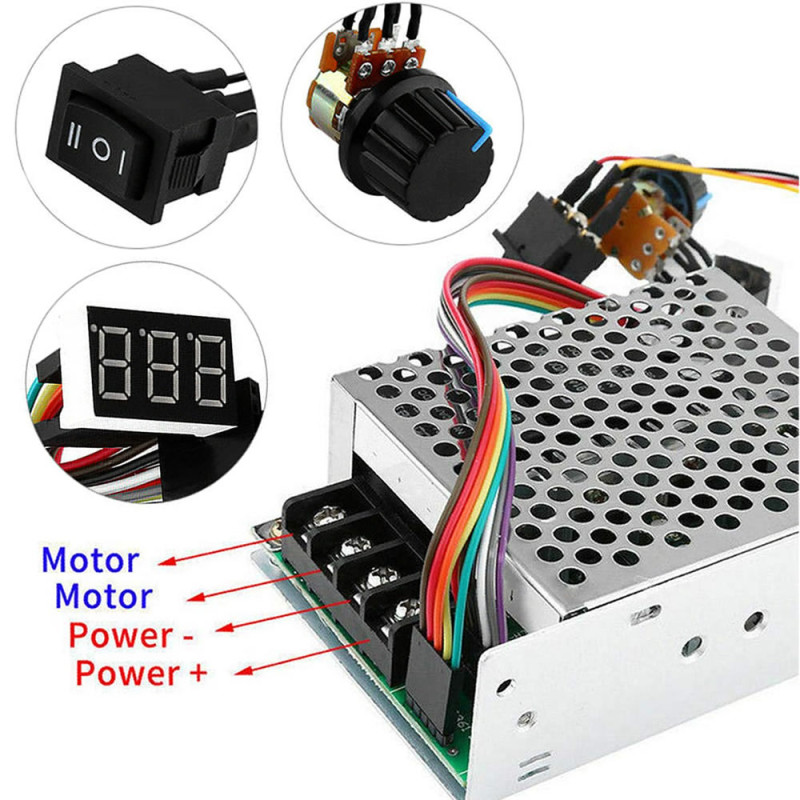

• Terminal block sockets for voltage input and output.
• Supply indicator led.

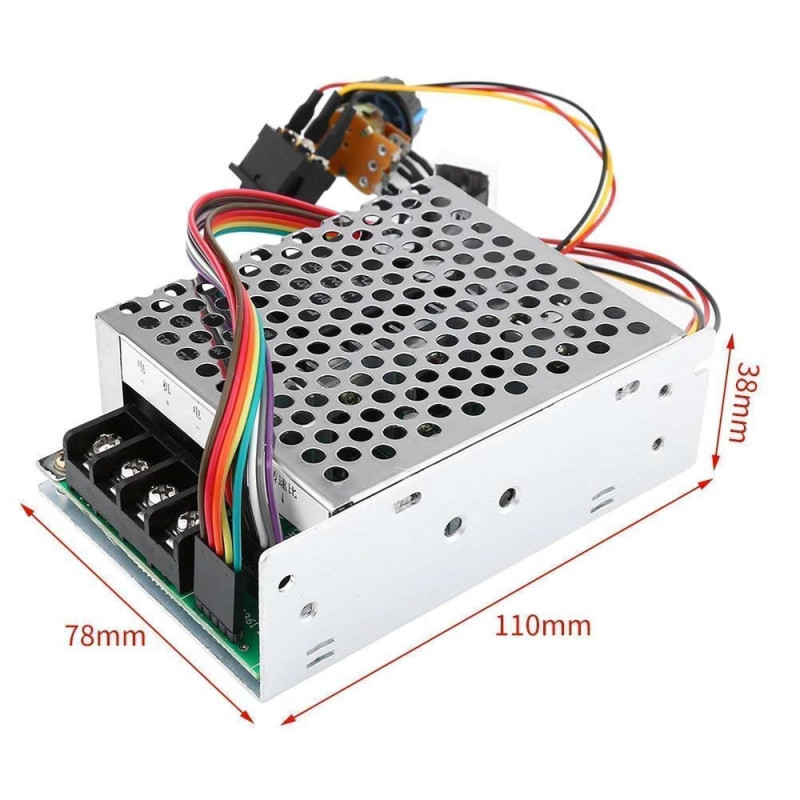

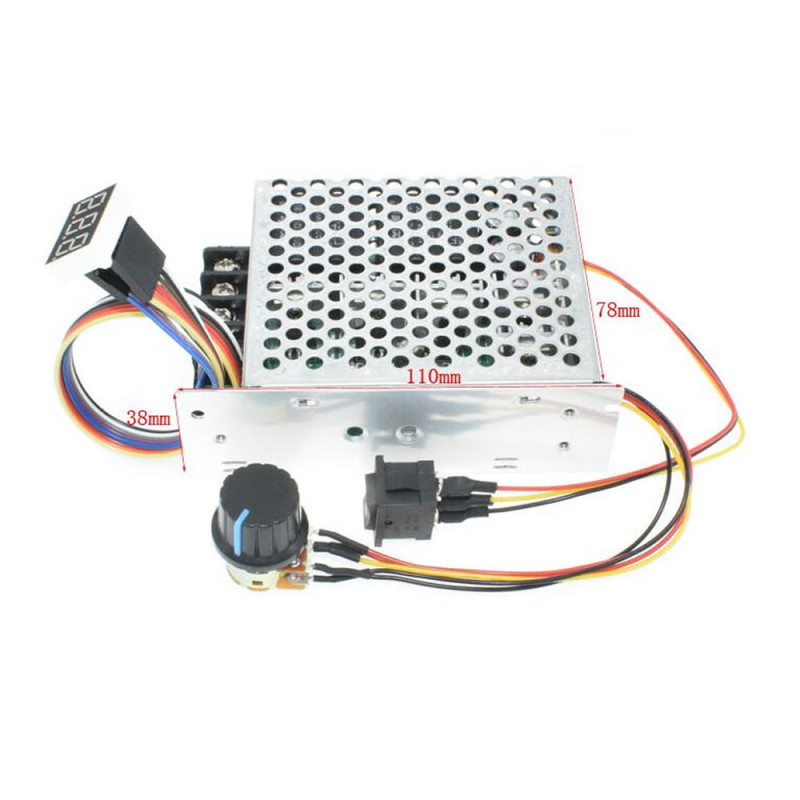

• Dimensions: 110x78x38 mm
• Weight: 245gr

Note:

•     The product does not work with 220V. If you apply 220V the product will be damaged.
•     The output voltage cannot be higher than the input voltage.

    Package Contents:

• 1 pcs 60A 55V DC Motor Speed Control Board
