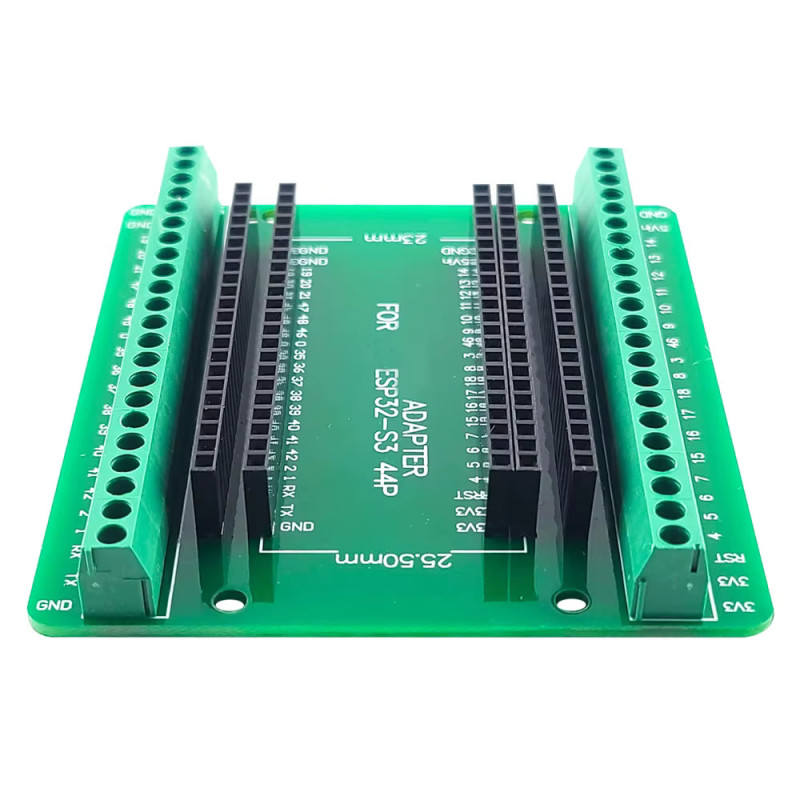

Esp32 Expansion Board Terminal Block Socket

Esp32 Expansion Board Terminal Block Socket Board

Esp32-s3 44 pin Fast Prototyping Easy Connection 25.5mm 23mm Pin Pitch Kit Compatible

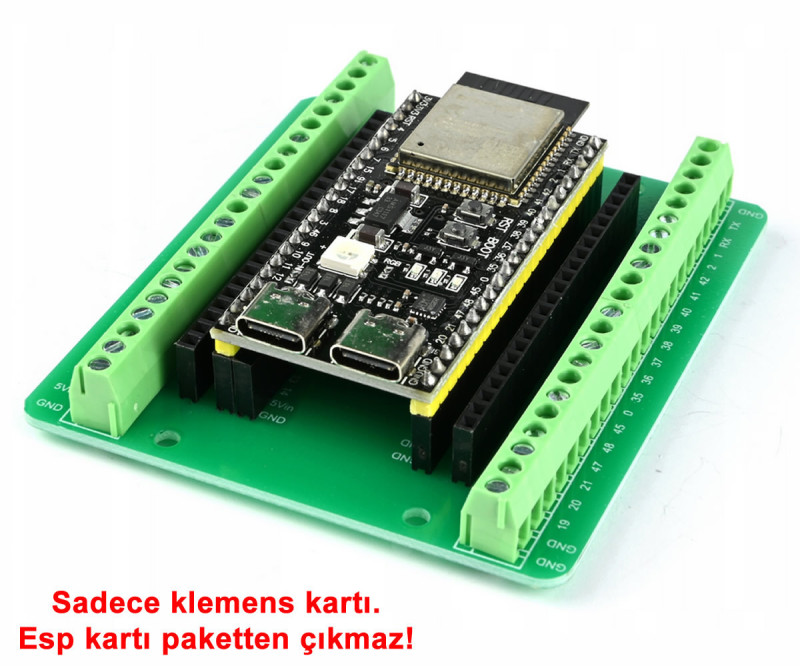

     It is an expansion board designed for ESP boards. It can be used with kits up to 44 pins. Kits with 25.5mm and 23mm pin pitch can be used on this board. It can be used together with the Esp32-s3 kit. For other kits, check the compatibility of the pin pitches.

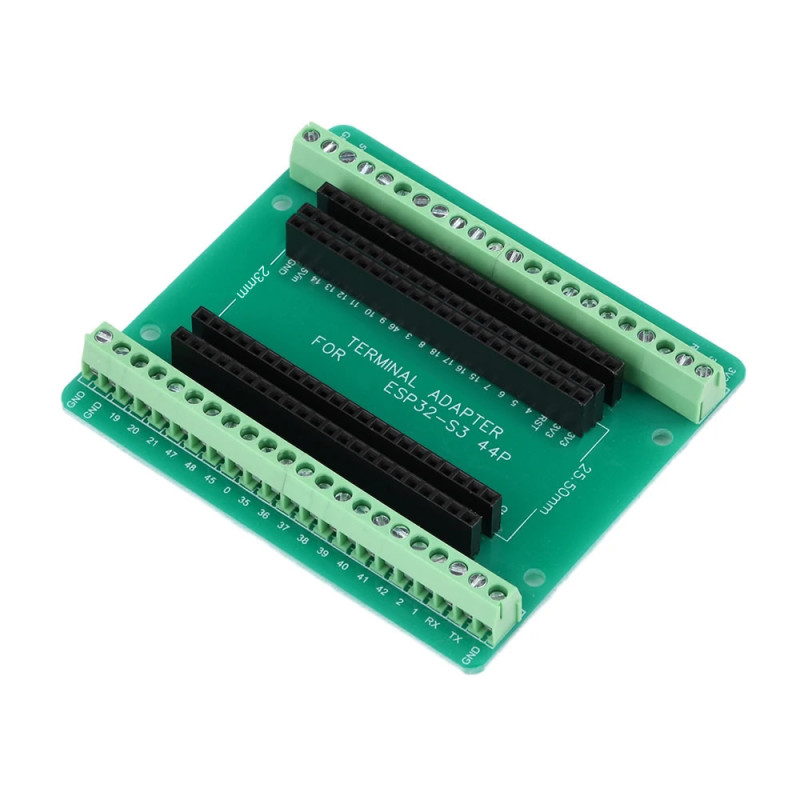

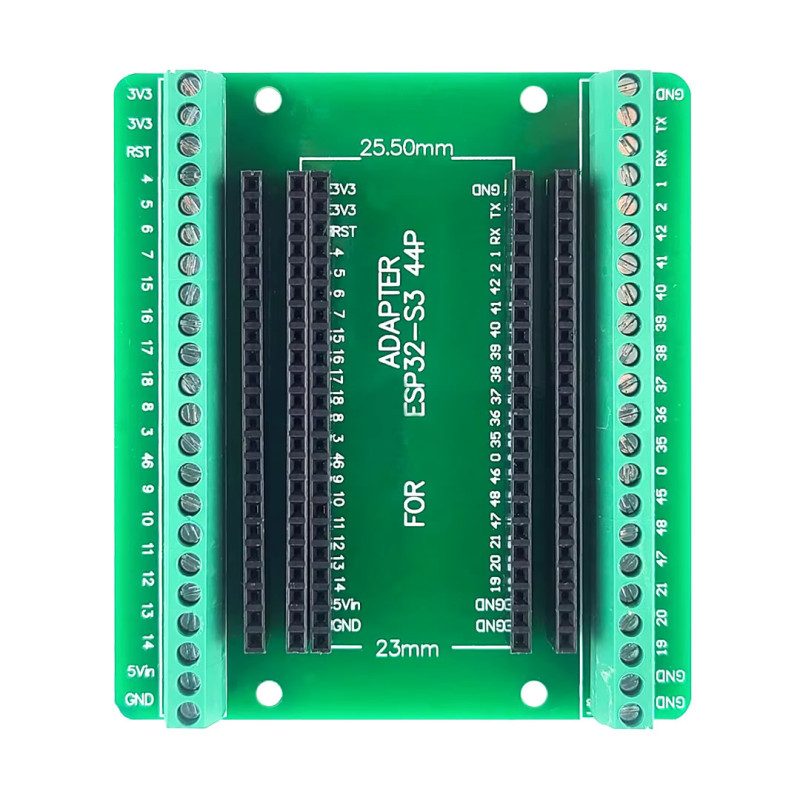

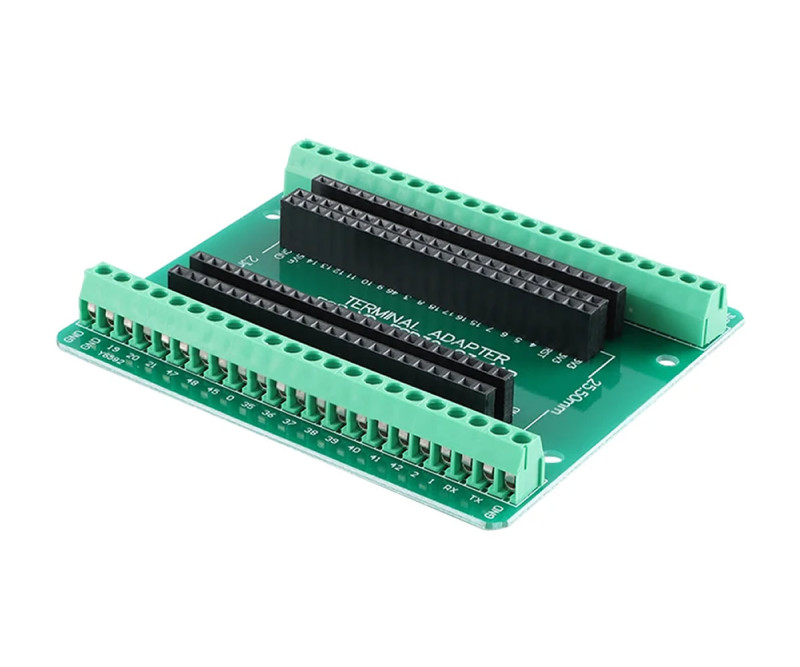

     There are 3 female headers of 22 pins that serve as sockets where the kit can be mounted. Next to these headers there are 2 more female headers. External connections can be made through these headers. There are terminal block sockets on the outermost edges. These sockets allow fast connection without soldering.

Features:

•     Esp32 Expansion Board Terminal Block Socket
•     5 soldered 22 pin female header sockets
•     2 pieces of 22 pin terminal block socket.
•     Easy assembly
•     Header pin pitch: 2.54mm / 100mil
•     Operating temperature:  -40C  / 65C
•     4 mounting holes

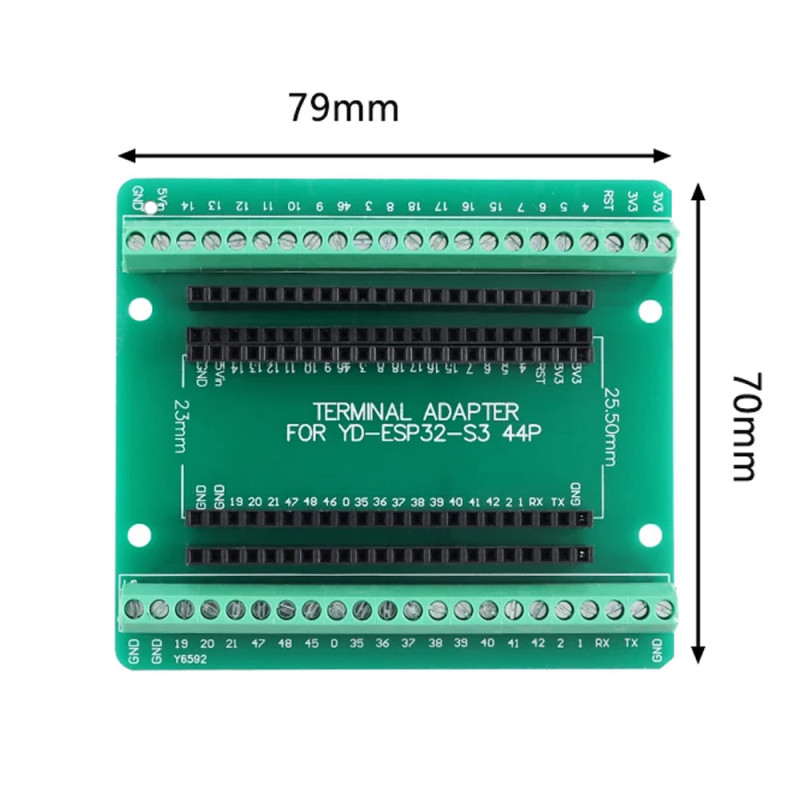

•     Size:   70mm x 79mm
•     Weight: 42gr

Package contents:

• 1 Piece Esp32 Expansion Board Terminal Block Socket

.
