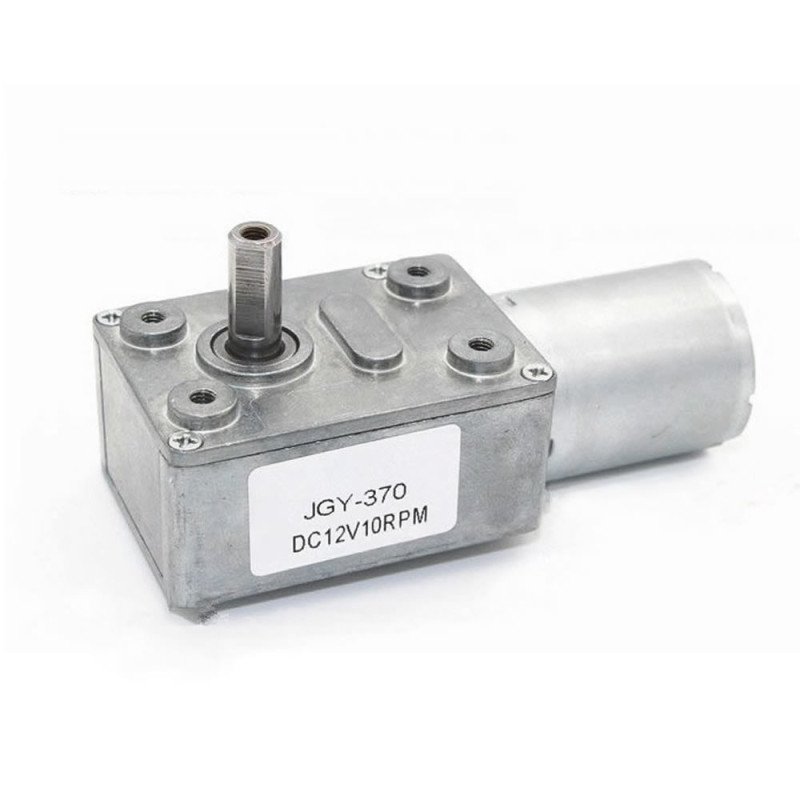

12V 10Rpm JGY370 Gear Motor DC
518.40TL
Ex Tax: 432.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: JGY370 10Rpm
- SKU: RBZ.100.769
JGY370 DC 12V 10 Rpm Gear DC Motor
2 Direction Rotation L Type 15kg.cm High Torque Metal Gear Automation Window Door Curtain Rotating Display Cabinet Product Coffee Machine Towel Damper Robot Car
DC 12V gear dc motor with L type shaft. It has high torque power and low speed. It can rotate in two directions. It has a lock mechanism so that it does not rotate in the opposite direction of the electrically set direction. It is widely used in many areas such as automation, window, door, curtain, rotating, display cabinet, product, coffee, machine, towel, damper, robot, car etc.
Features:
- Model: JGY370 L Type Shaft
- Operating voltage: DC 12V ( 6V / 18V )
- No-load current: 0.06A
- Load current: 1A / 2A
- No-load speed: 10 rpm ( makes 10 full turns in 1 minute ) ( DC 12V )
- Torque: 15kg.cm
- Shaft Type: D Type
- M3 type connection can be made to the shaft. ( If you are definitely going to use it, confirm this feature by asking a question. This feature may not be present in some batches.)
- Material: Metal
- Operating temperature: -20C / 80C
- Dimensions: 32mm x 80mm ( picture number 8 )
- Shaft size: 6mm ( D:5.5mm ) x 14mm
- Weight: 150gr
Package Contents:
- 1 Piece JGY370 12V 10 Rpm Gear DC Motor
.
