Rotary Encoder Module
57.60TL
Ex Tax: 48.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: KY-040 Modül
- SKU: RBZ.100.903
KY-040 Rotary Encoder Module
20 Pulse Pwm 360 Degree Rotary Push Button Encoder Digital Potentiometer Menu Motor Speed Adjustment Control Power Supply Automation Medical
It is a sensor whose rotation speed we can measure with a pwm signal. It produces 20 pulses in 1 full turn. The rotation angle is calculated by counting the pulses. It is widely used in various applications such as motor speed control and menu adjustment. It has a button function. It works with DC 5V. It has 2 mounting holes.
Features :
- Operating voltage: DC 5V
- Rotation angle: 360 Degrees
- Step count 20 pulses
- Push button feature

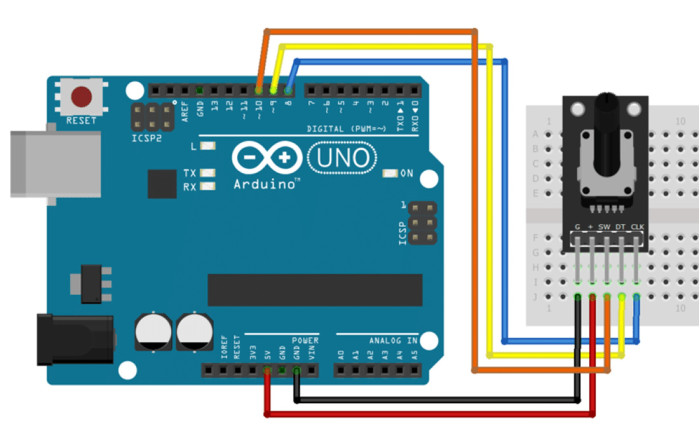

- Arduino compatible
- Different output for clockwise and counterclockwise rotation

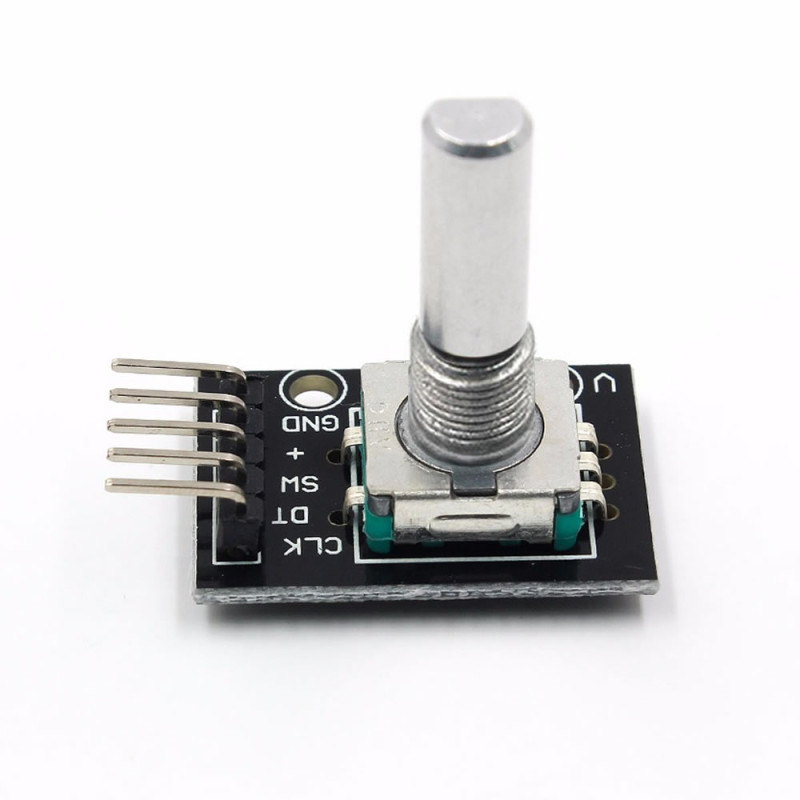

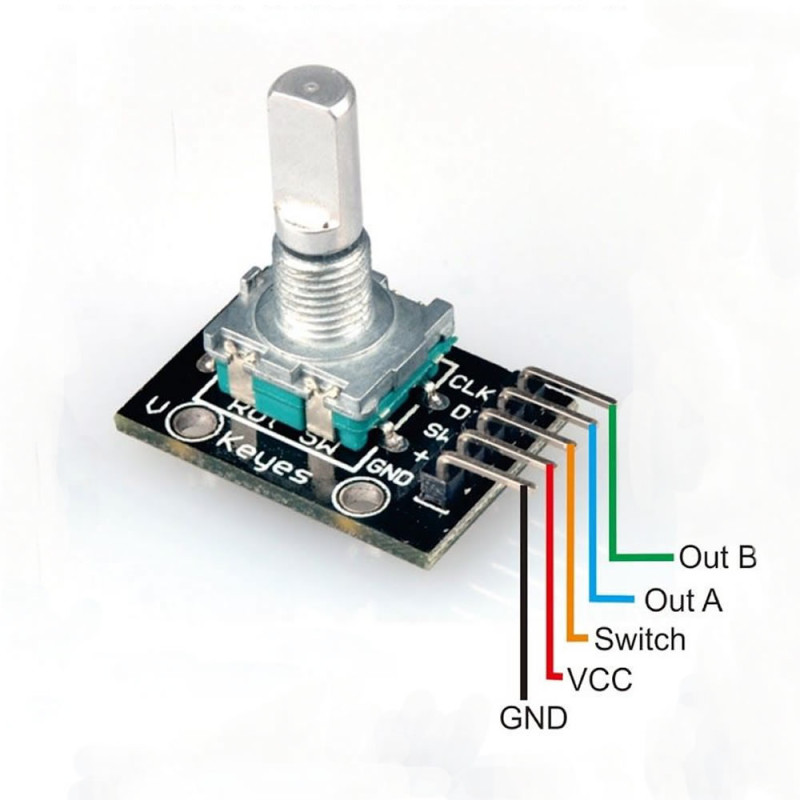

- 5 Pin male header connection socket
- Rotation life: 30000 turns
- Switch life: 20000
- Operating temperature: -10C / 85C
- Color: Black / Gray
- 2 Piece module mounting hole
- Shaft length 20mm
- Shaft diameter: 6mm

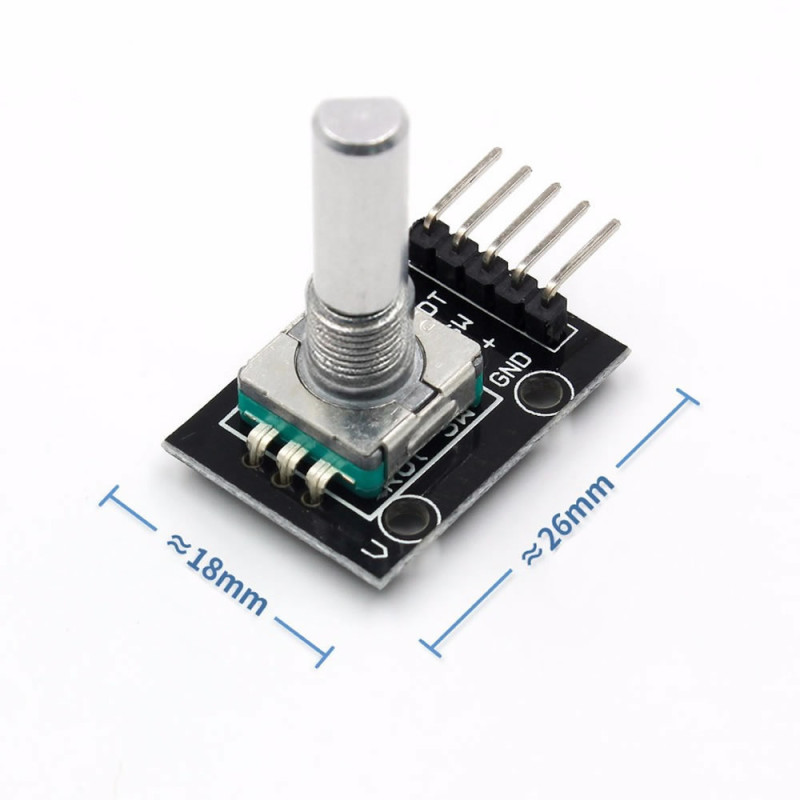

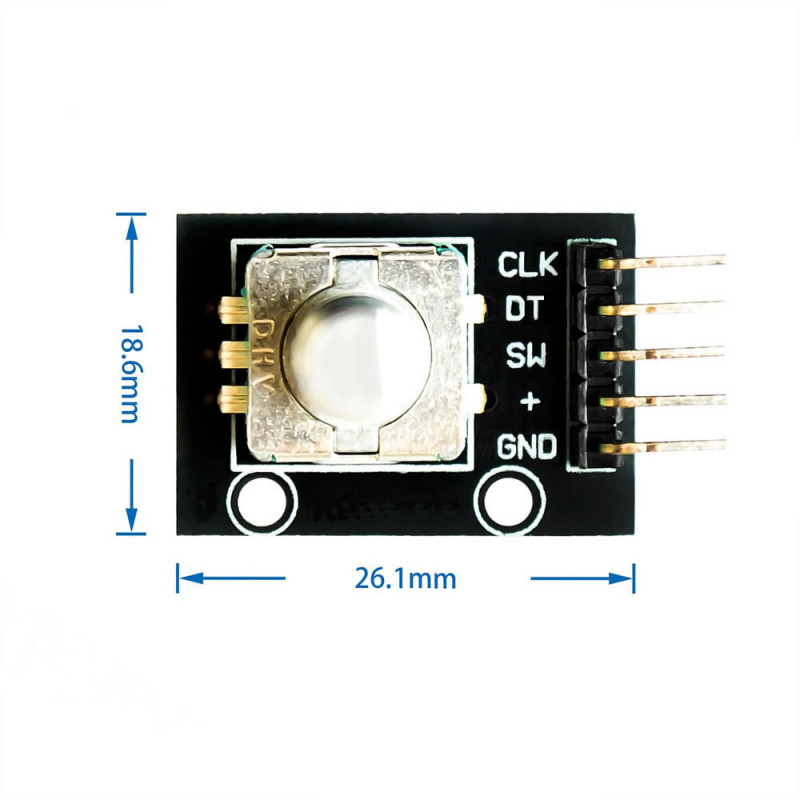

- Dimensions: 18mm x 26mm x 30mm
- Weight: 7gr

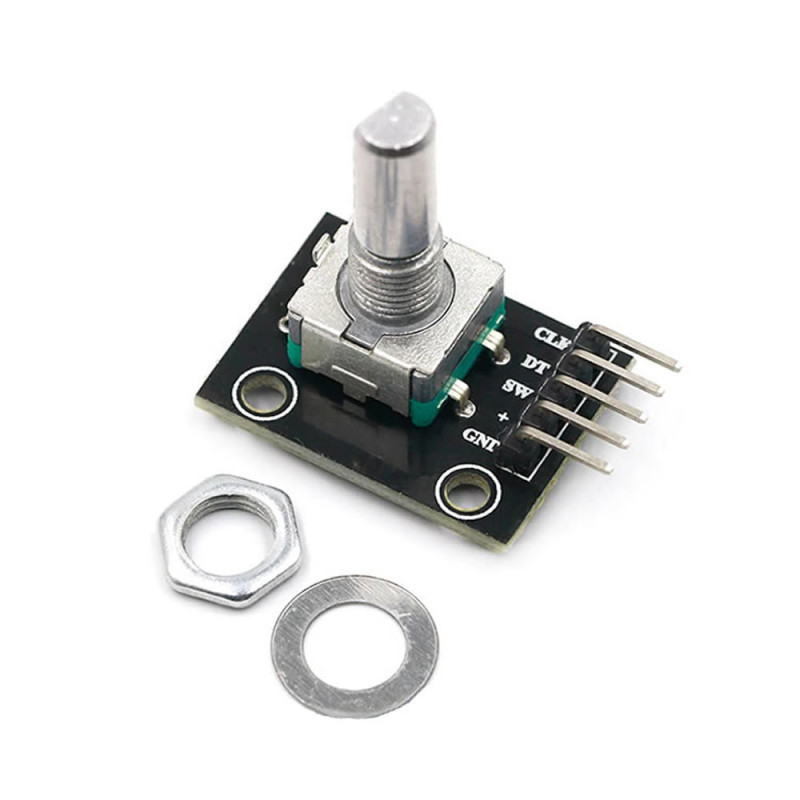

Package contents:
- 1 Piece Rotary Encoder Module
- 1 Piece Nut and washer
