Nuvoton Nu-Link ICP Programmer

ARM Cortex M0 M4 Nu Micro Emulator Swd Uart Downloader Online Offline Mass Production Debugger Mini Usb

No technical support will be provided regarding the use of the product.

     It is a Nuvoton icp swd programmer. It has debugging, programming and mass production offline programming functions. It can perform fast programming. With its small structure it is very easy to carry. It is preferred with its affordable price that can be used continuously in programming operations.

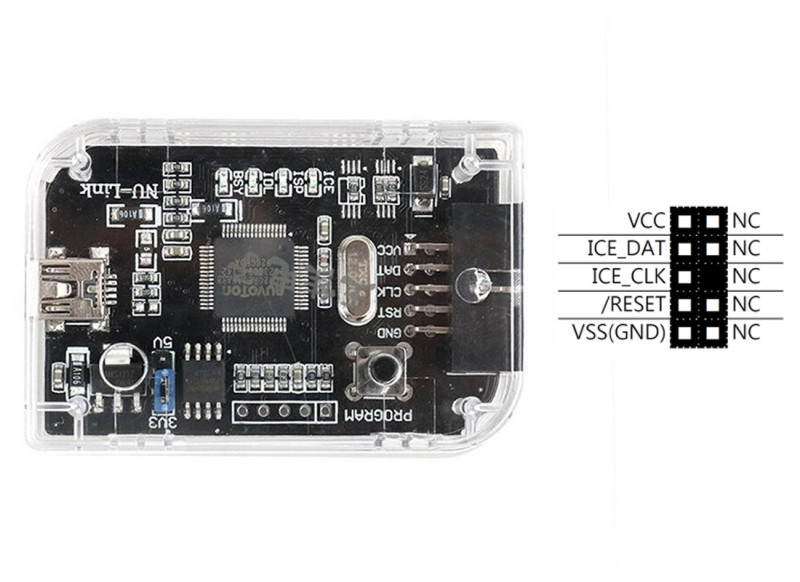

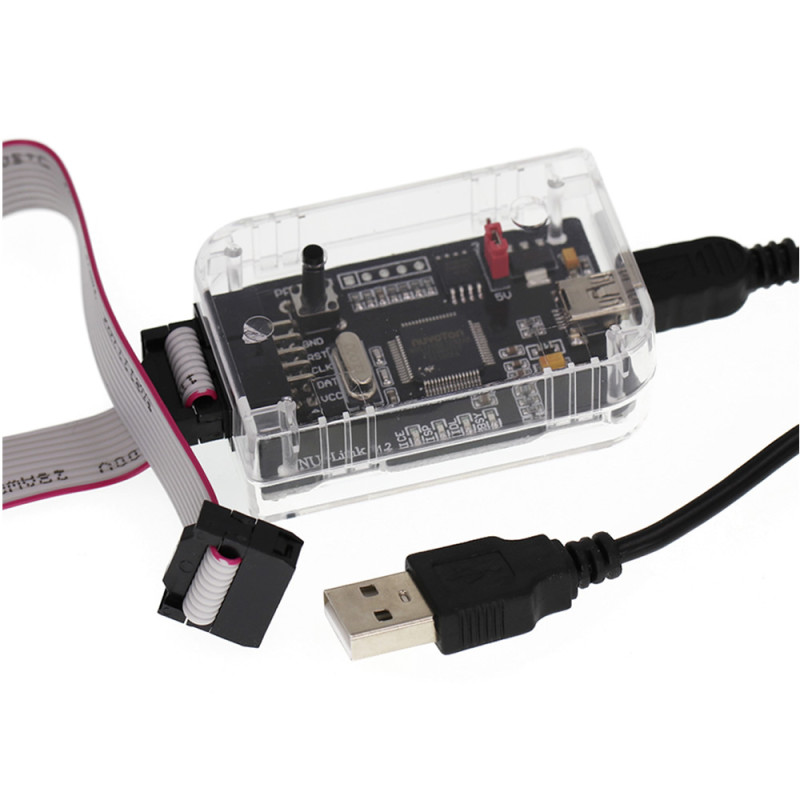

     It connects to the pc over a mini usb cable. There is a 3.3v 5v selection jumper for the target supply voltage. It connects to the target over a 2x5 pin socket.

Features:

• Nulink jtag programmer
• Usb hid plug and play support,
• ARM Cortex-M0 M4 chip support
• Nuvoton ICP support
• NuMicro. N76E003 / N76E616 / N76E885 support
• Swd debug support
• KEIL, IAR, CoIDE ide supports
• Flash breakpoints, regardless of the code in RAM or ROM, can use unlimited breakpoints, not limited by the number of breakpoints of the Cortex chip.
• Support reading and writing memory, terminal emulation and serial debugging output while the program is running
• Automatic firmware update
• Operating system: Win 7 10 11 /  32-bit, 64-bit
• NuMicro chip support:  M0-M4 MCU T1-8051 / N76E003 / N76E616 / N76E885 families
• Xintang chip support
• Mini usb pc connection socket
• 4 indicator leds
• Program button

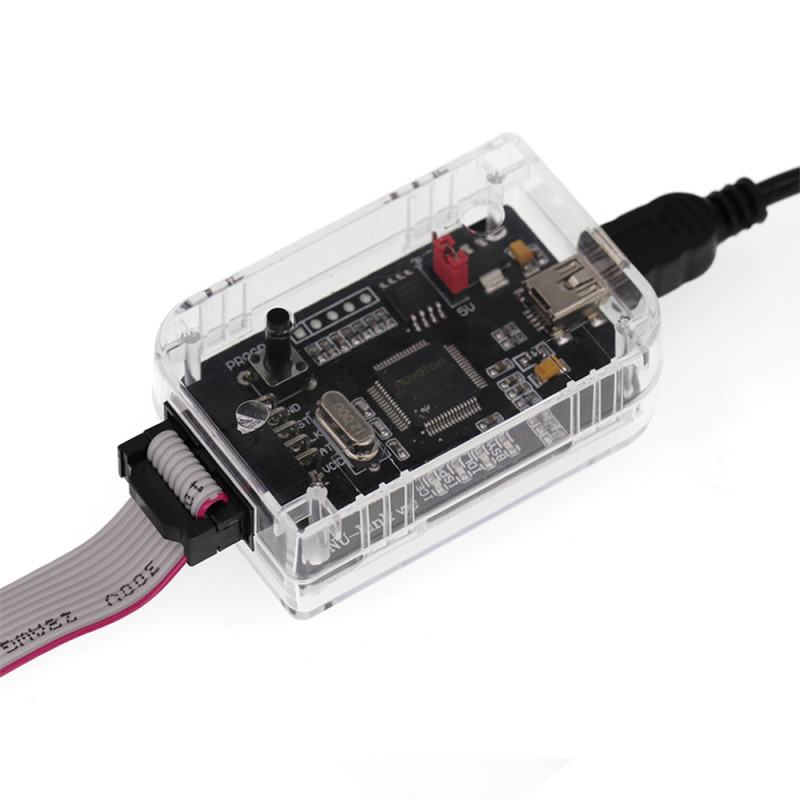

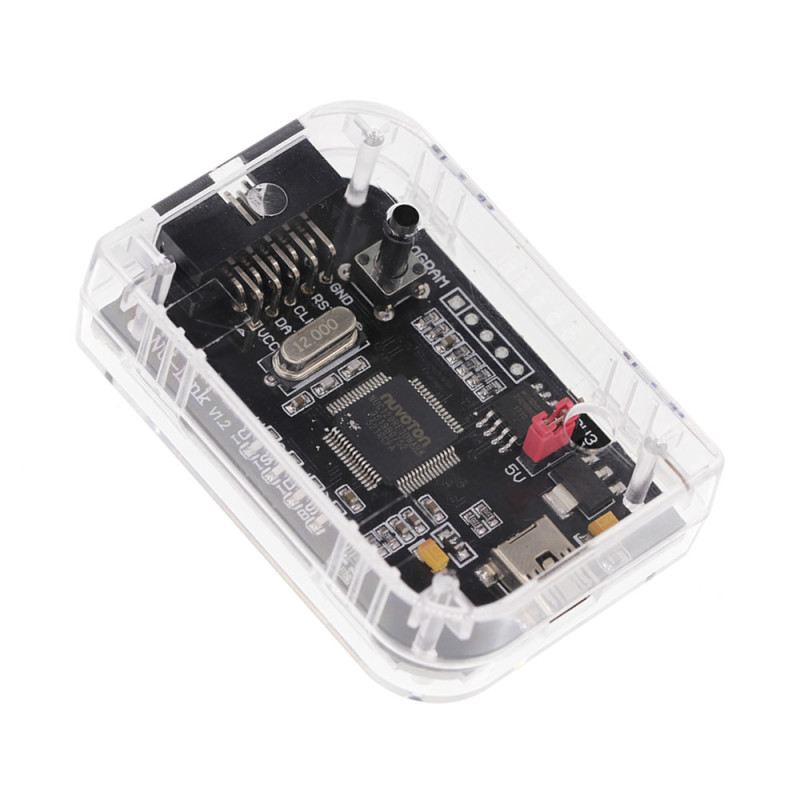

• Transparent plastic box
• Vcc selection jumper DC 5V / 3V
• Dimensions:  40mm x 60mm
• Weight:  25gr

Software:

• nuvoton.com/tool-and-software/debugger-and-programmer/1-to-1-debugger-and-programmer/nu-link/
• Driver:   nuvoton.com/resource-download.jsp?tp_GUID=SW1120200221180521
• ICP Programming ToolV2.04     nuvoton.com/resource-download.jsp?tp_GUID=SW1720200221181328

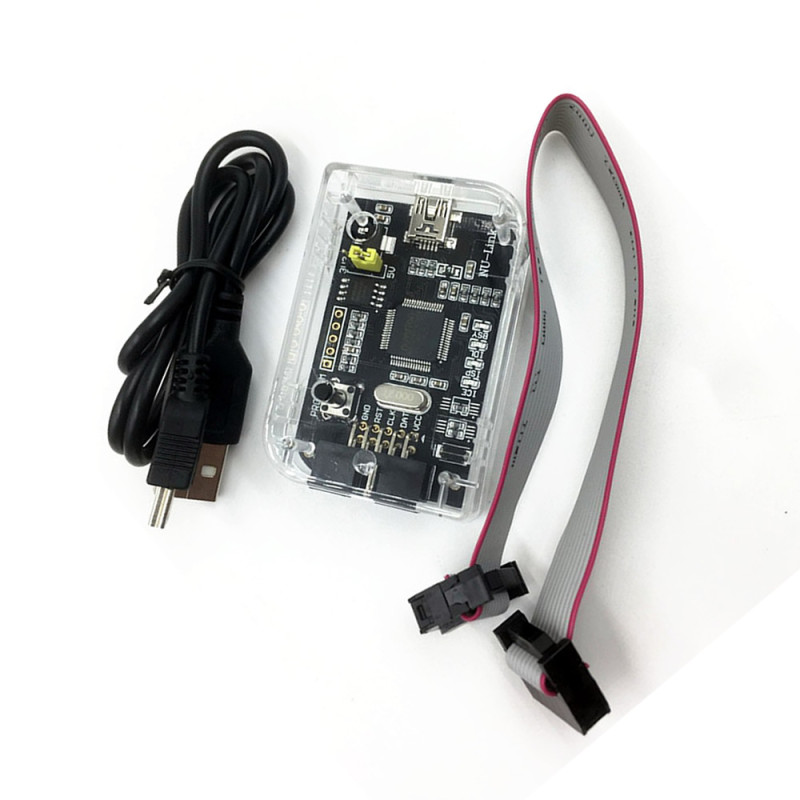

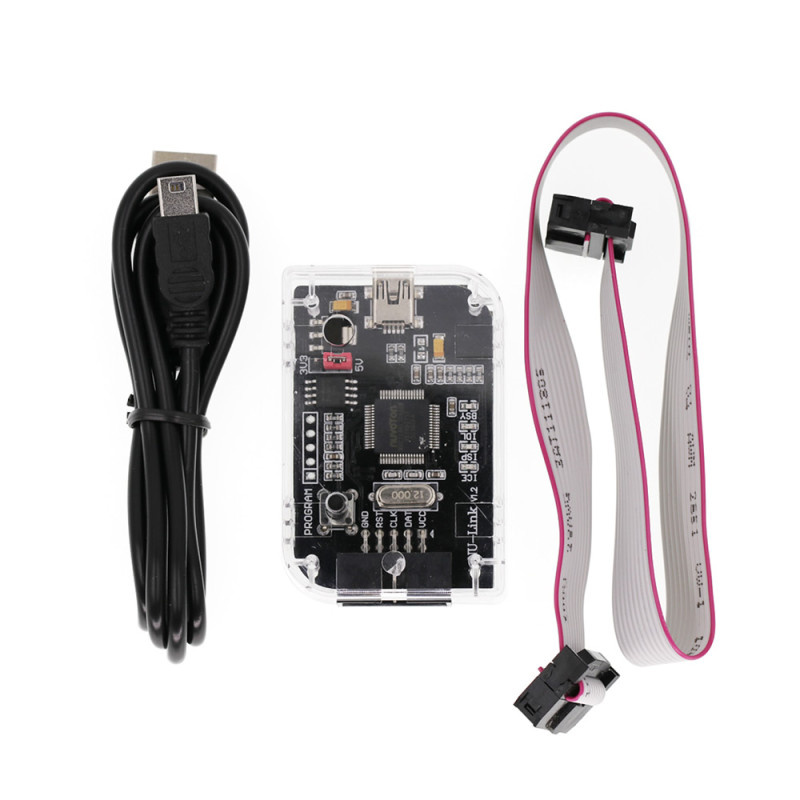

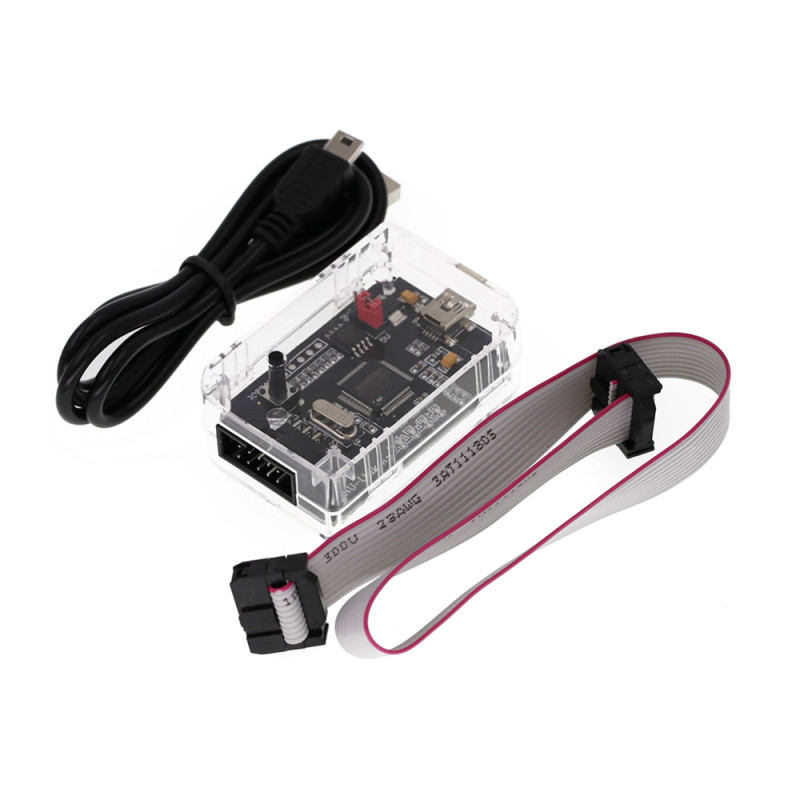

Package contents :

• 1pcs Nu-link Jtag Programmer

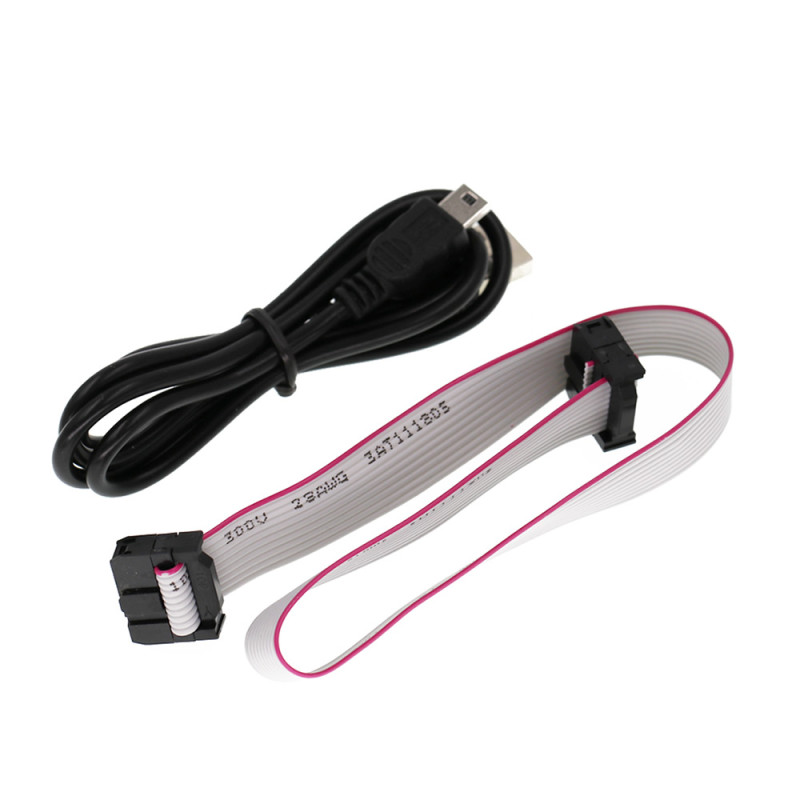

• 1pcs 2x5 pin 20cm IDC Flat Cable
• 1pcs Mini usb cable

.
