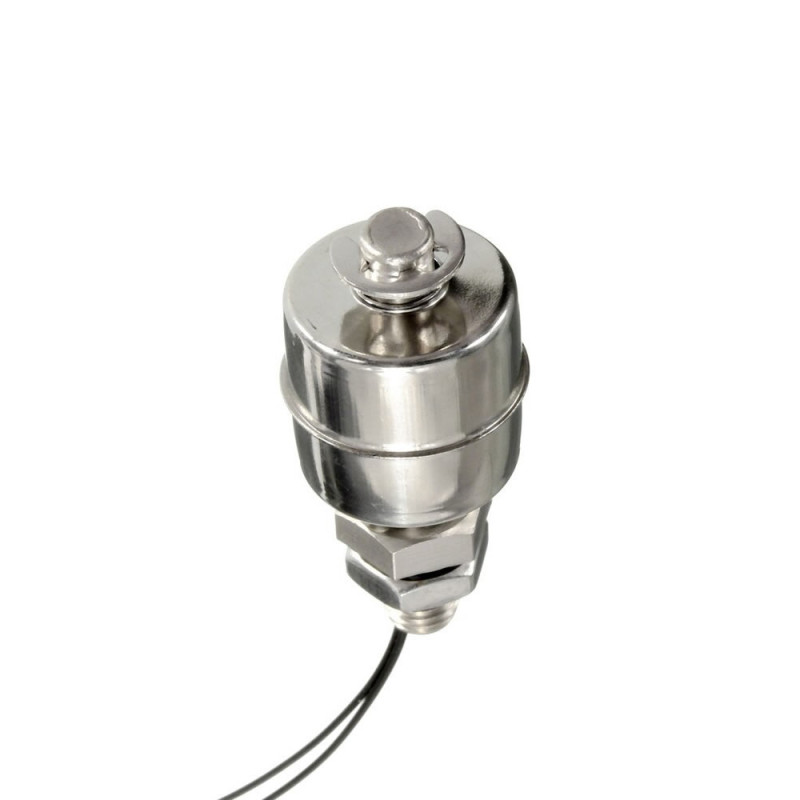

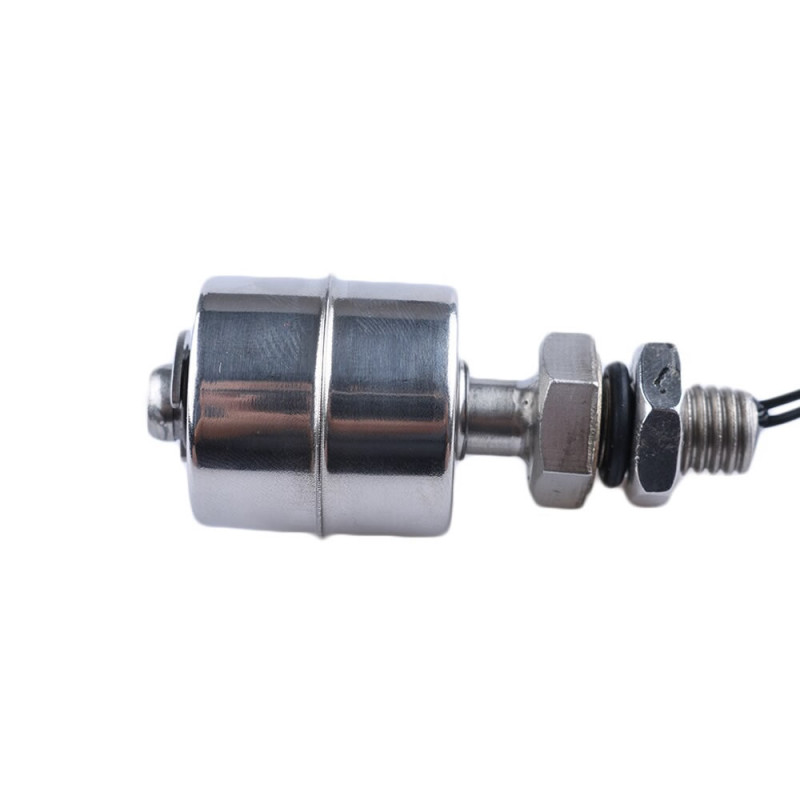

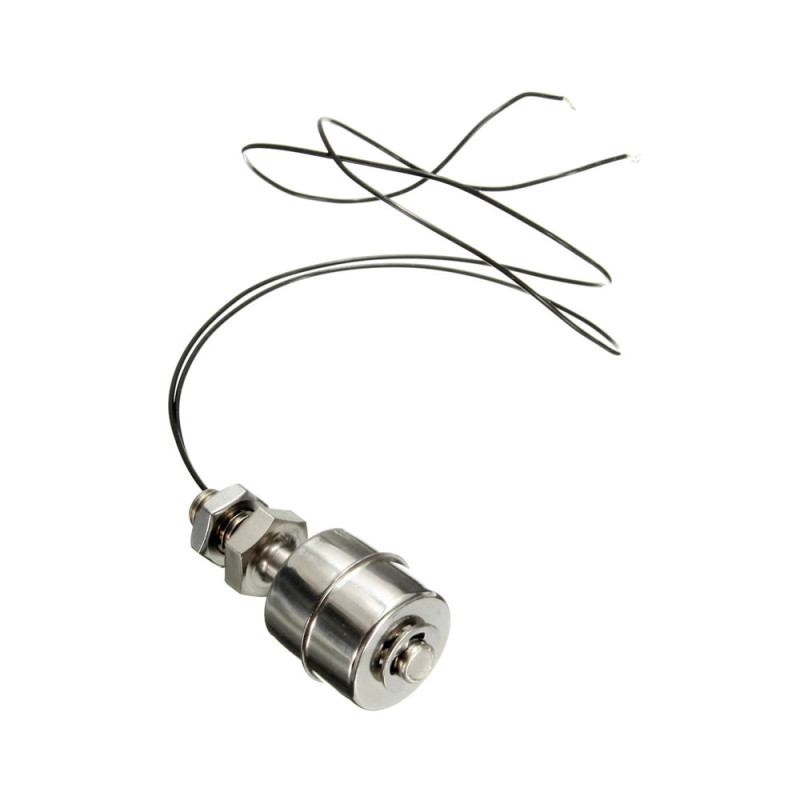

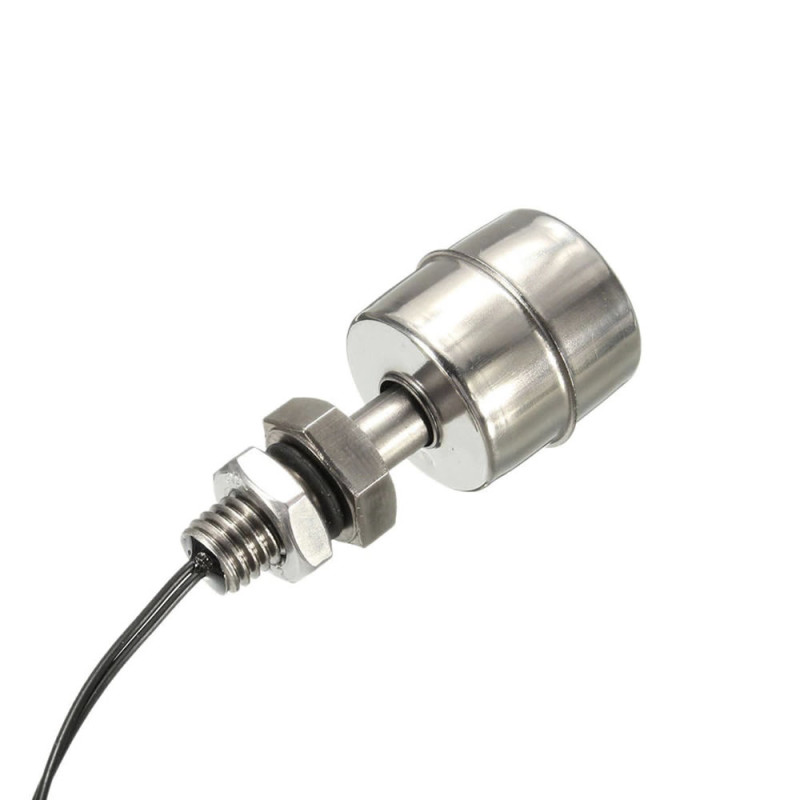

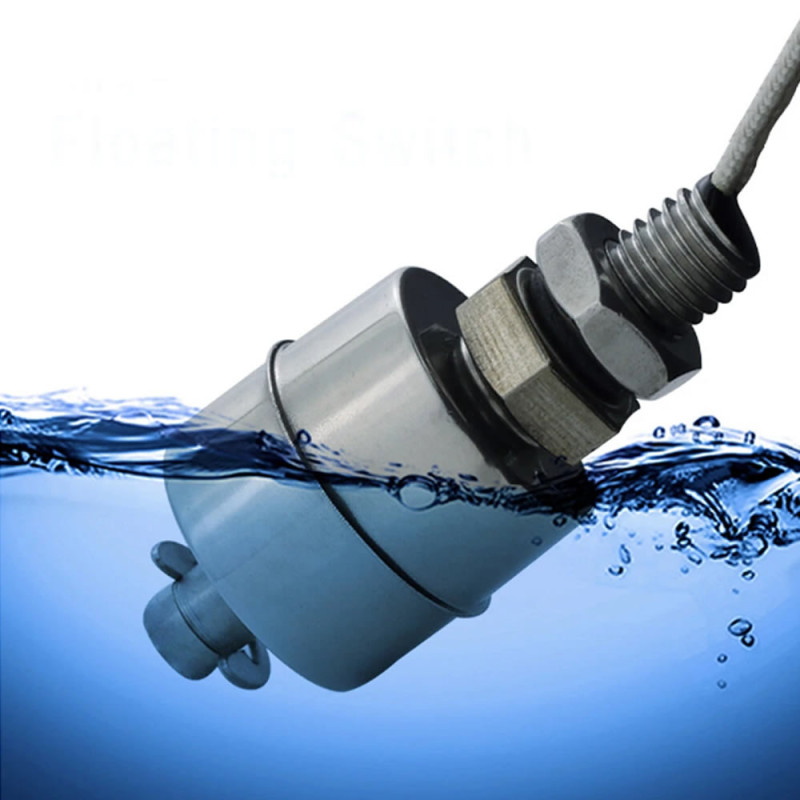

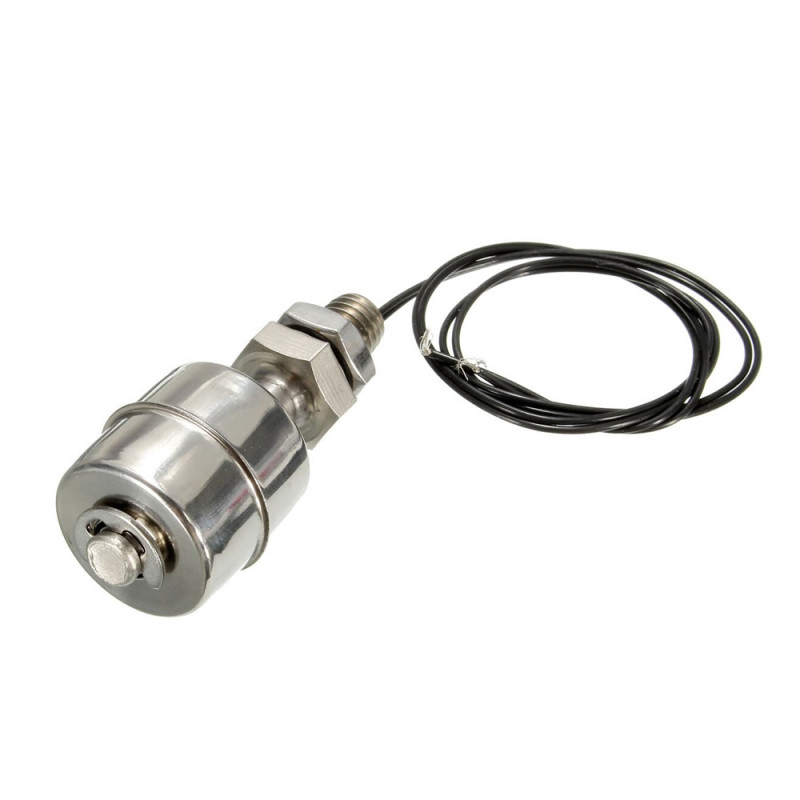

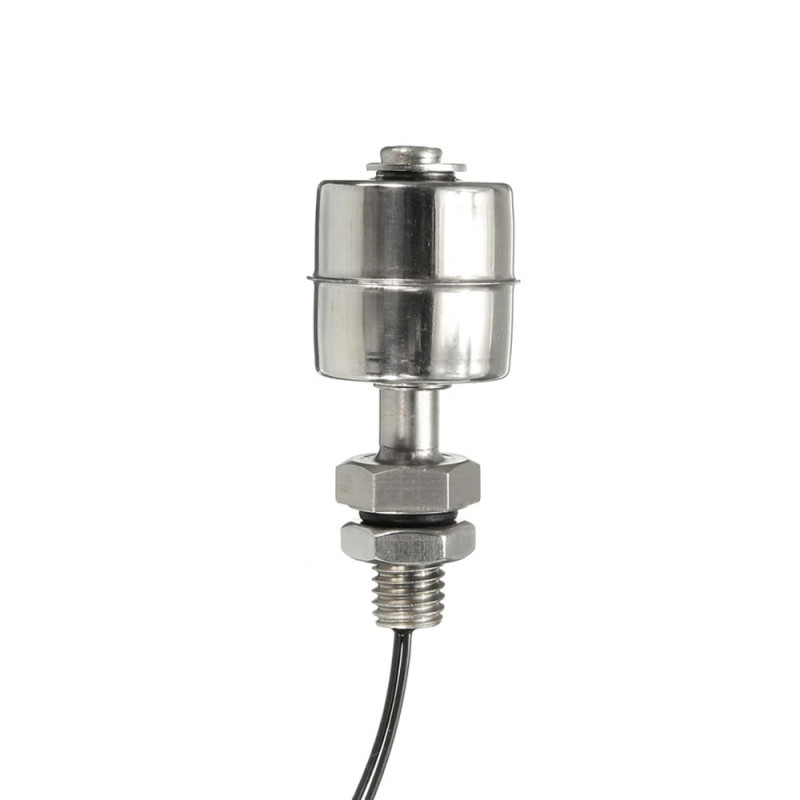

Metal Water Level Sensor 45mm

0 reviews • Write a review

259.20TL

Ex Tax: 216.00TL

Stok Durumu: Stok Var
Marka: OEM
Model: Metal Su Seviye Sensörü 45mm
SKU: RBZ.100.228

Qty

Add to Cart

Hemen Al Soru Sor

Add to Wish List Compare this Product

Tags: Metal , Liquid , Water , Level Sensor , Stainless , Steel , Float , Mechanical , Switch , Boiler , Container , Reservoir , Tank , Pool , Aquarium , Pump , Hydroponic , 10W , NC

Açıklama
Yorumlar

Metal Liquid Water Level Sensor 45mm

Stainless Steel Float Mechanical Switch Boiler Container Reservoir Tank Pool Aquarium Pump Hydroponic 10W

This product is a sensor used to detect the liquid level. You cannot drive a motor pump by passing high current directly through this product. It is mandatory to add a relay or contactor type component in between. If the sensor is short circuited, it means the product has been damaged due to high current. It cannot be repaired.

Switch NO NC Status: The product will reach you as NC. However, if you change the direction of the float of the product, you can use it as NO.

It is used to detect the liquid level in liquid filled tanks. It can activate devices such as a pump, indicator, alarm and the like. With the liquid level sensor, you can detect whether your tanks are full or empty. The sensor gives output as a dry contact. It can be normally open or normally closed depending on the position you place it. It is used to detect the liquid level in applications such as Aquarium, Hydroponic Systems, Salt Water Tanks, Washing/ Dishwashing Machine, Filtration Systems.

The stainless water level float triggers the reed relay inside the product depending on the movement of the float related to the liquid height, by making use of the buoyancy of liquids. It is highly reliable with its light, simple working principle. It is mounted vertically to the liquid tank. It is easily mounted to surfaces with an M10 type connection.

Features:

Metal Liquid Level Sensor Vertical Type
Switching power Max: 10W SPST
Maximum switching voltage: DC100V - AC 250V
Maximum switching current: 0.5A ( Momentary 1A) (The product is damaged at high current.)
Protection Class: IP67
Temperature range:-30C +125C
Cable length 35cm
Suitable for Metric 10 connection
Mounting type: Vertical
Mounting hole: 10mm
Color: Silver

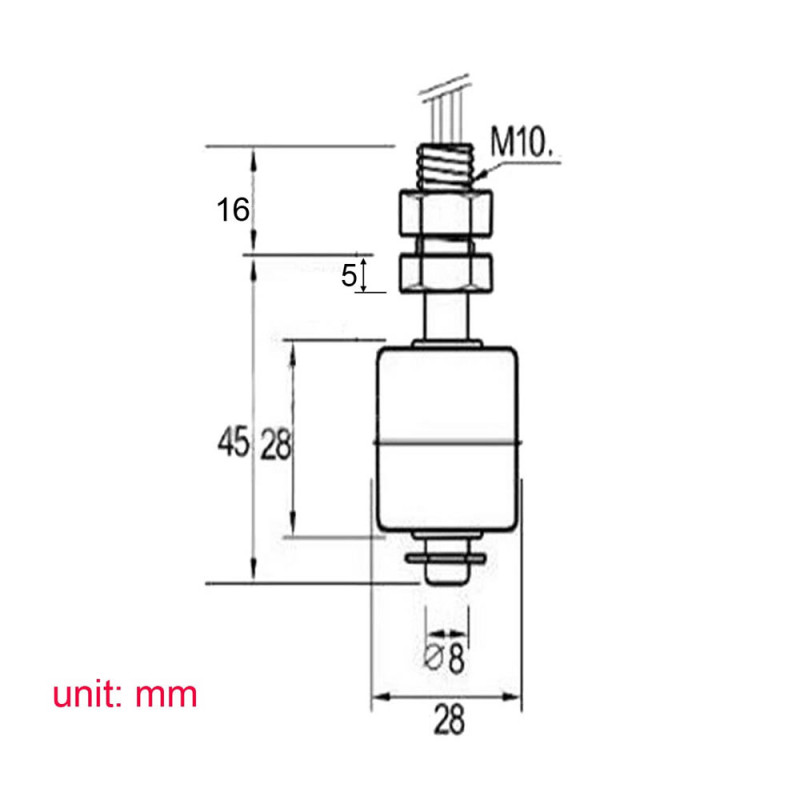

Body length: 45mm
Dimensions: 6.2cm x 2.8cm
Weight: 37,5gr
