TDA8932 30W Audio Amplifier Module

TDA8932 35W Mono Digital Audio Amplifier

DC 12V-36V Single Channel Class D Music Amplifier Amplifier 4/8 Ohm Speaker

     A small sized mono 35w audio amplifier board made with the TDA8932 IC. You can use it by connecting it to any kind of audio output source.It has clean and high sound quality. It needs to be used with a noise-free power supply. And the power of your power supply must be at 50W ( 24V 2A ) values for full performance.

    It can be used with a Dc 24V 2A power supply. The efficiency of the class D amplifier is above 90%. It gives high quality clean audio output.

Features:

•     IC: TDA8932
•     Operating voltage: DC 24V  ( 10V / 30V )
•     Operating current: 2A
•     Output power: Mono 35W
•     Class: Class: D
•     Speaker type: 4 / 8ohm
•     Efficiency: 90%
•     High audio output
•     There is no need for a heatsink.
•     High efficiency and low power consumption
•     High temperature protection
•     Short circuit protection
•     Does not produce noise
•     Full-differential inputs
•     Color: Blue
•     Operating temperature:  -10C  /  80C
•     4 Pieces 3mm mounting hole

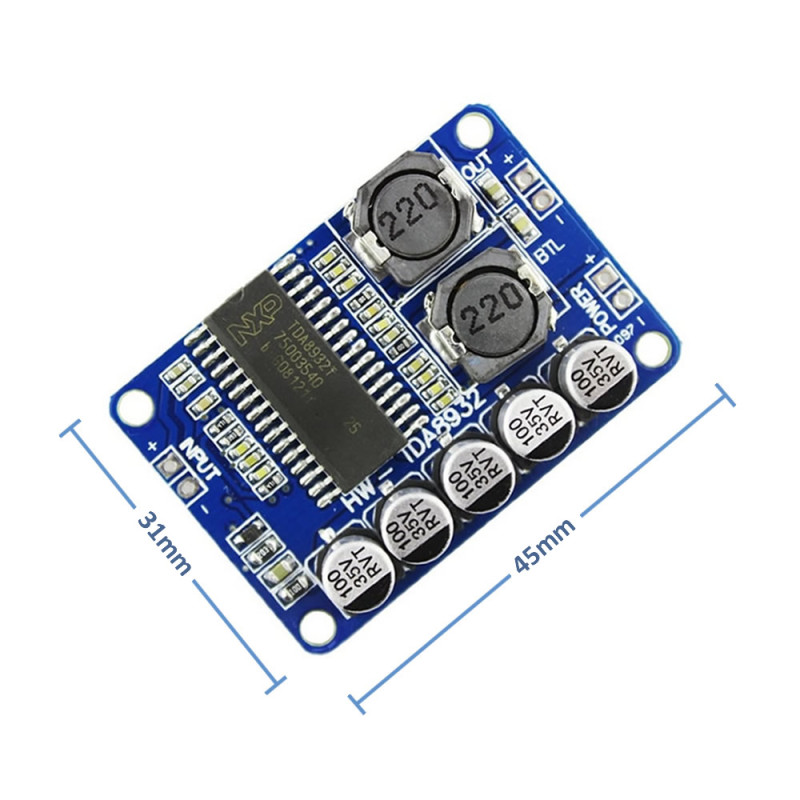

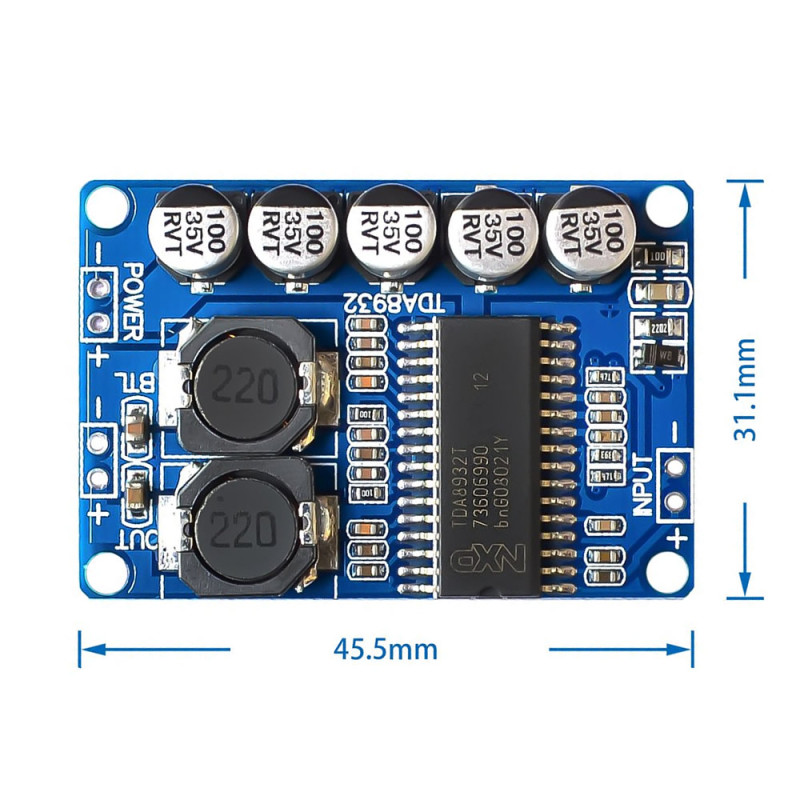

•     Dimensions:  31mm x 45mm
•     Weight:  12gr

Package Contents:

• 1 Piece TDA8932 30W Audio Amplifier Module
