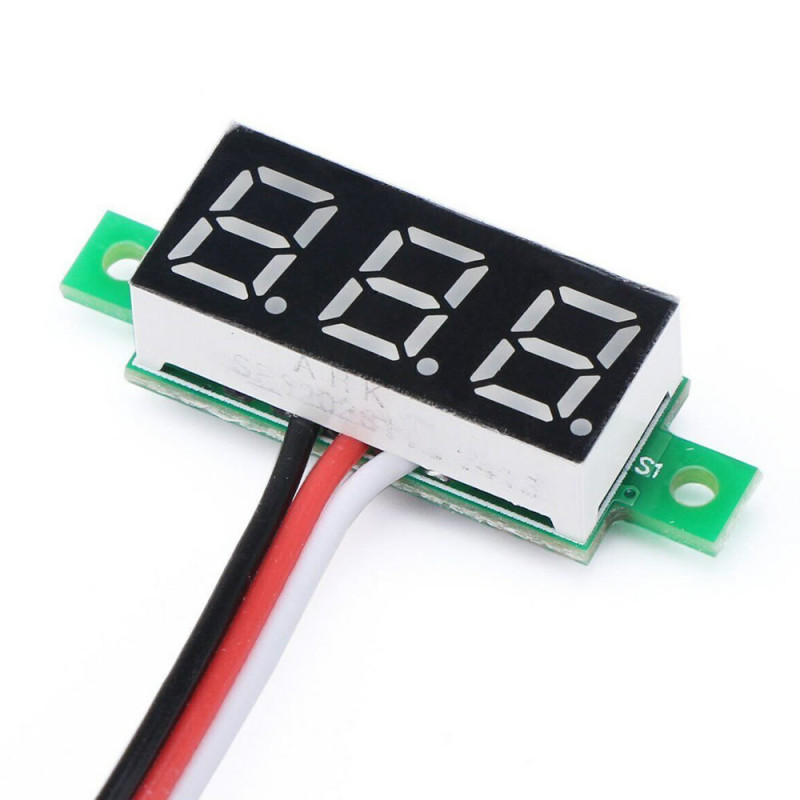

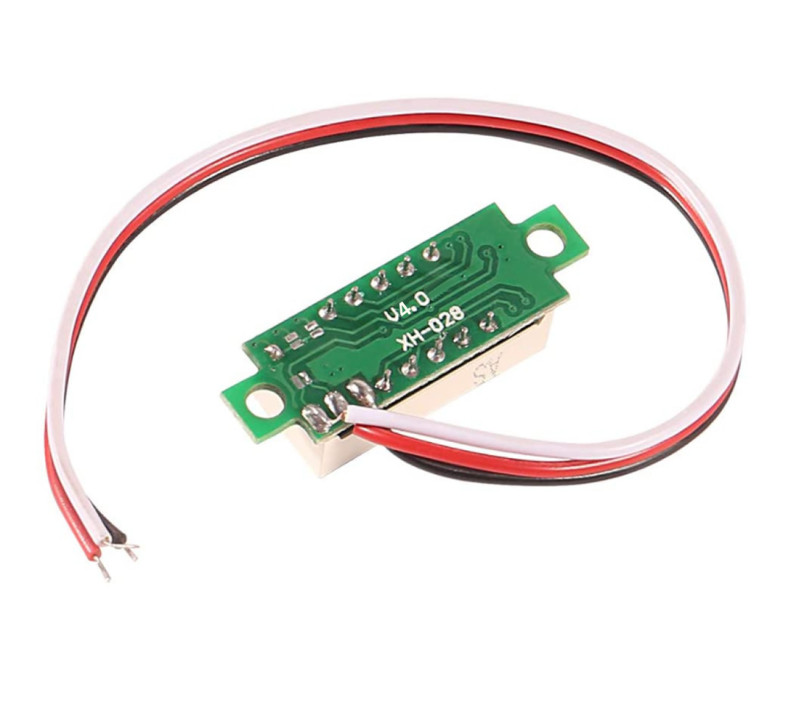

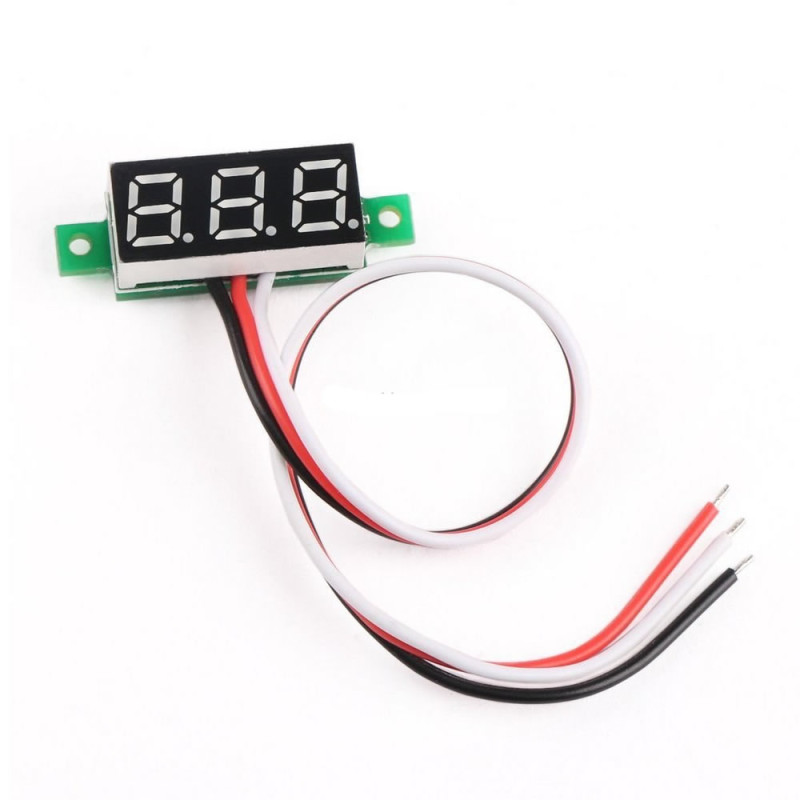

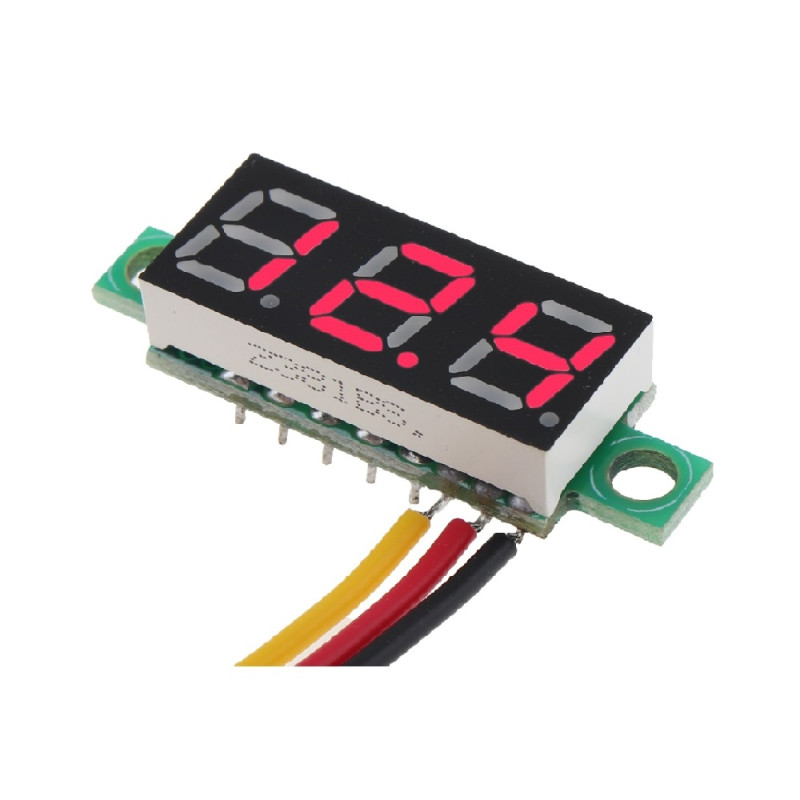

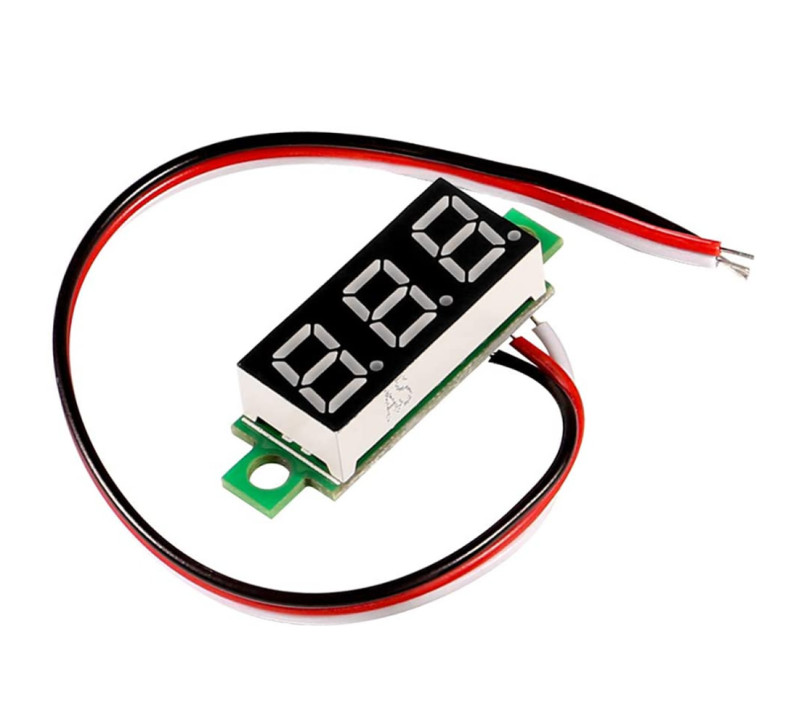

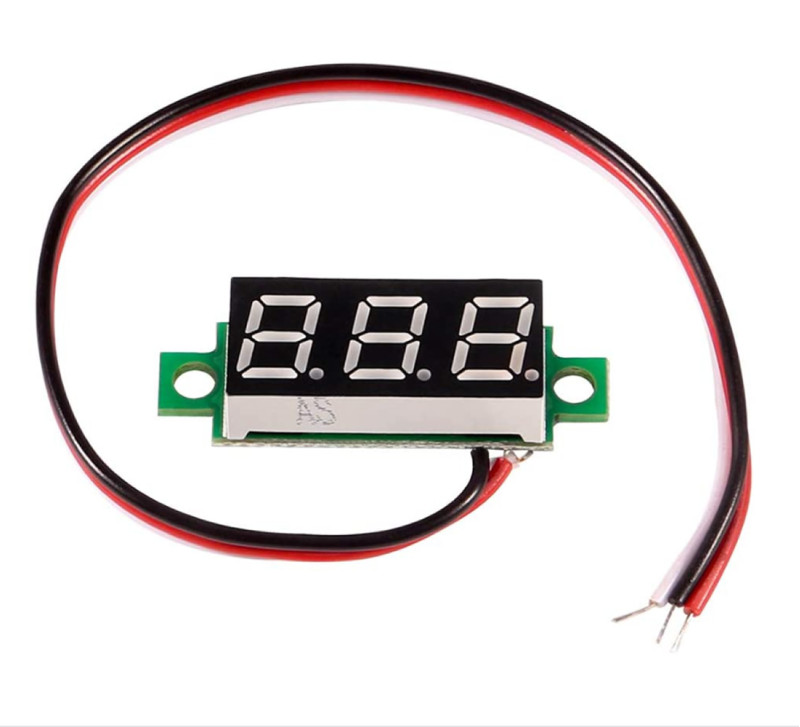

Voltmeter 0.28' 0-100V Red

0.28' DC 0-100V  Digital Voltmeter

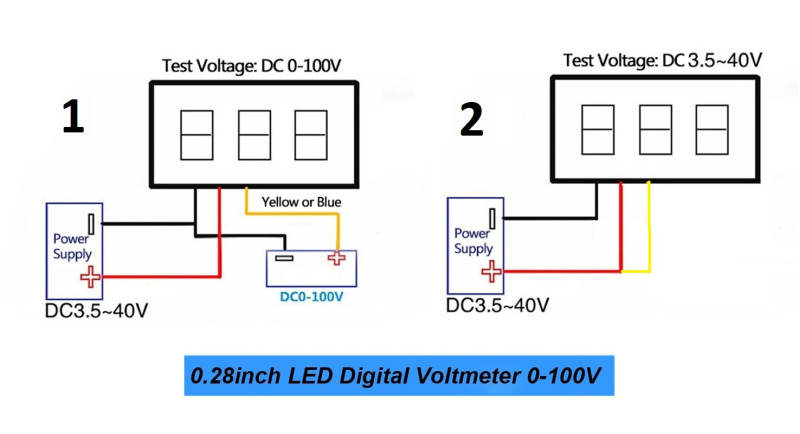

     0-100V voltmeter module. The module is powered from a source between 2.7V to 40V. In this case the product can measure between 0-100V. The module can also be operated as 2-wire, powered between 2.7V to 40V, measuring within this voltage range.  The connection method can be examined in picture number 2.

Description:

•  Three wires digital voltmeter, 0.28" LED display, mini size, reverse connection protection.
•  Measure voltage range 0-100V, need DC 2.7V~40V external power supply.
•  Can directly work in 5v, 9v, 12v, 24v electrical circuit.
•  Stable perfermance and high precision.
•  Standard size and easy installation.

Specification:

•  Material: Plastic, Electronic Components
•  Size: approx. 3.1 x 1.1 x 1.0cm/1.2 x 0.4 x 0.4inch
•  Cable Length: Approx. 17cm
•  Three-wire working voltage: 2.7V~40V(with reverse protection)
•  Three-wire detection voltage: 0.0~100V
•  Display mode: 3 digit 0.28inch LED digital tube
•  Display color: red, yellow, blue, green
•  Working current:<20mA

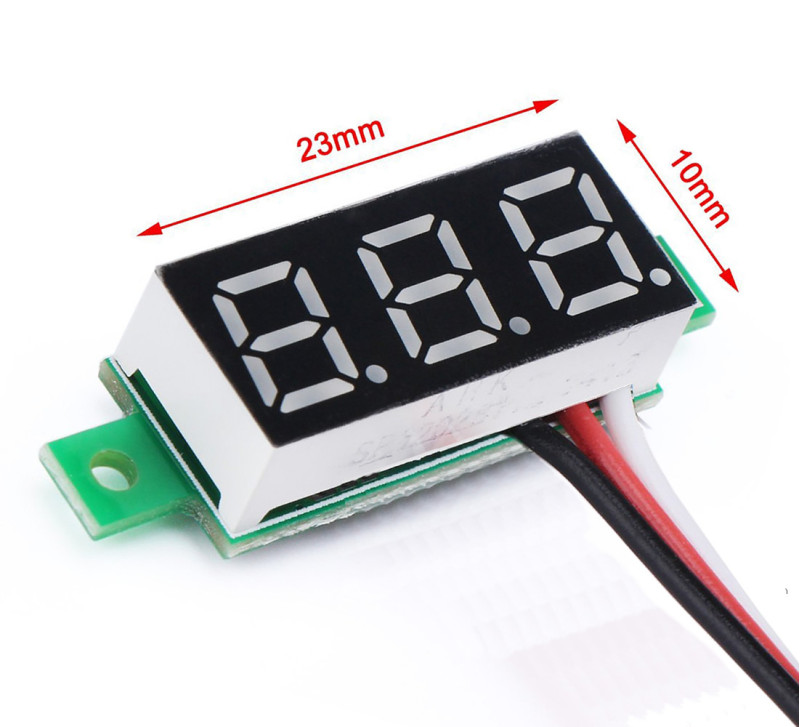

•  Install hole size: 23 x 10mm
•  Refresh rate: 200mS / times
•  Measurement accuracy: 3%
•  Operating temperature: -10°c to 65°c

Package Contents :

•   1 pcs  0.28inch DC 0-100V Red Voltmeter
