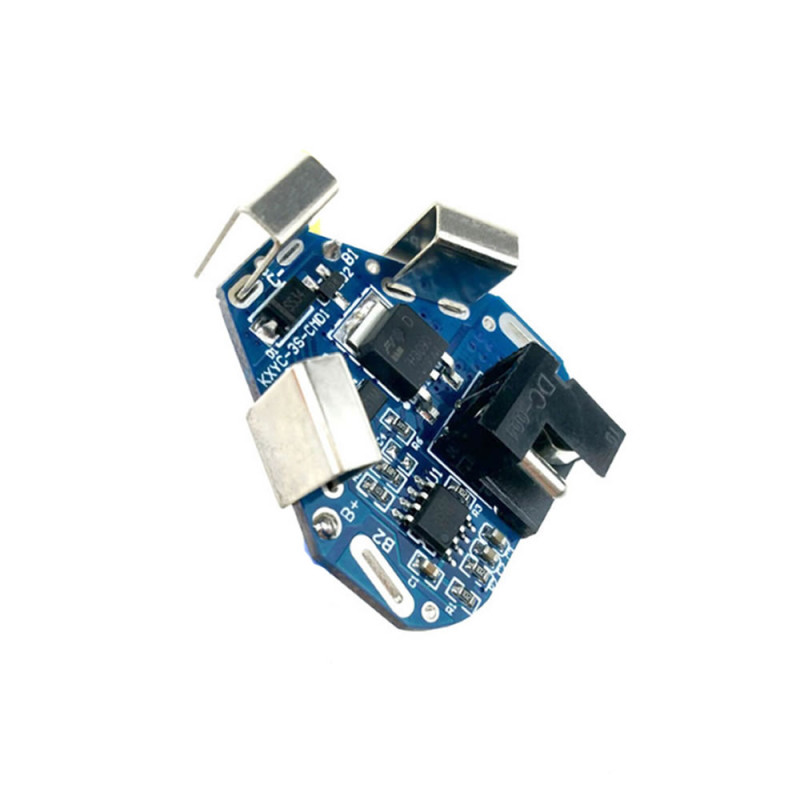

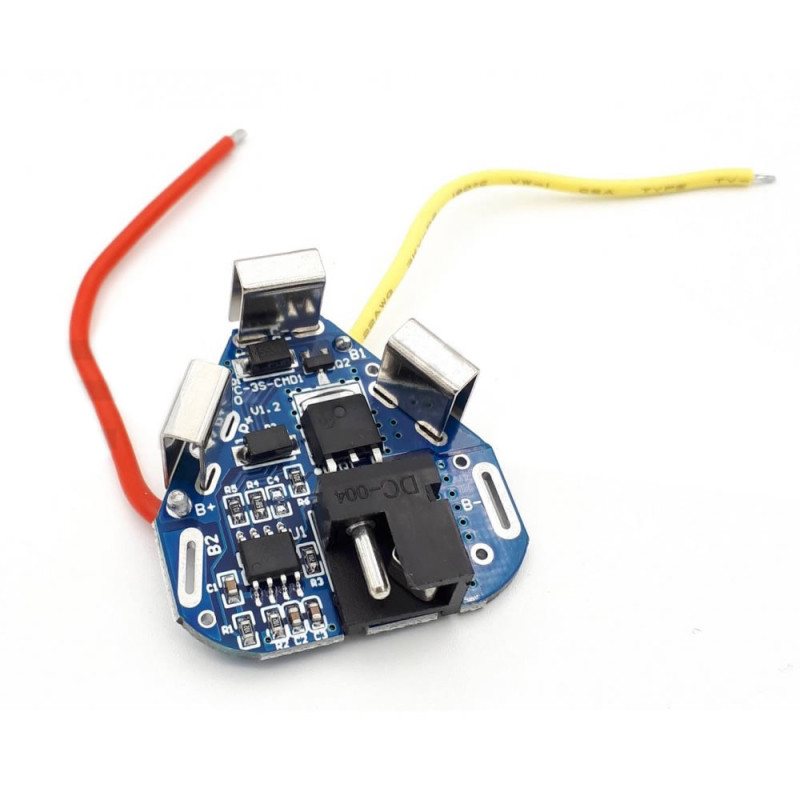

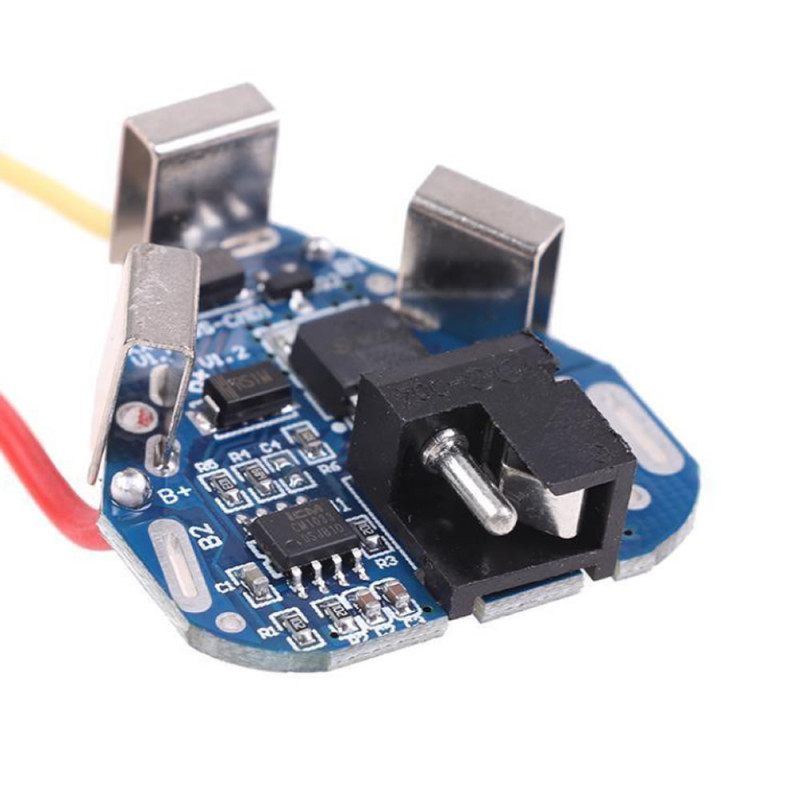

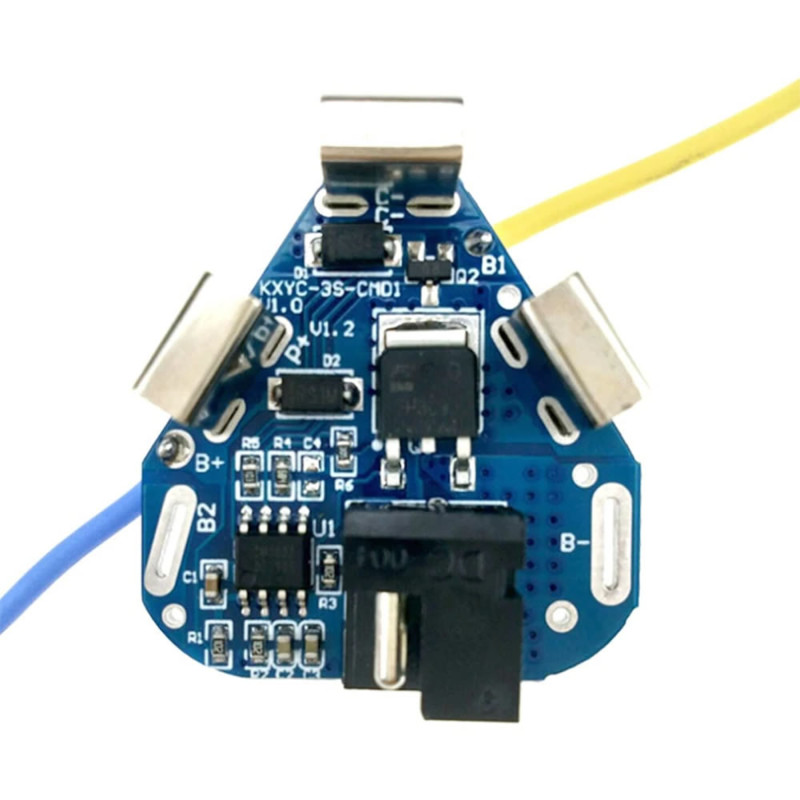

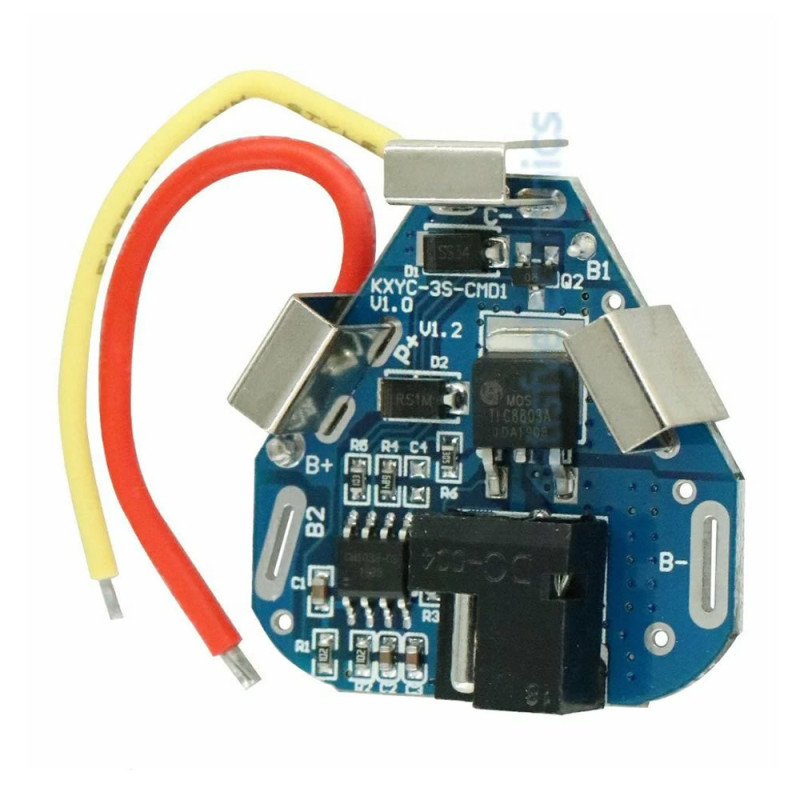

3S 12V Lithium Battery BMS Protection Board

3S 8A 12V Lithium Battery BMS Protection Board

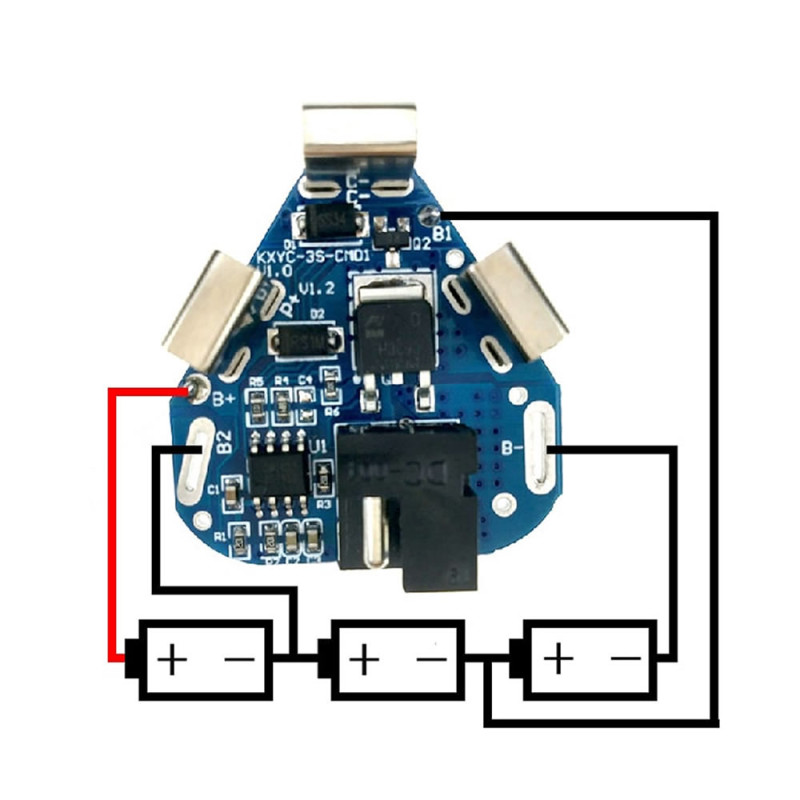

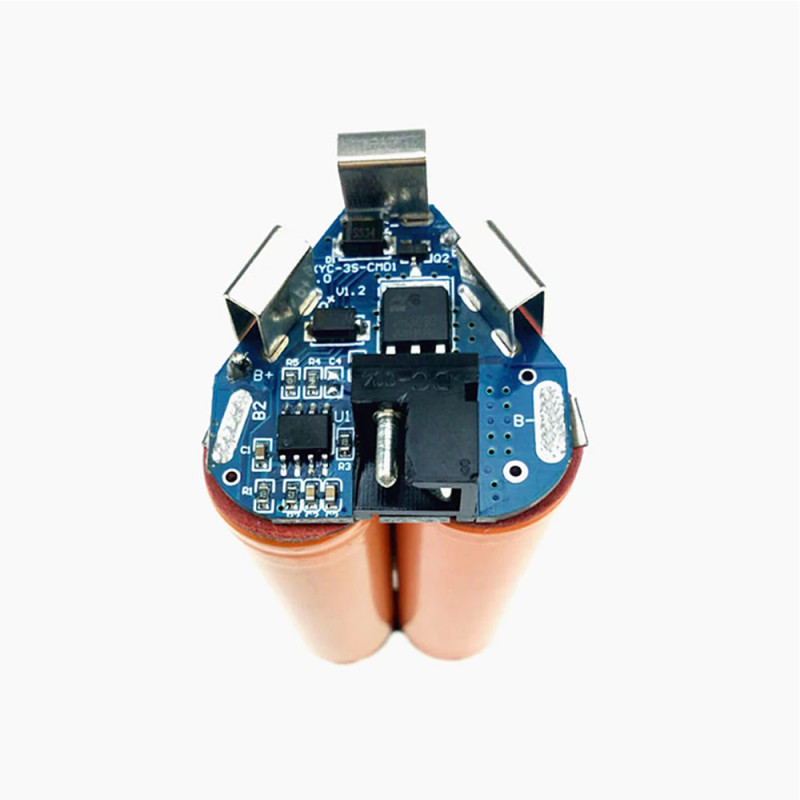

Suitable for 3 series 18650 batteries.

Features:

• Operating voltage: 12V (3S)
• Charging current: 1-2A
• Charging voltage range: 12.6V-13V
• Operating current: 8A  ( 40A momentary )
• Leakage current: <30uA
• Overcharge protection: 4.25v ± 0.05v
• Over-discharge protection: 2.5v ± 0.05v
• Overcurrent protection,
• Short circuit protection
• Charge and discharge port: split port
• 2.1mm standard adapter charging input socket.

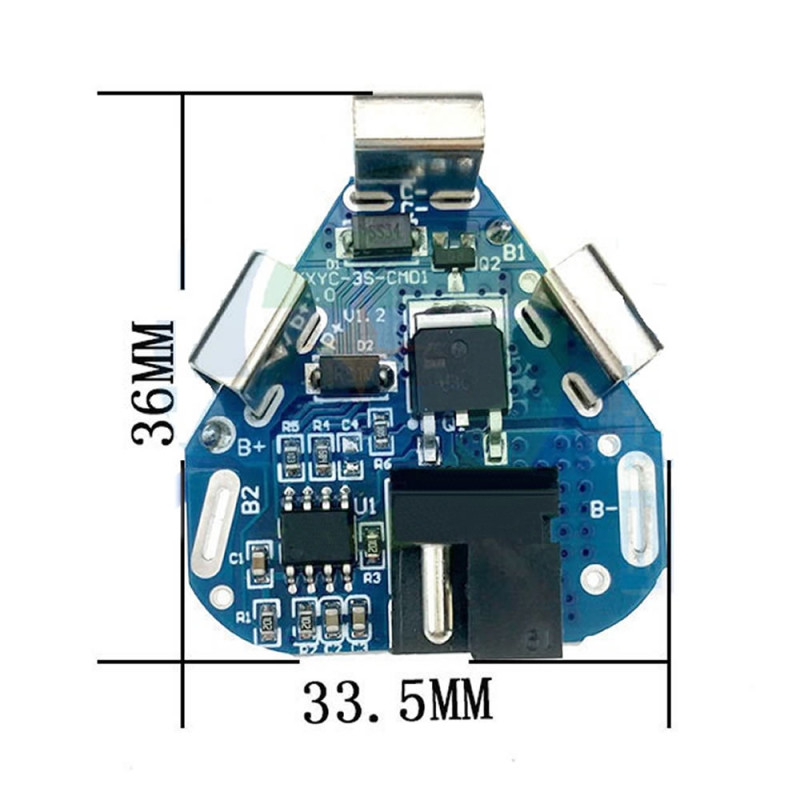

• Dimensions: 36mm x 33,5mm x 12 mm
• Weight:  8gr

Package Contents:

• 1 pc 3S 8A 12V Lithium Battery BMS Protection Board
