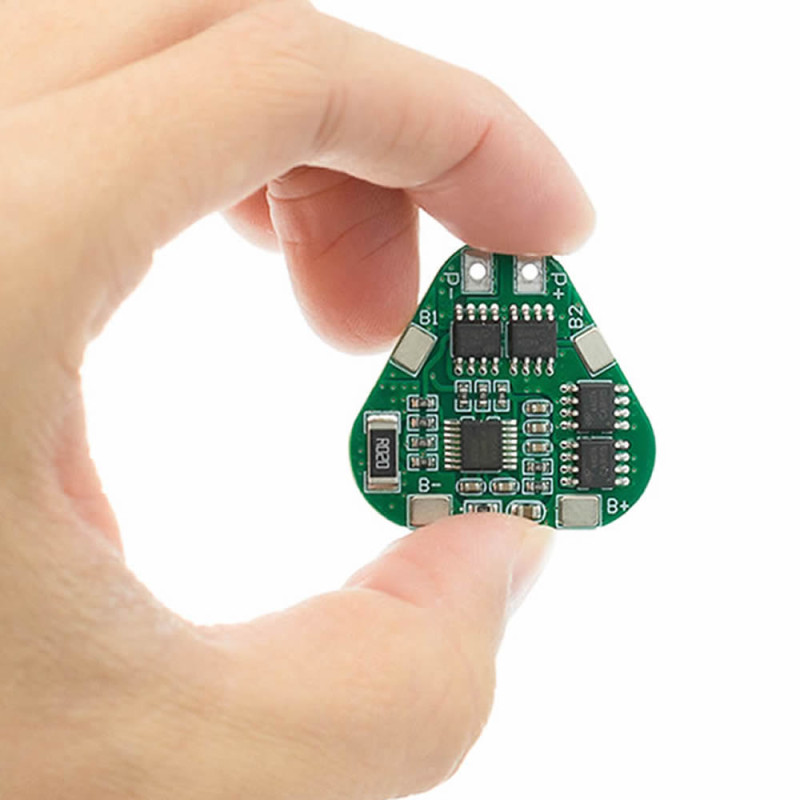

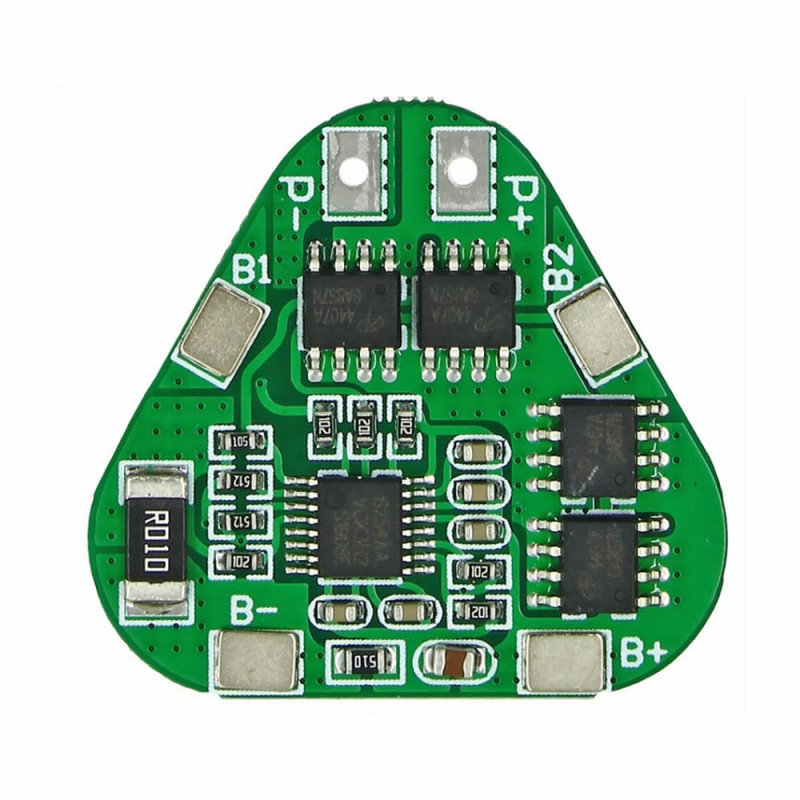

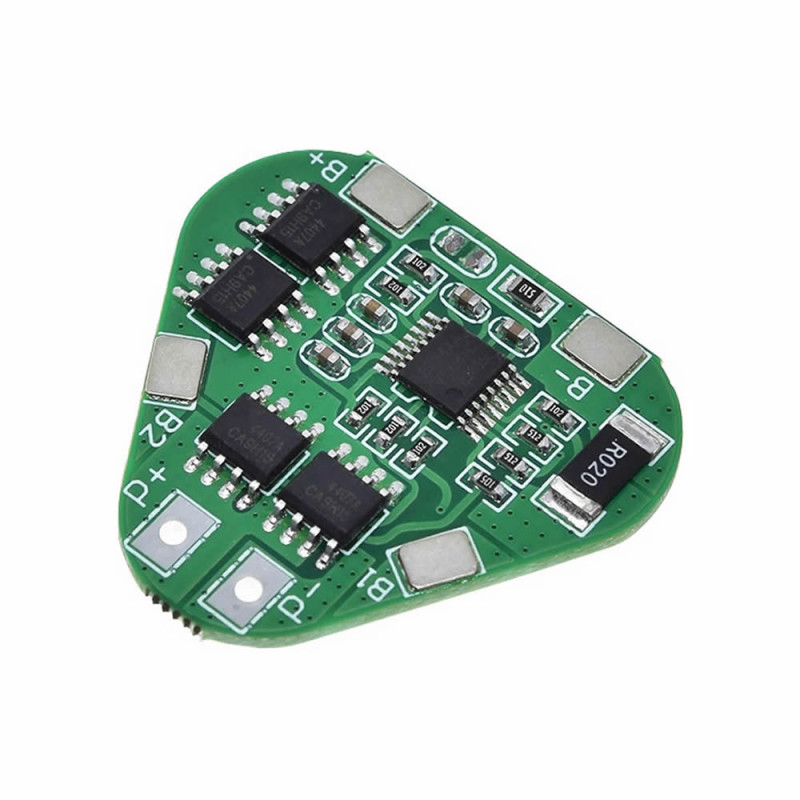

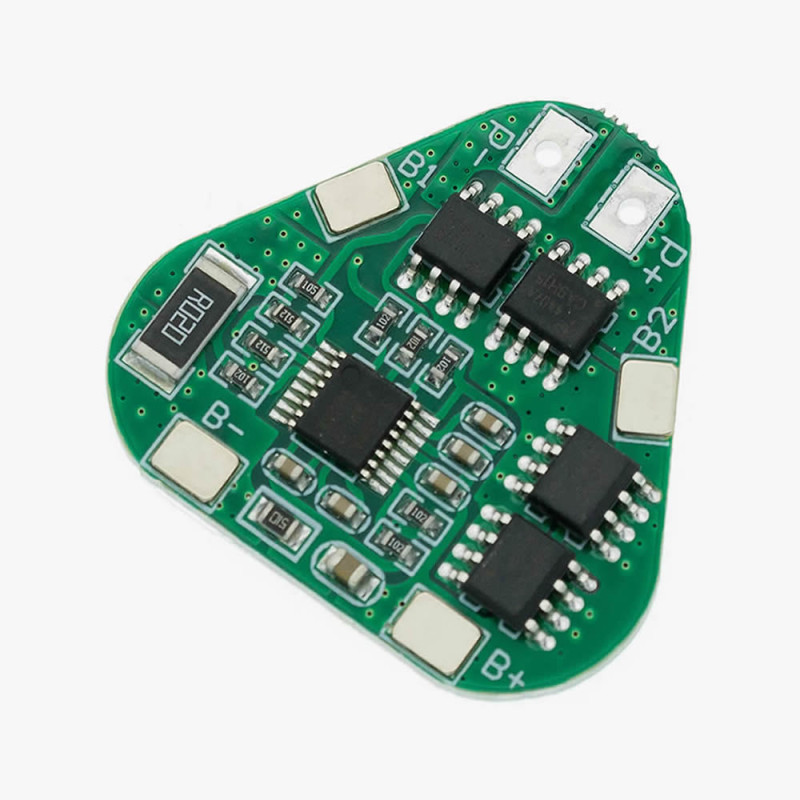

3S 8A 12V BMS Protection Board

3S 8A 12V BMS Protection Board

18650 Battery Lithium Li-Ion Lipo Battery Protection 11.1V 12.6V Overcharge Discharge Protection

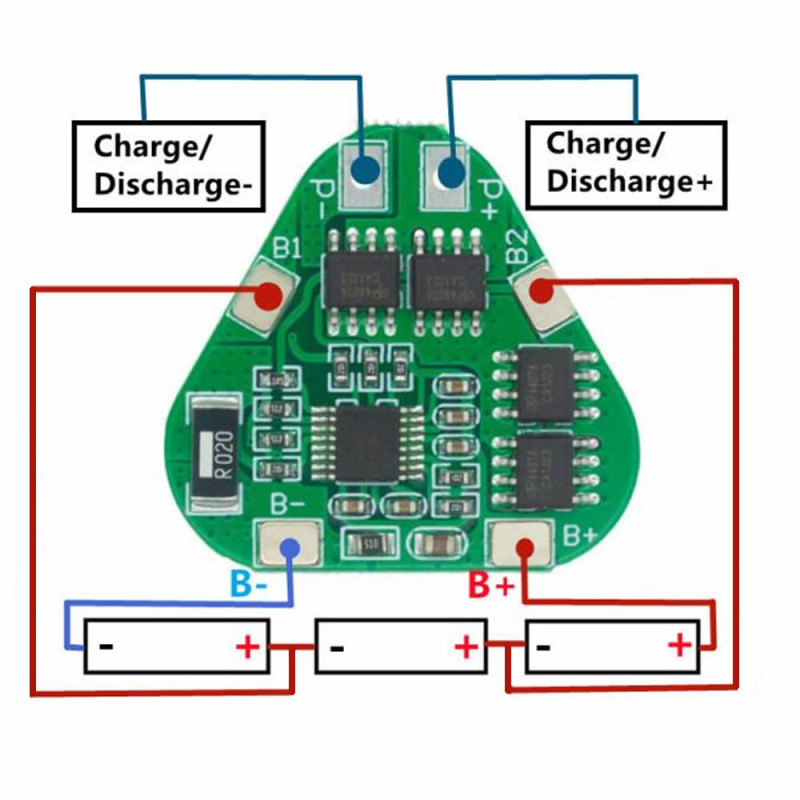

     It is suitable for 3 series 18650 batteries. It is used with a 12.6V supply charging voltage. It has functions such as protection of lithium batteries and their balanced charging, and preventing high current draw from the battery.

     Batteries are charged with a low level constant current. This current level varies according to the batteries. It is generally appropriate for them to be charged at 1/10, 2/10 levels. A battery is not charged with high current by connecting an adapter. This practice reduces battery life. Battery charging circuits that can supply constant current at a suitable level are required for battery charging. For this reason, bms boards are not battery charging boards. They are battery protection boards. They have protection duties such as short circuit, high current, high voltage.

Features:

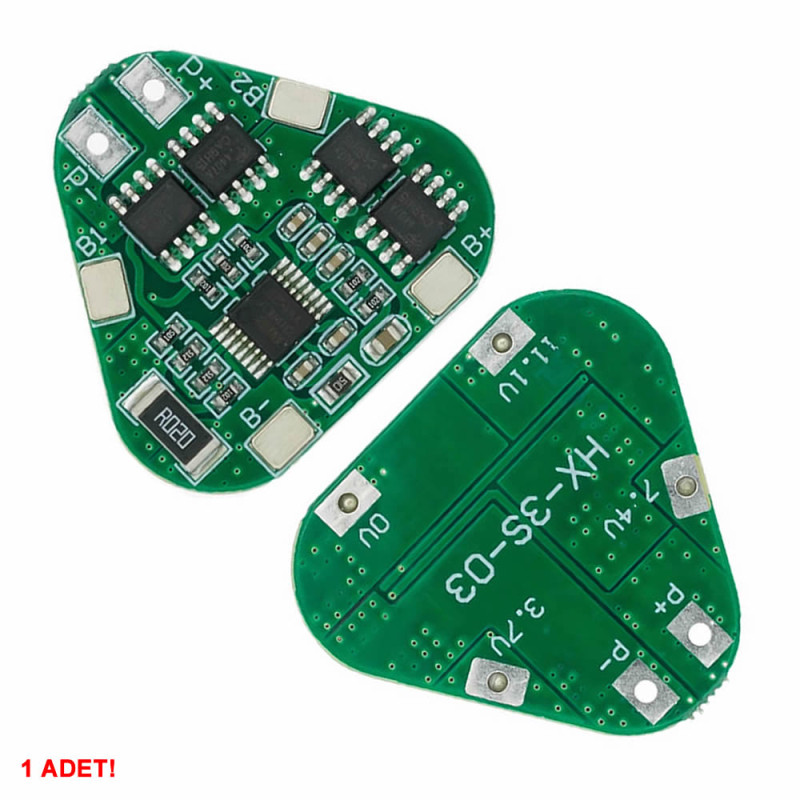

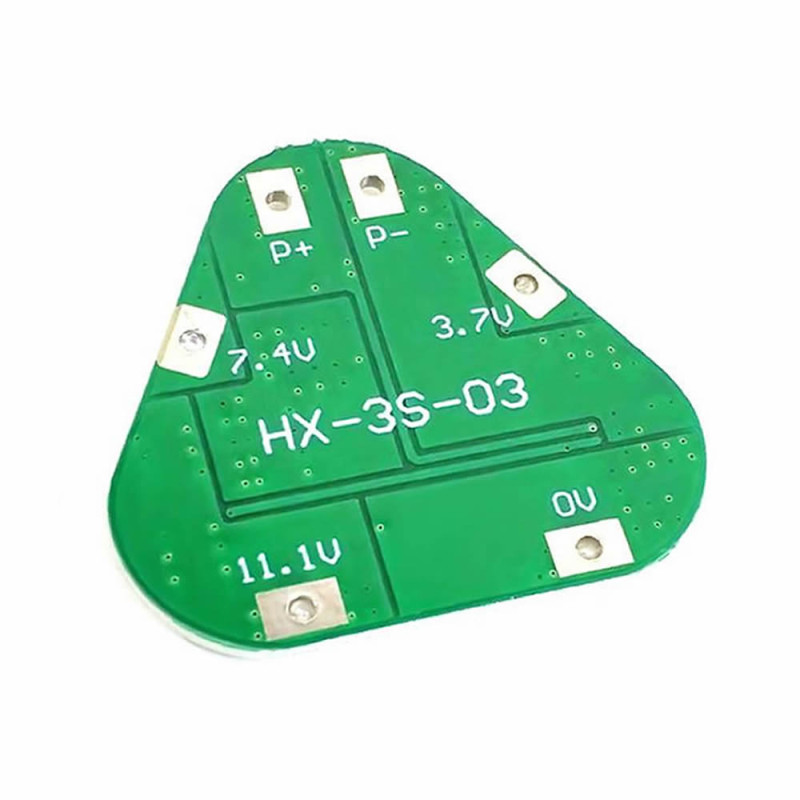

• Model: HX-3S-03
• Operating voltage: 12V (3S)
• Charging current: 1-2A
• Charging voltage range: 12.6V-13V
• Operating current: 8A
• Leakage current: <30uA
• Overcharge protection: 4.25v ± 0.05v
• Over discharge protection: 2.5v ± 0.05v
• Overcurrent protection,
• Short circuit protection
• Life: 30000hours
• Color: Green
• Operating temperature:  -20C  /  70C

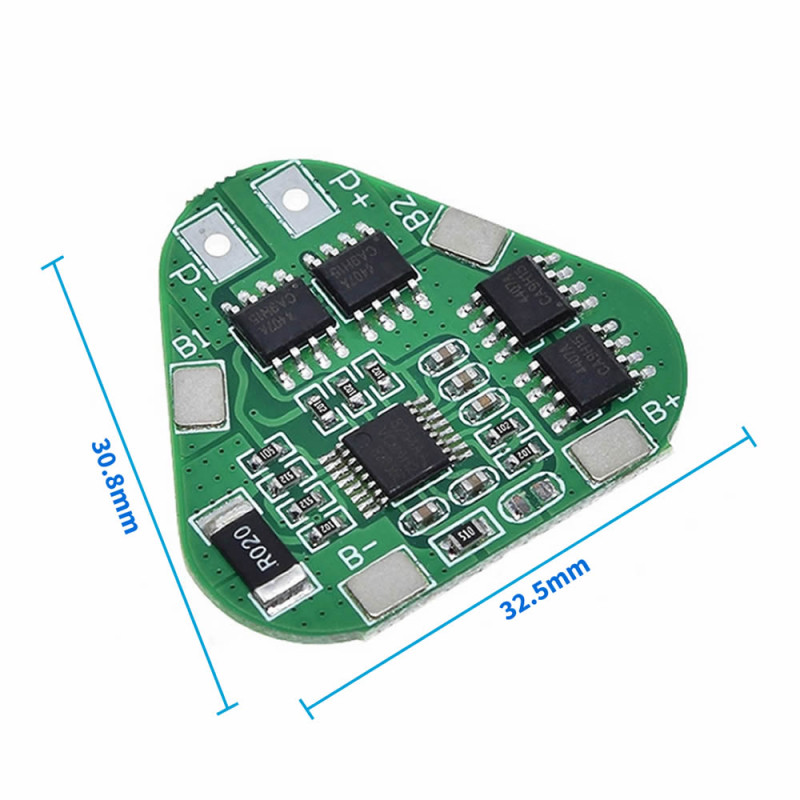

• Dimensions: 30.8mm x 32.5mm
• Weight: 3gr

Package Contents:

• 1 Piece 3S 8A 12V BMS Protection Board

.
