433Mhz RF 2 Channel Relay Module DC 12V

433Mhz RF 2 Channel Relay Module DC 12V

Wireless Motor Pump Fan Lamp Curtain Smart Home Garage Barrier Door Control

A remote control is not included with the product. The remote control must be purchased separately ! It would be suitable for you to buy a 4 Button remote control.

     It is an rf wireless 2 channel relay board that can be used with remote controls operating in 433Mhz 1527 type. It is used by registering the remote control with the button on it. You can use it in your wireless control applications up to a distance of 100 meters in open areas and 10-30 meters in closed areas. There is a 250V 10A relay on the product. It is suitable for use with loads up to 7A in long-term use.

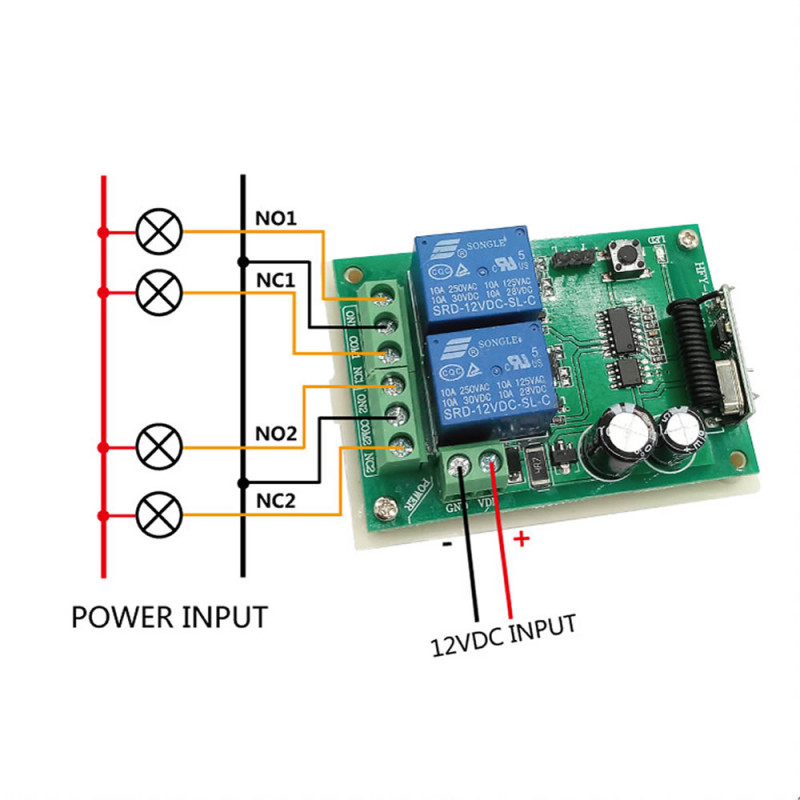

     If the relay works completely the opposite of what you want, if you move the wire at the edge of the relay connections to the other edge, it will work the way you want.

Usage:

1. Saving/teaching the remote control to memory: Press the button once. When the led goes off, release the button and press the button of the remote control. If the led blinks 2 times, the registration has been made successfully.
2. To delete the remote control, press and hold the button for 8 seconds. When the led goes off, the remote controls registered in the memory are deleted.
3. Test: After the registration process, the relay is activated each time the remote control button is pressed.

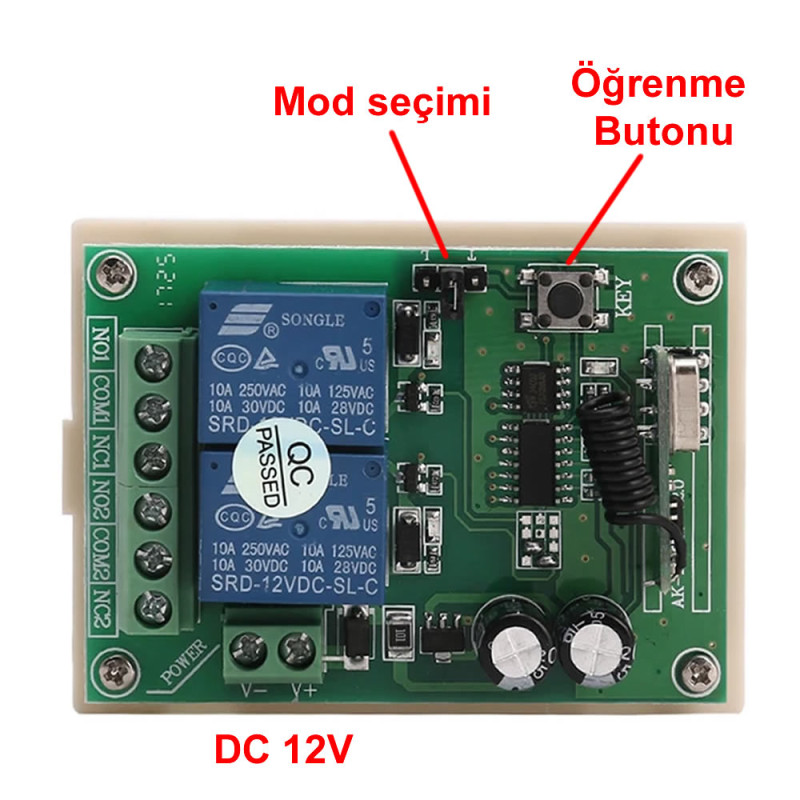

Mode setting:   Mode setting is made with a 3-way jumper.

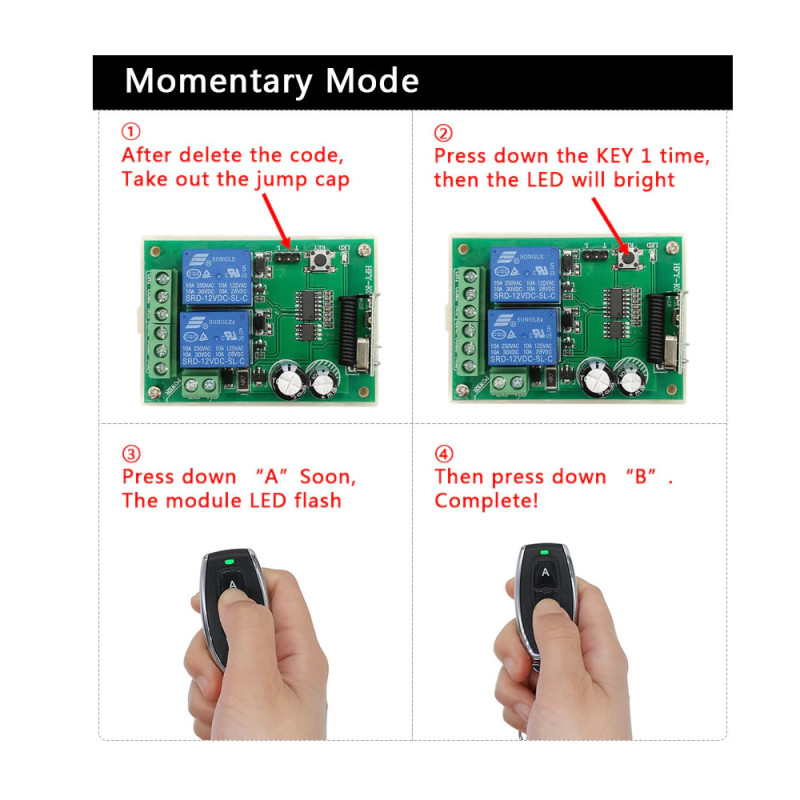

• Momenterary:  No short circuit.
• Toggle:  T short circuit

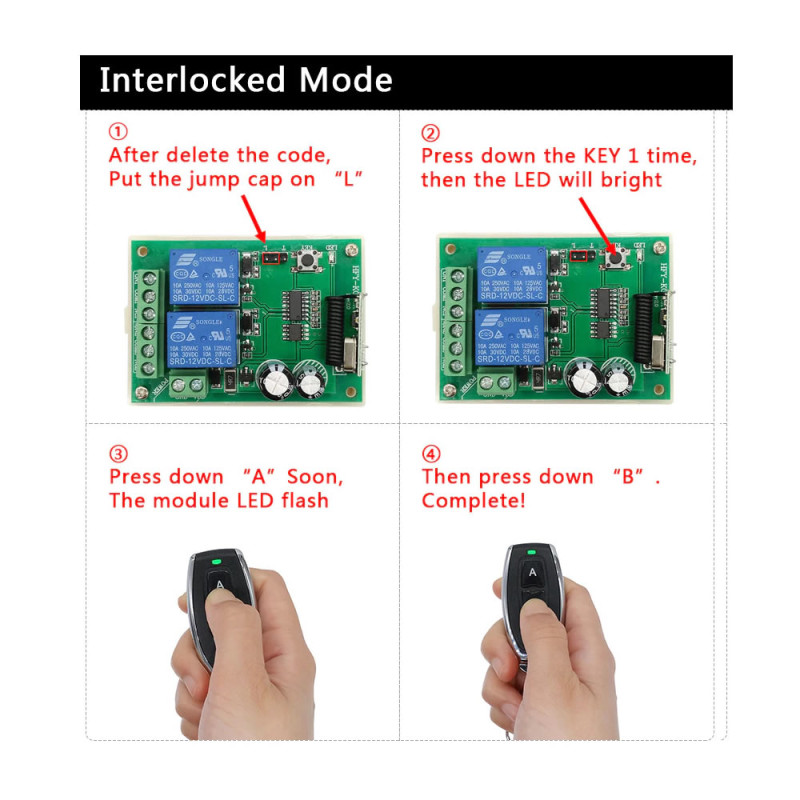

• Latched: L short circuit.

Features:

• Operating voltage: DC 12V
• Operating current: 150mA
• 433Mhz wireless remote control receiver circuit on the board
• Remote control type: 1527  / 2262 / 2762
• Communication distance: 100m (open area)
• Remote control memory: 19 pcs
• Receiver sensitivity: -90dbm
• Remote control learning register/delete button
• Operating modes: Momentary, Toggle, Lached
• Indicator led
• Relay:  2 pcs AC 250VAC 10A  /  DC 30V 10A  ( must not be used above 7A in continuous use.)

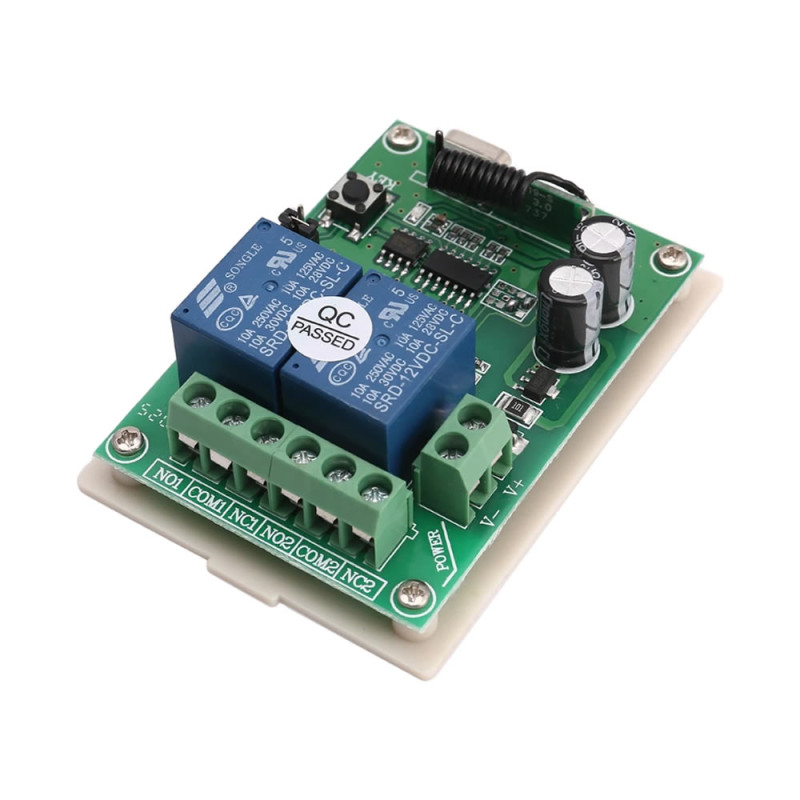

• NO NC COM relay output terminal.

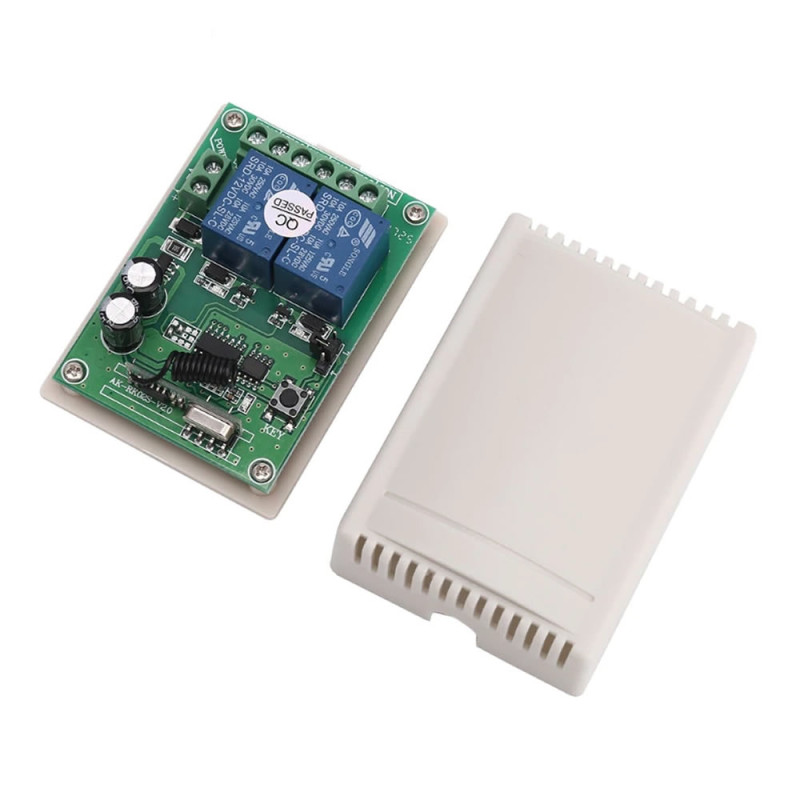

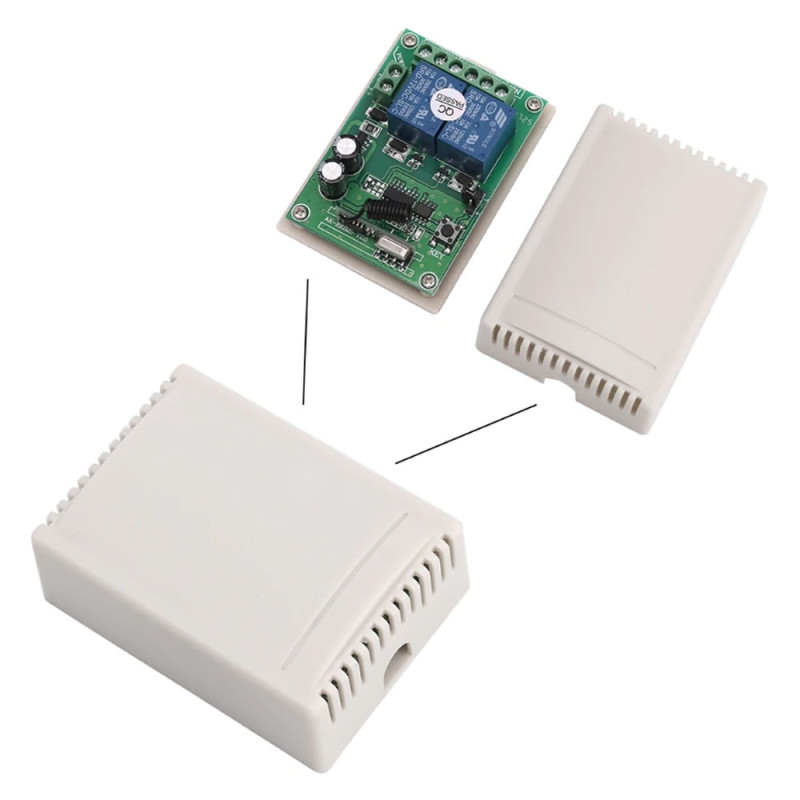

• Plastic protection box
• 1 hole on the box for mounting/hanging
• Dimensions: 28mm x 53mm x 75mm
• Weight: 55gr

Package Contents:

• 1 pcs 433Mhz RF 2 Channel Relay Module AK-RK02S
• 1 pcs Plastic box
