ESP32-1732S019 1.9inch ESP32-S3 TFT Module

ESP32-1732S019 1.9inchTft Lcd Module

Wifi Bluetooth 8M PSRAM 16M Flash 170x320 Pixel Rgb Led Ldr Usb Uart IO Sensor Temperature Speaker Sd Card Smart Display Home Automation Machine Control Iot

     ESP32-1732S019 is a versatile control module featuring an integrated 1.9inch lcd display and a powerful ESP32-S3 based microcontroller. With its dual-core processor it supports wifi and bluetooth connections, and its speed can go up to 240MHz. With 8M PSRAM and 16M flash memory, it is suitable for wireless control, sensing, monitoring, measurement and IoT applications. It can be programmed with platforms such as Arduino IDE, ESP IDE, Micropython, Scratch and Mixly.

     Thanks to its broad protocol and gpio support, this module can be used in versatile projects such as sensor reading, actuator control, memory expansion, audio output and usb communication. The integrated ldr light sensor on the front side and the rgb led on the back side provide status indication. Data storage is possible with a micro SD card. Programming and serial communication over usb, and integration with other hardware via uart are supported.

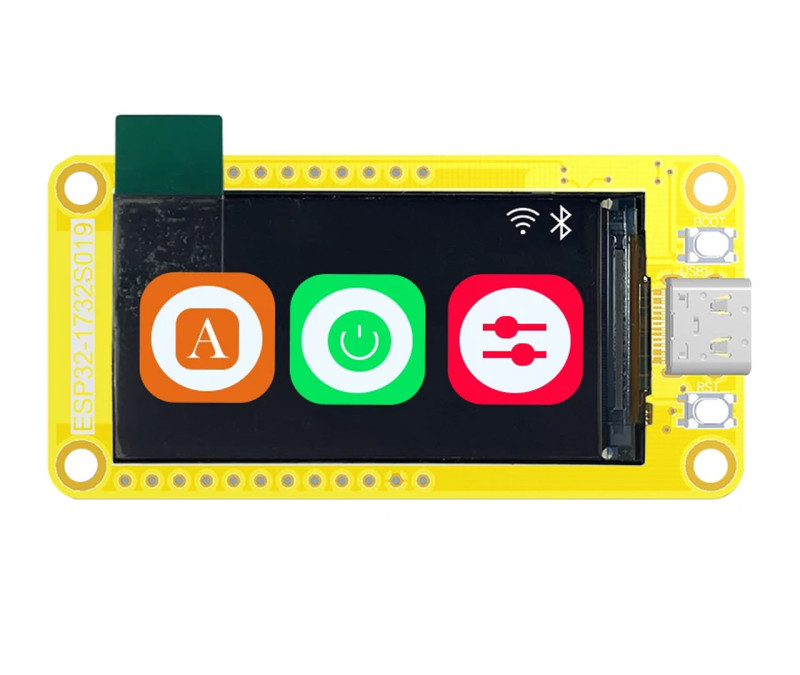

     The product drives a 1.9 inch lcd display with 170x320 pixel resolution and you can adjust the light level on the display. With the io ports you can control various devices and receive data from various sensors. With the 2W audio output you can provide an audible warning or notification.

Features:

• Integrated: ESP32-S3-WROOM-1
• Operating voltage: Type C Usb Dc 5V
• Operating current: 200mA
• Lcd size: 1.9inch
• Display resolution: 170x320 pixel
• PSRAM: 8M
• Flash: 16M
• SRAM: 520 KB
• Wi-Fi: 802.11b/g/n/e/i
• Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
• Demo program is preloaded
• Ldr sensor on the front side for light detection
• Usb communication: usb with CH340 serial converter
• Rgb led on the back side
• Interfaces: uart, spi, i2c, pwm, adc, dac
• Micro Sd memory card socket  4gb max.
• Audio output: 2W speaker output
• Gpio / IO port: peripheral control
• I2c sensor connection sensor
• Boot button
• Reset button

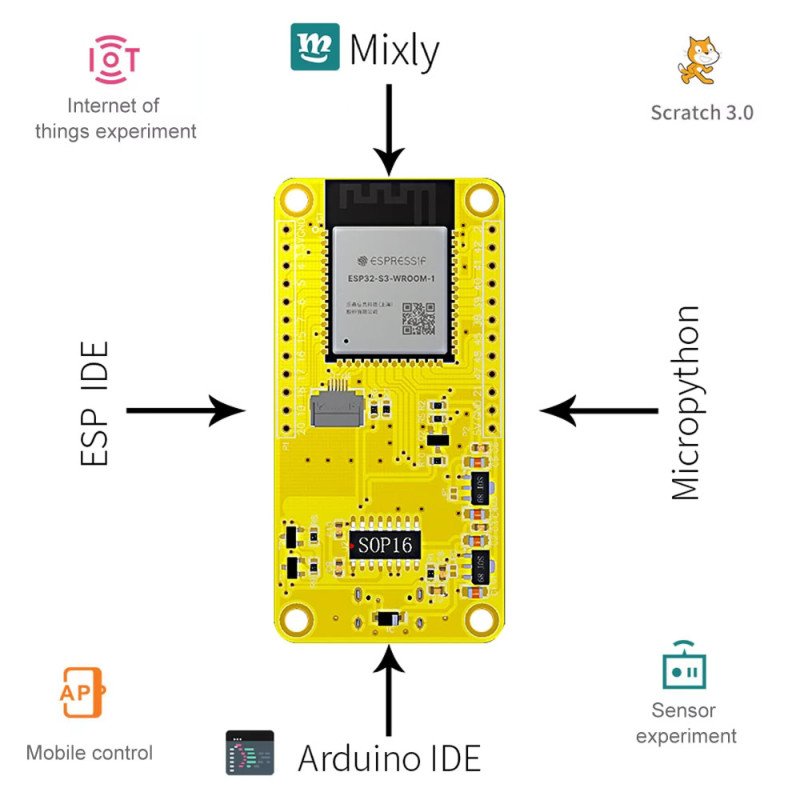

• Esp Ide, Micropython, Arduino, Scratch and mixly programming support
• Operating temperature:  -20C  / 70C
• 4 Mounting holes

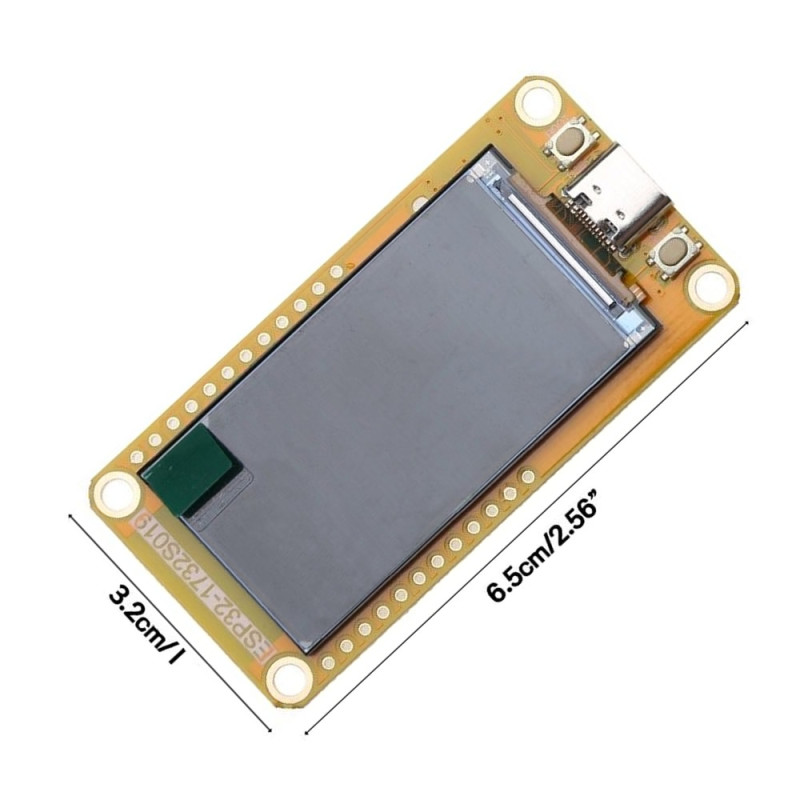

• Dimensions: 50mm x 86mm
• Weight:  40gr

Usb driver: The CH341SER.EXE file must be downloaded via Google and installed.

wch-ic.com/products/CH340.html

Software support:    http://pan.jczn1688.com/directlink/1/ESP32%20module/1.9inch_ESP32-1732S019.zip

Application areas:

• Home automation control panel
• IoT sensor monitoring and control
• Machine view and status display
• Wifi/Bluetooth based data interface
• Audible warning and control systems

Package contents:

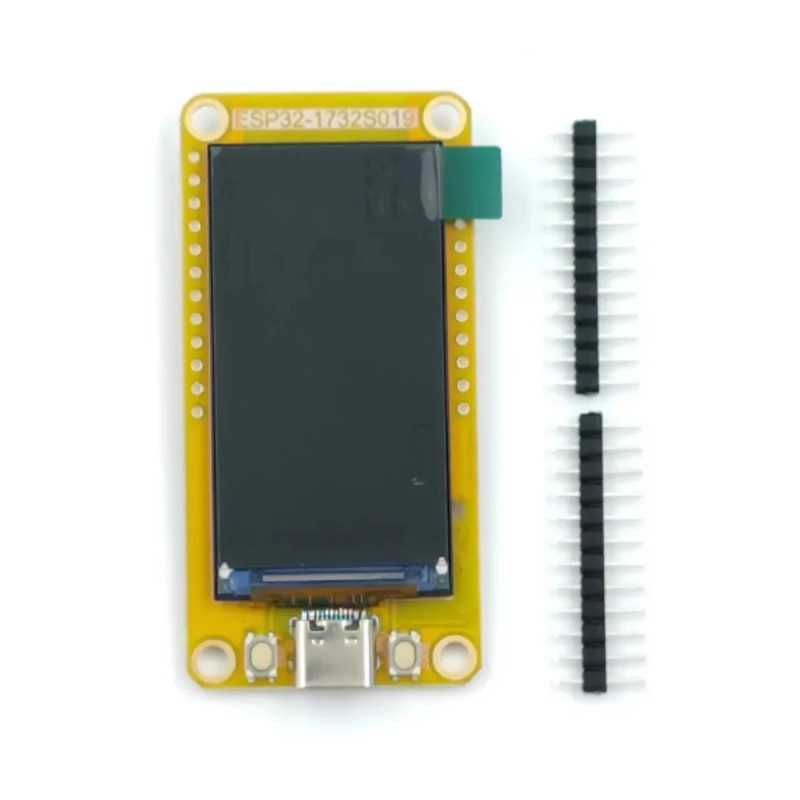

•     1 Piece ESP32-1732S019 1.9inch ESP32-S3 TFT Module
•     1 Piece 4 pin cable
