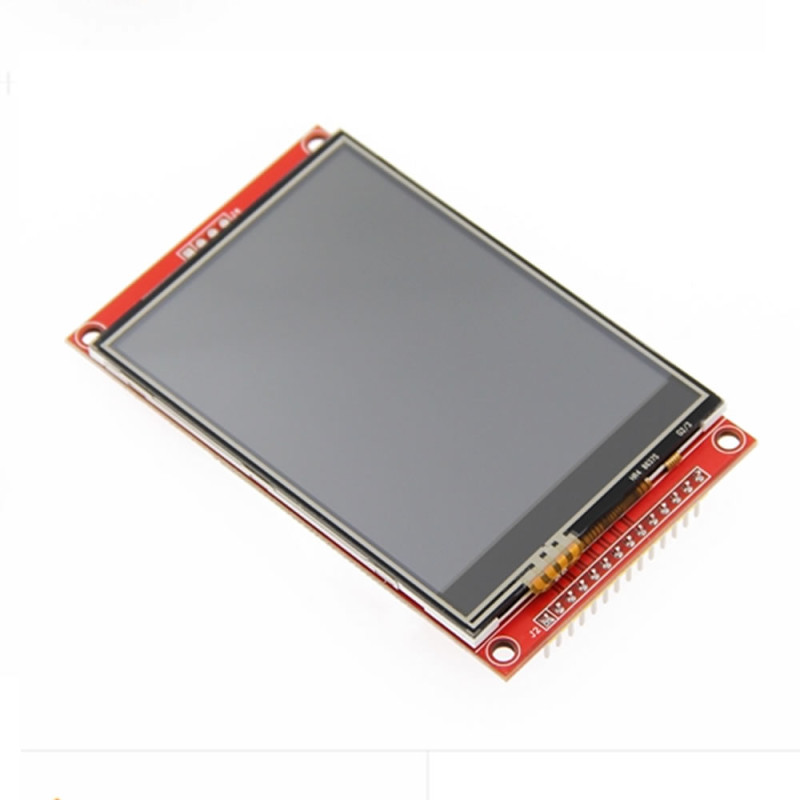

3.2" TFT LCD Module

3.2” 320x240 LCD TFT Module + Touch

ILI9341 SPI Display SD Socket Touch Arduino Raspberry Pi

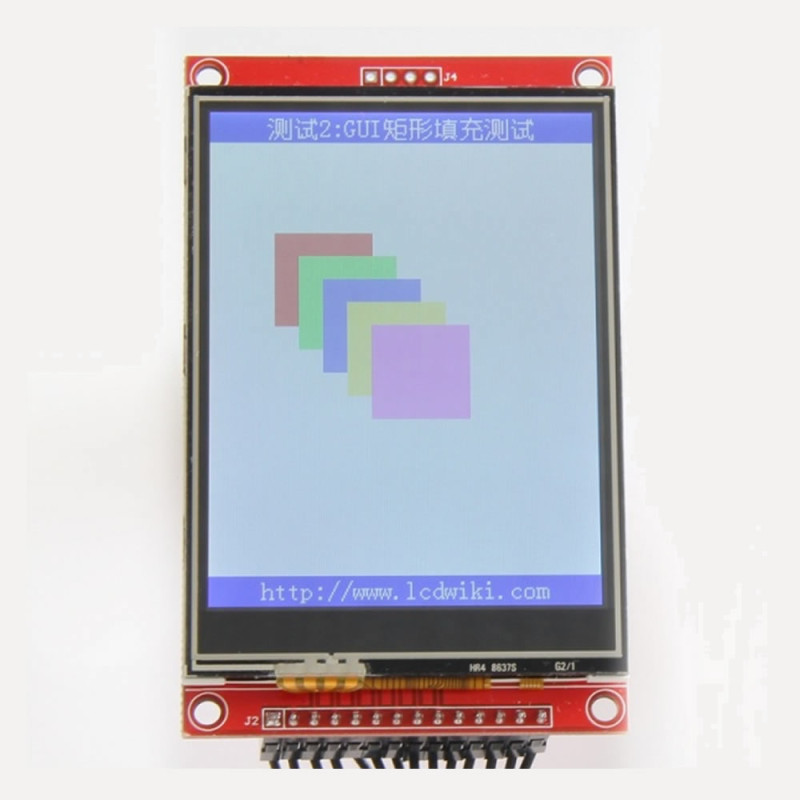

     It is an Arduino mega compatible display with a 3.2” lcd size. There is a socket on the board where an sd card can be inserted. It has a voltage regulator for 3.3V voltage generation.It is driven over a 16 bit data bus. It has an ILI9341 lcd driver IC.

Features:

• Operating voltage: DC 3.3V - 5V
• Current: 90mA
• ILI9341 driver IC
• Lcd size: 3.2”
• Display resolution: 320 x 240 Pixel

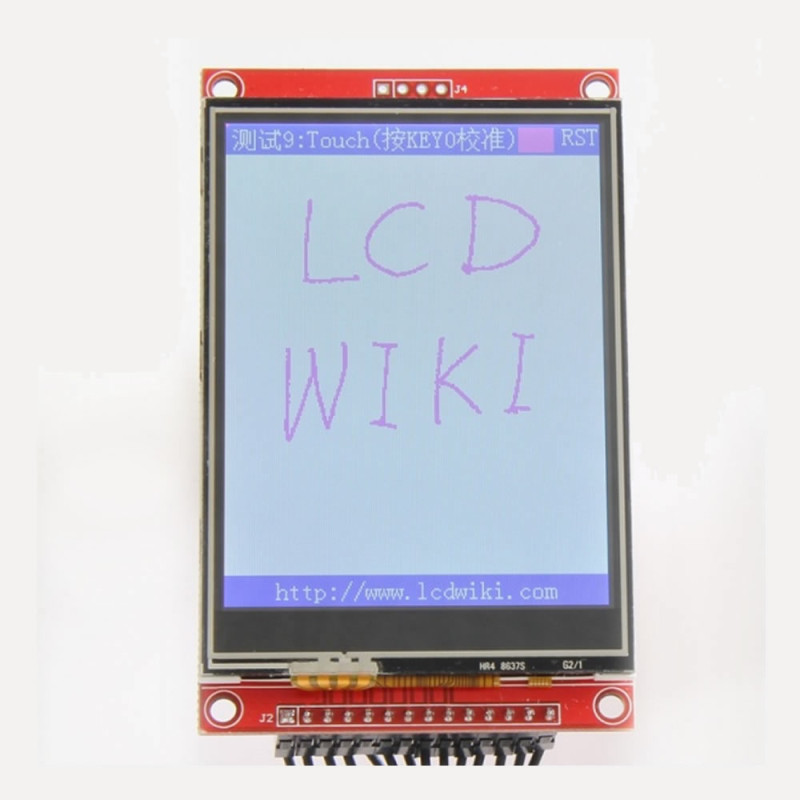

• Resistive touch
• SPI serial communication
• 65k color count
• High brightness white backlight
• Sd card input slot
• Dimensions: 55mm x 90mm
• Weight:  45gr

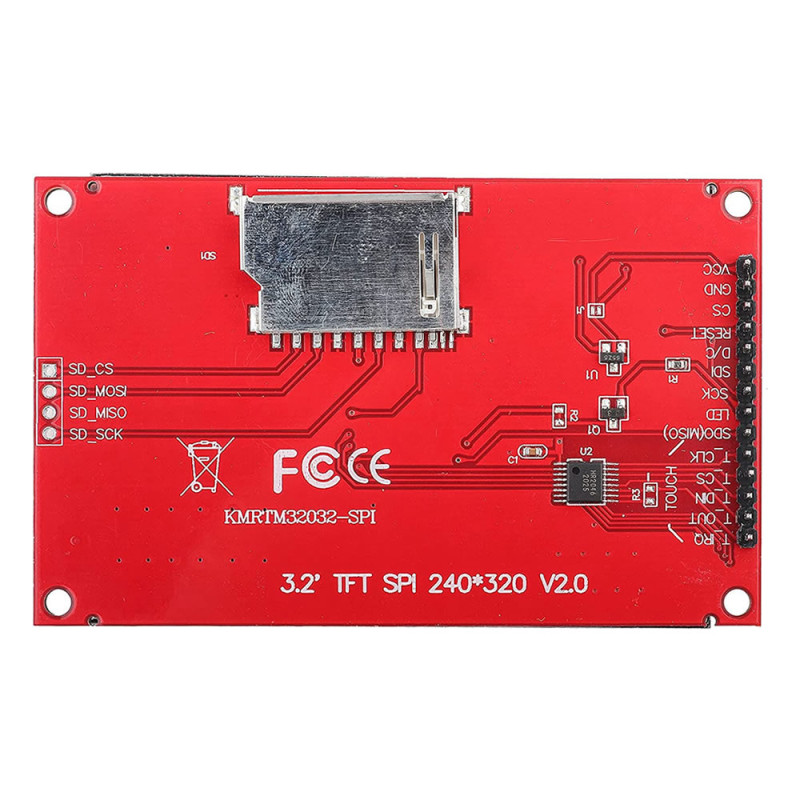

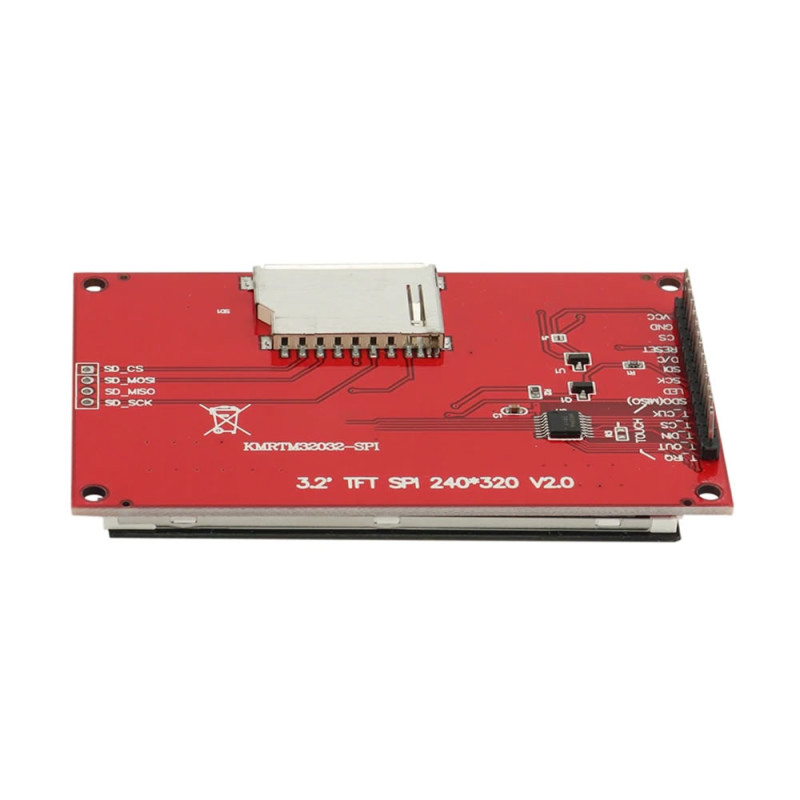

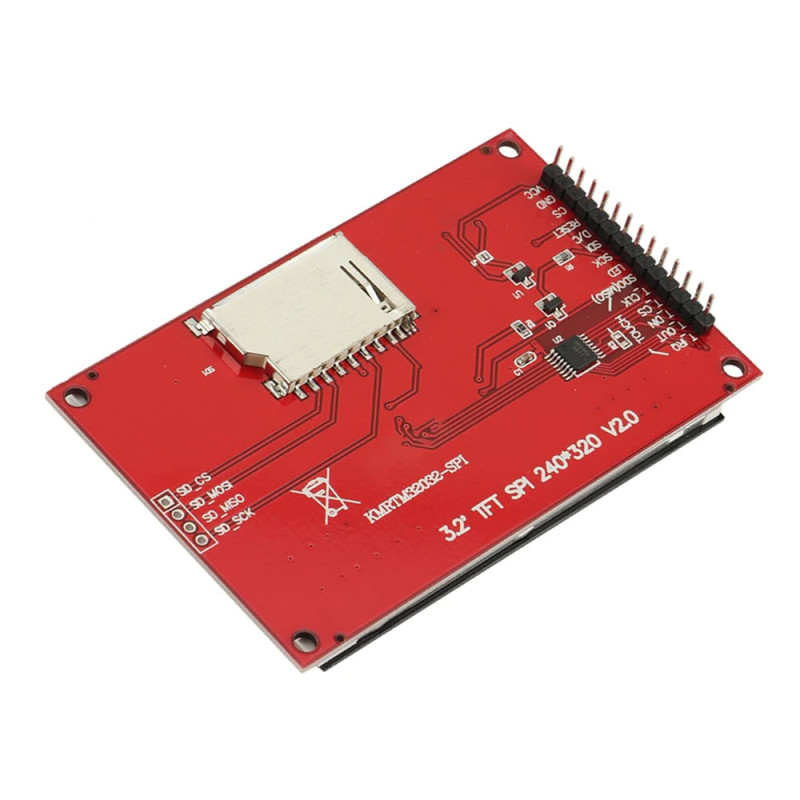

Pin Description:

• VCC power input(3.3V~5V)
• GND Power Ground
• CS LCD Chip Selection
• RESET LCD reset
• DC LCD Bus command/data selection
• SDI(MOSI) LCD SPI Displays bus data input
• SCK LCD SPI Displays bus clock signal 8 LED LCD Backlight control (high level lighting)
• SDO(MISO) LCD SPI Displays bus data output
• T_CLK Touch panel SPI bus clock signal
• T_CS Touch panel SPI busChip Selection
• T_DIN Touch panel SPI bus data input
• T_DO Touch panel SPI bus data outp

Package contents:

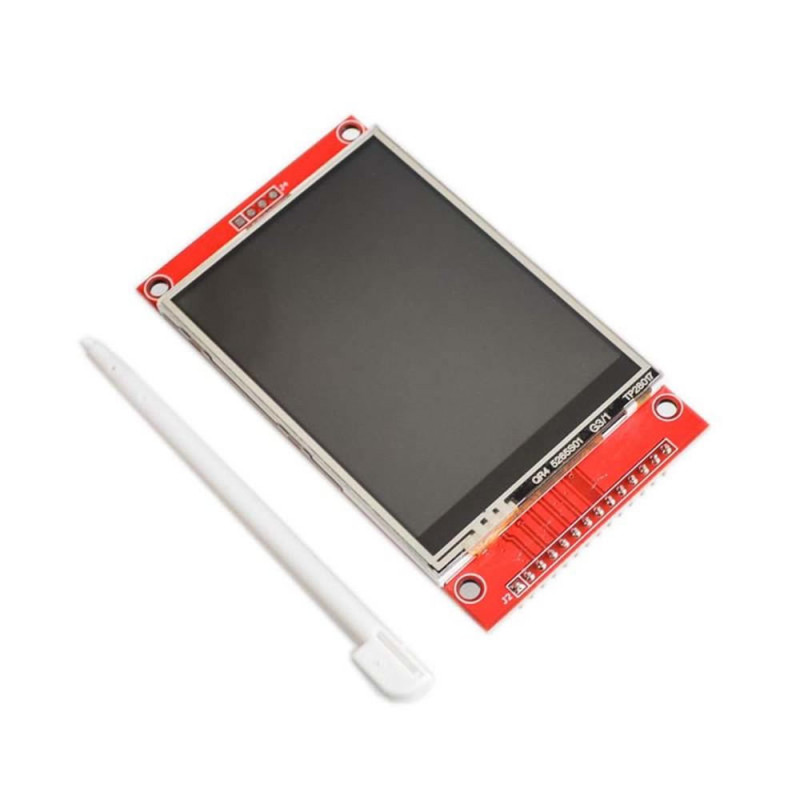

•     1 Piece 3.2" TFT LCD Module
•     1 Piece touch stylus
