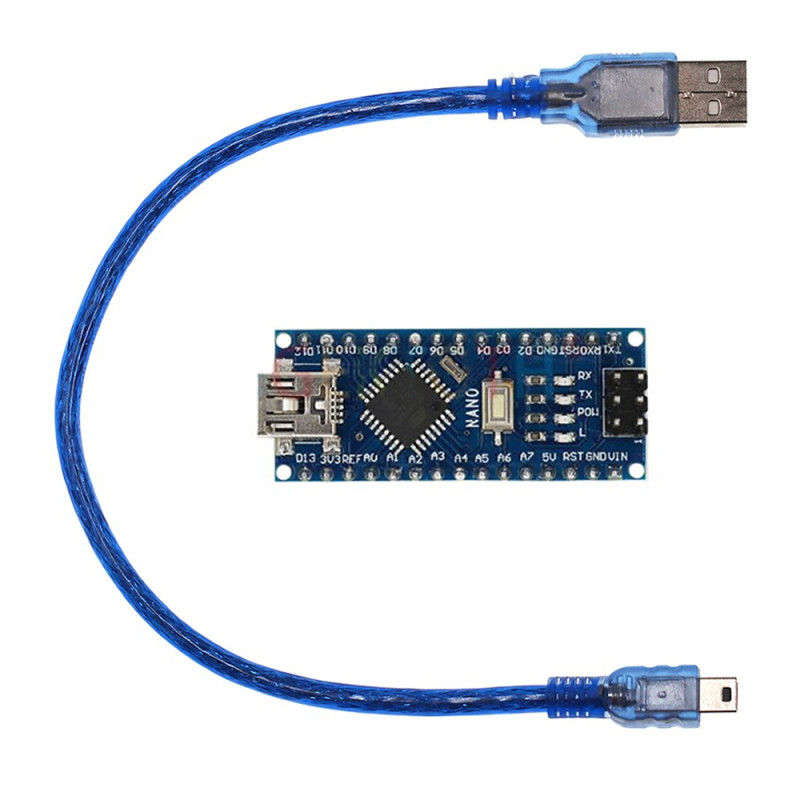

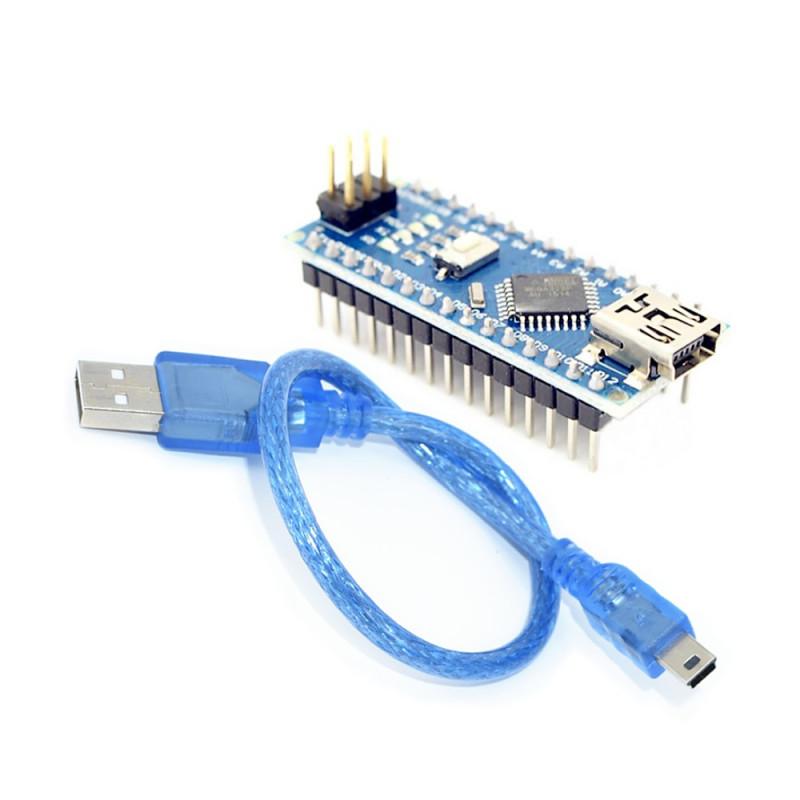

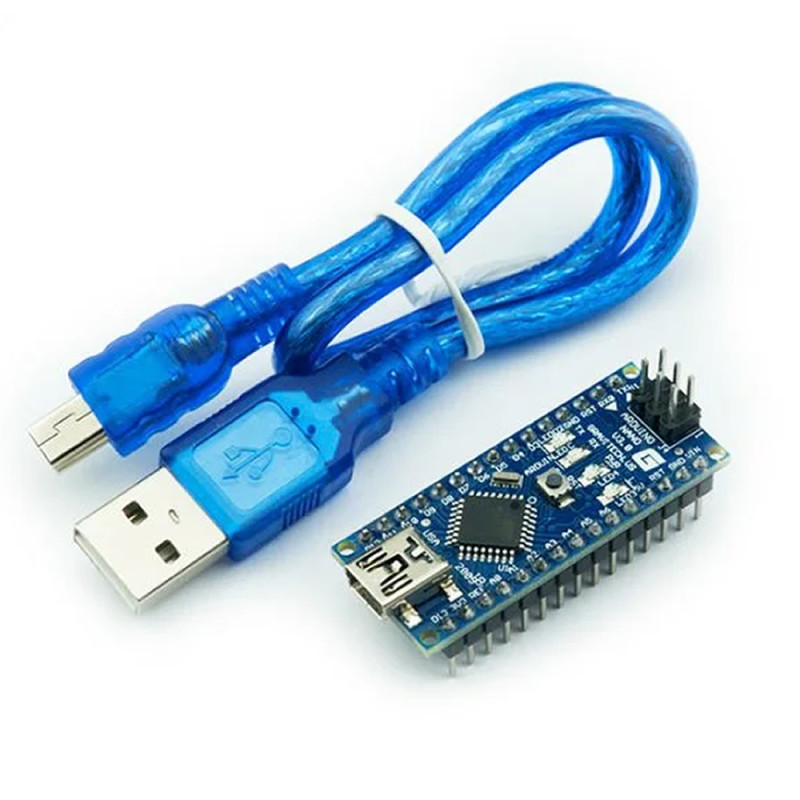

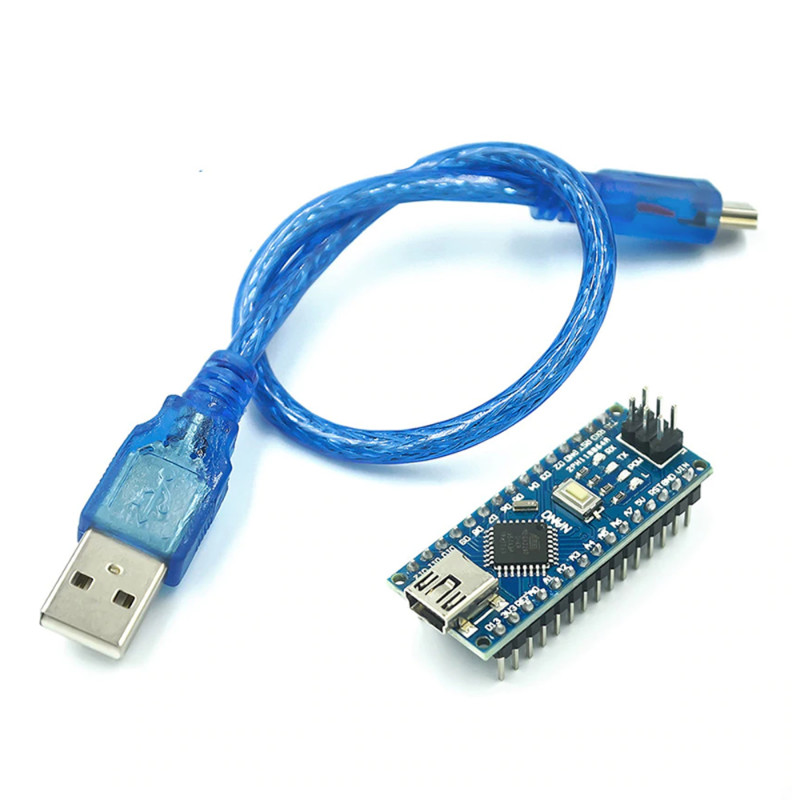

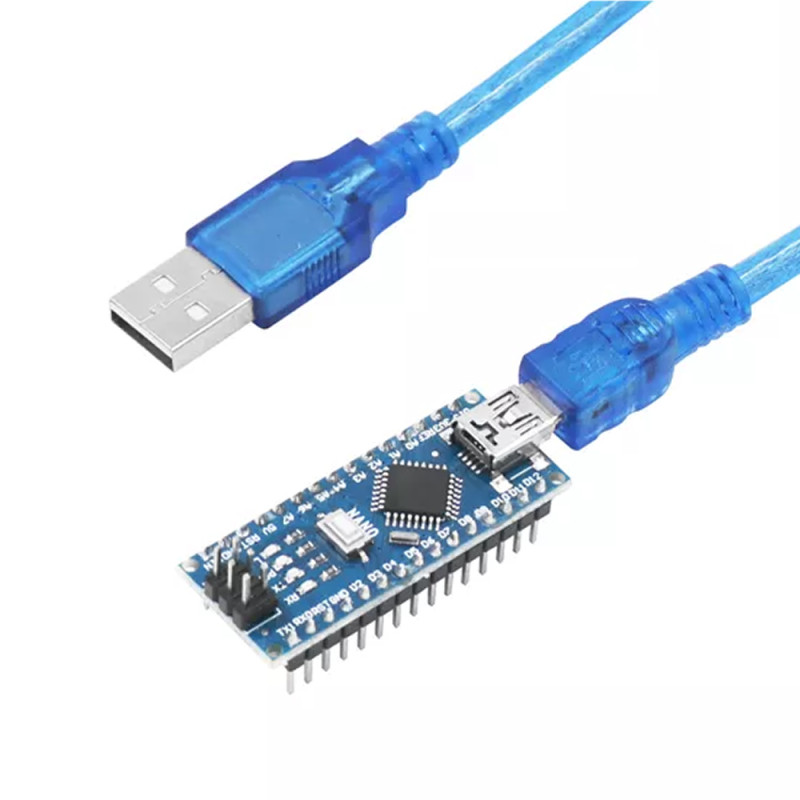

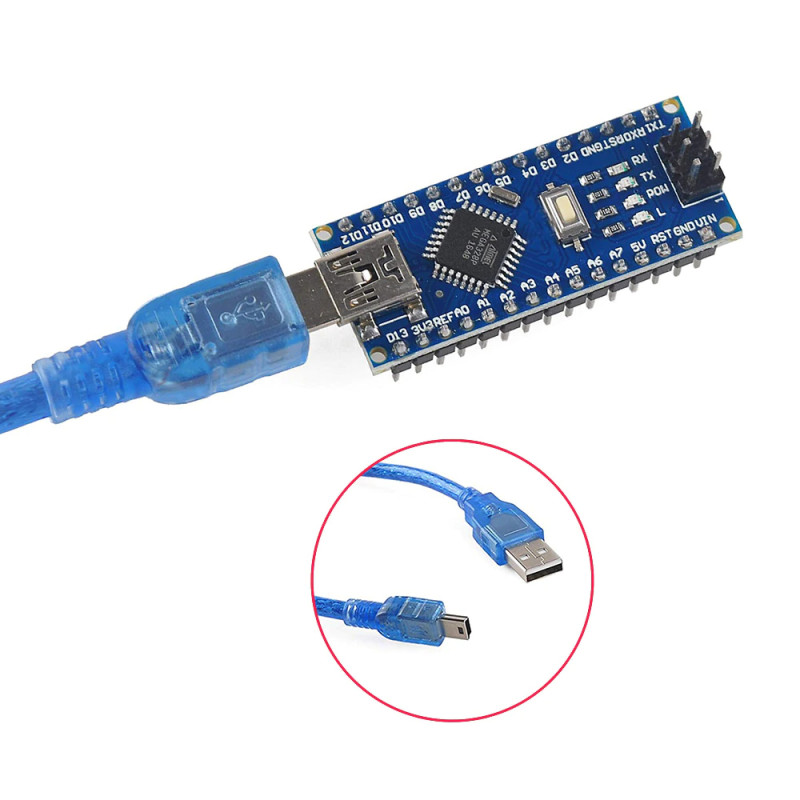

Arduino Nano 3.0 + Usb Cable

Arduino Nano 3.0 Atmega328 USB Cable Gift CH340

Mini Usb Code Software Development Education Board Programming Diy Automation Prototype Circuit Open Source

     The product package will be opened by us. It will be tested by loading a test program. The products that reach you will have been tested and will be in a state where they blink an led every 3 sec. If the product is to be returned, the arduino must be reprogrammable.

If you have trouble uploading a program, apply the setting shown in the image below.

     Arduino Nano 3.0 is an open source development platform. Arduino was designed with the purpose of enabling students and electronics enthusiasts who do not know electronics and programming to easily develop applications.

     A Microchip Atmega328 mcu is used. The board has 14 digital input pins, 6 analog  inputs, a reset button, a miniusb socket and a 16mhz crystal. You can start developing applications immediately by plugging in the usb cable. It can be connected directly to the pc via the CH340G ic on the board. You can program it with the Arduino IDE over the com port created on the pc.

     The board can be powered via the mini usb port and all its functions work fully. It can also be powered with an external supply. The Arduino IO pins are accessible through the empty headers located at the board edges. With the ICSP socket you can also program the arduino using an external programmer when needed.

     Arduino users share a great many example projects on the internet. These range widely from very simple levels to very complex levels. You too can easily learn these projects and use them in developing your own applications. You can also create new applications specific to your own application.

Arduino advantages:

•     The arduino software is very easy to use for beginners. It is flexible enough for advanced users.
•     It can run on all of the Mac, linux and windows operating systems.
•     Arduino kits are very cheap and easily accessible.
•     The arduino software provides a simple and easy programming environment. It is ideal for those who are just starting to learn programming.
•     With its open source structure, a great many application examples can be reached. With its C++ based libraries you can easily develop applications. You can also easily add your Avr-C code to your project if you wish.
•     Again, there is the possibility of developing your applications with open source additional development modules, shields and sensor boards. You can easily make your own additional boards and add them to the arduino boards.
•     Atmel company mcus are found on the arduino boards.
•     There is no need for a programmer. It is both programmed and used for applications over the same board.
•     Thanks to its analog and digital inputs it can sense many inputs.
•     You can produce outputs to the outside world (such as sound, light, motion etc).
•     It is widely used. Thanks to this there is the possibility of finding plenty of resources on the internet.

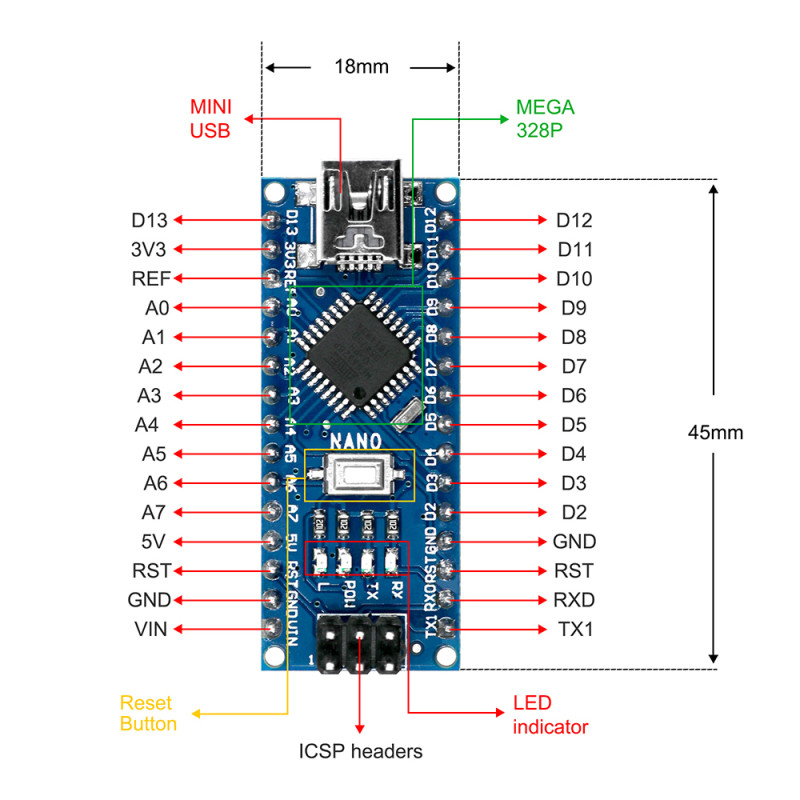

Specifications:

•     Ic: Atmega328
•     Speed: 16MHz
•     Operating voltage: DC  5V ( Mini usb )
•     Usb power and communication port: Mini Usb ( Cable is not included.)
•     External supply voltage: DC  7V / 12V
•     Usb ttl converter: CH340G
•     Digital IO count: 14 ( pwm support on 6 of them )
•     Analog IO count: 8
•     IO current capacity:  40mA
•     Flash memory:  32 KB
•     Sram memory:  2 KB
•     Eeprom memory:  1 KB
•     Reset button
•     4 indicator leds. Power(On), User (L), Rx, Tx
•     Color: Blue
•     Operating temperature:  -10  /  80C

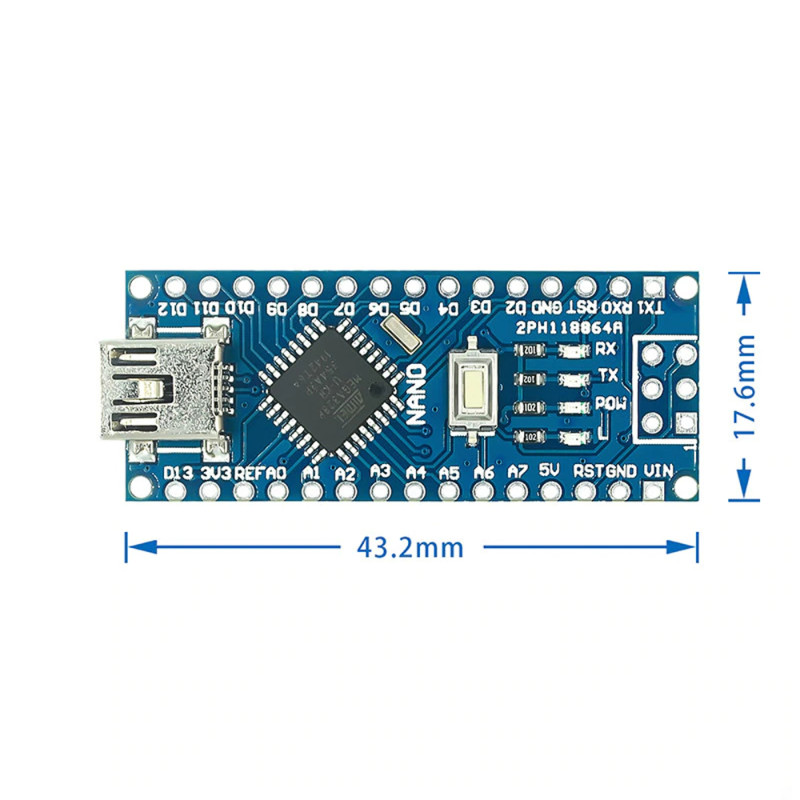

•     Dimensions:  18mm x 45mm
•     Weight:  20gr

Driver : The CH341SER.EXE file must be downloaded via Google and installed. When you connect the board to the computer, a new com port is created under "ports". This com port is selected and used in the Arduino IDE.

wch-ic.com/products/CH340.html

Package contents :

•    1 Piece  Arduino Nano 3.0 Atmega328
•    2 Pieces 15 pin male header
•    1 Piece 2x3 pin male header
•    1 Piece Mini usb cable
