NRF24L01 Adapter Board

NRF24L01 Adapter Board

NRF24L01+PA+LNA 8 Pin Converter Circuit 12V Robot Car Drone Wireless Communication Transceiver

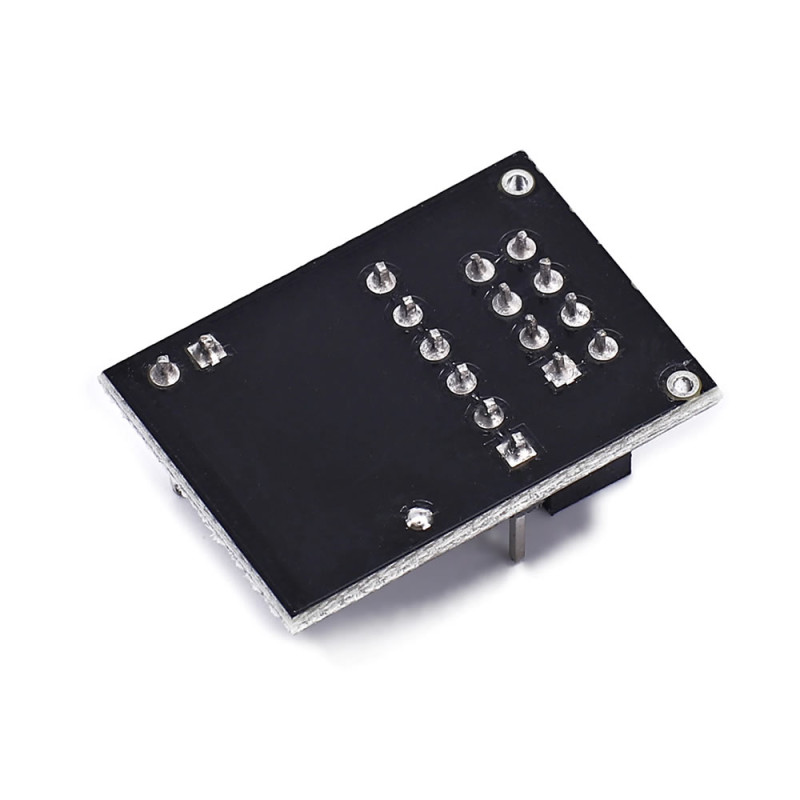

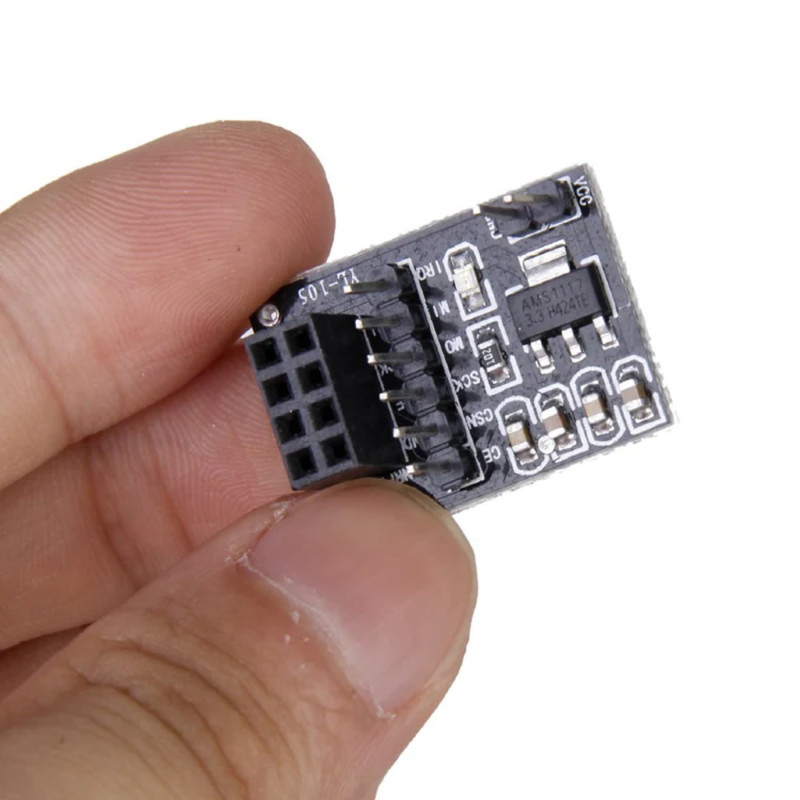

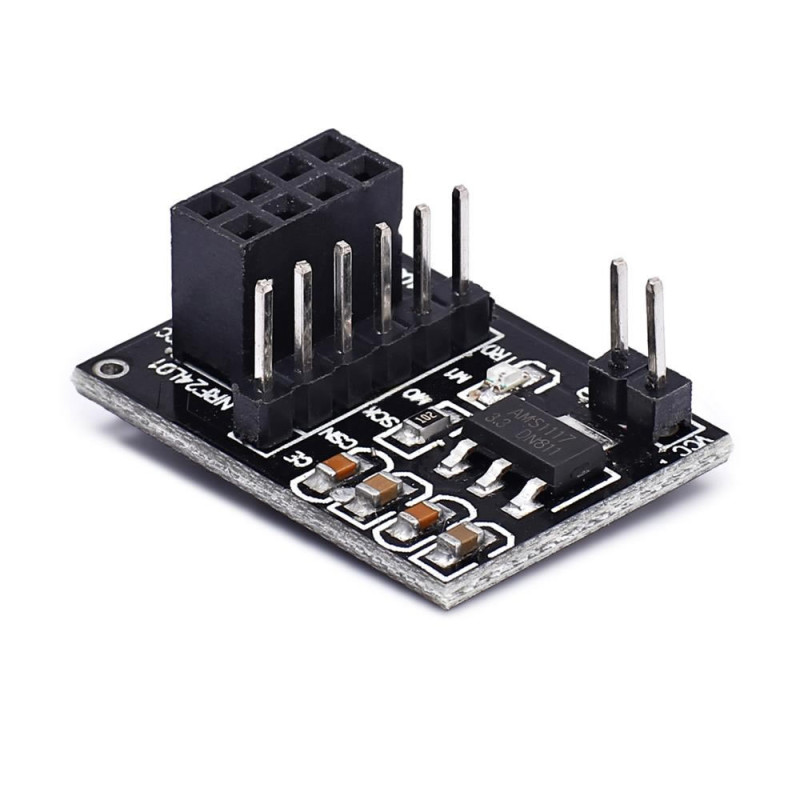

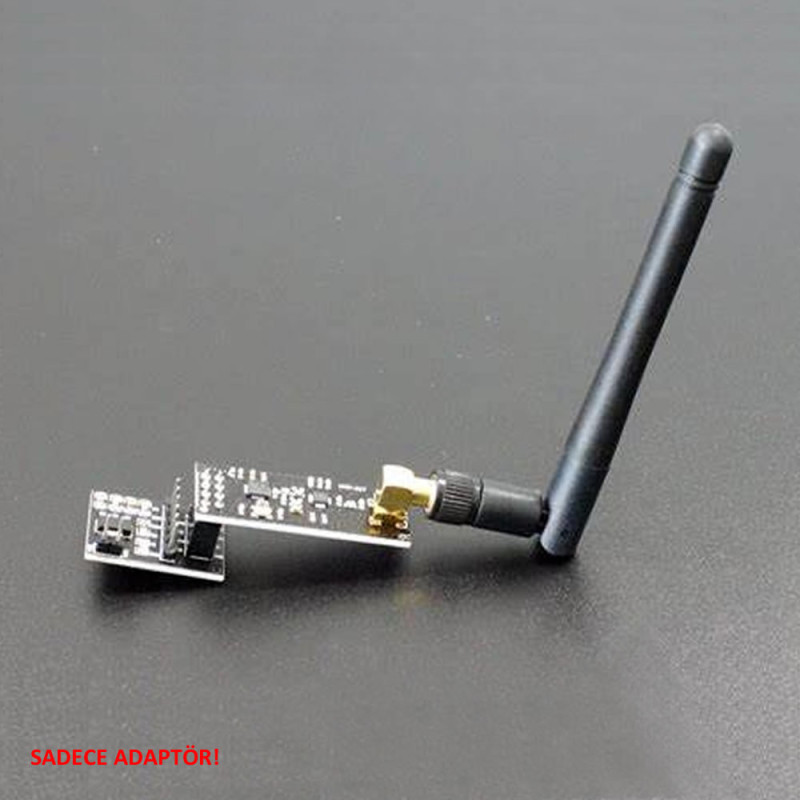

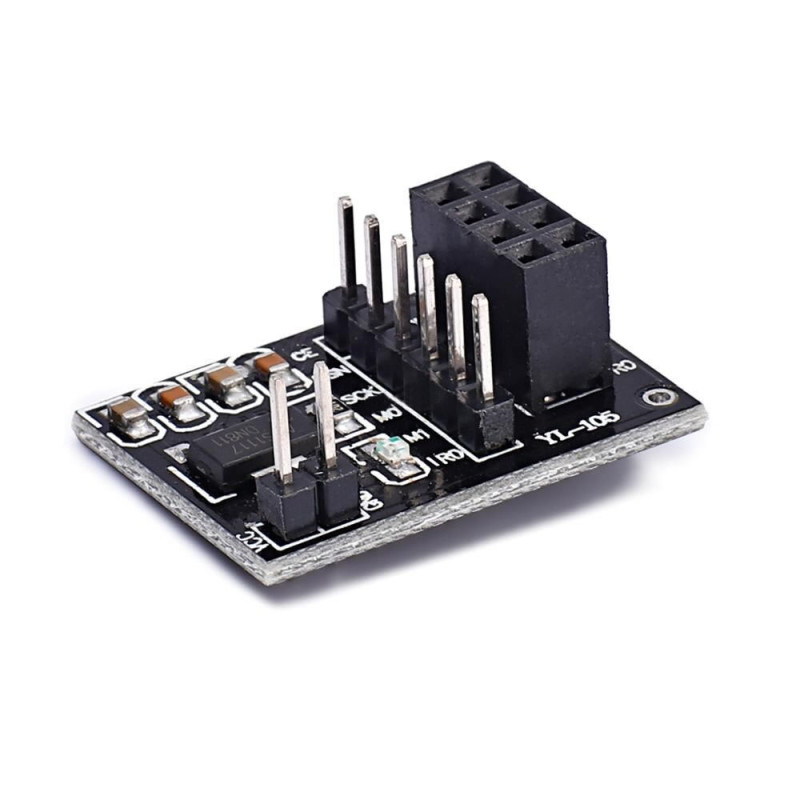

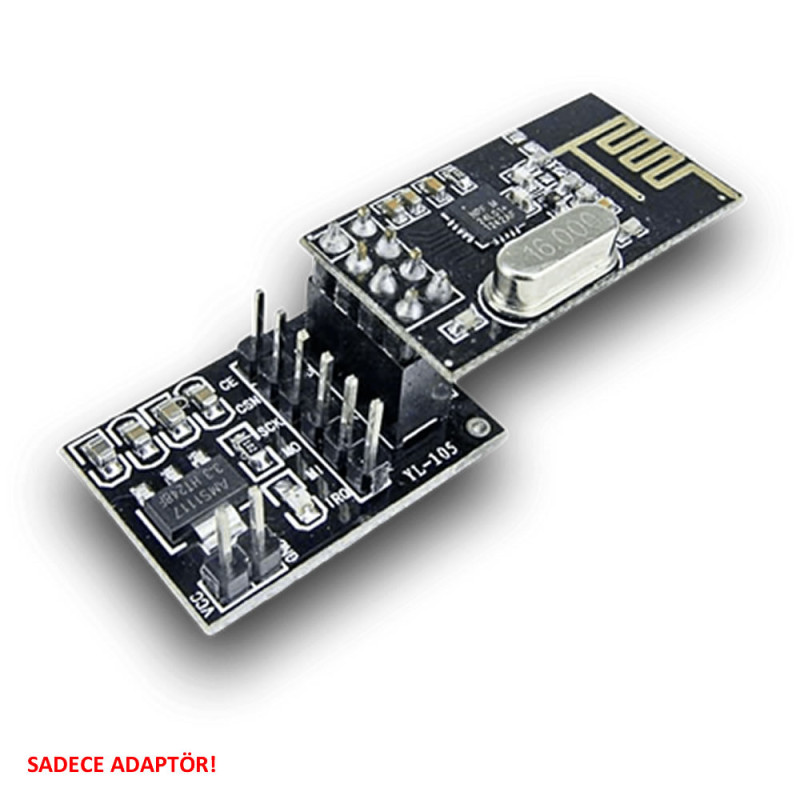

     It is an adapter board that meets needs such as easy connection and power supply for NRF24L01 and NRF24L01+PA+LNA boards. There is a 2x4 pin female header socket compatible with Nrf modules. With the 6 pin male header on the board, it provides easy access to the nrf module pins with various dupont cables. There is a 2 Pin male header supply connection socket. External supply is connected over this socket. External supplies up to DC 12V are reduced to the 3.3V level with the regulator on the board and used as nrf module supply.

Features:

•      Compatible modules: NRF24l01  /  NRF24L01+PA+LNA
•      2x4 Pin female header nrf module connection
•      1x6 Pin male header
•      Ams1117 3.3V ldo regulator
•      Operating voltage:  DC 12V (  The product may be damaged at higher voltages. )
•      Supply indicator led.
•      2 Pieces mounting hole
•      Operating temperature:  -15C  /  +80C
•      Color: Black

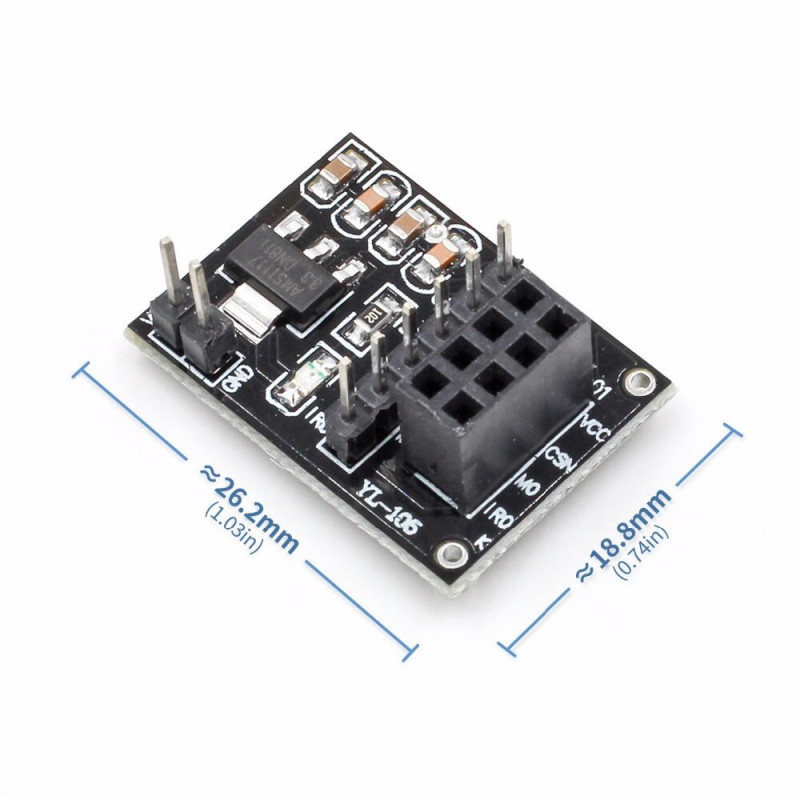

•      Dimensions: 18.8mm x 26.2mm
•      Weight: 3gr

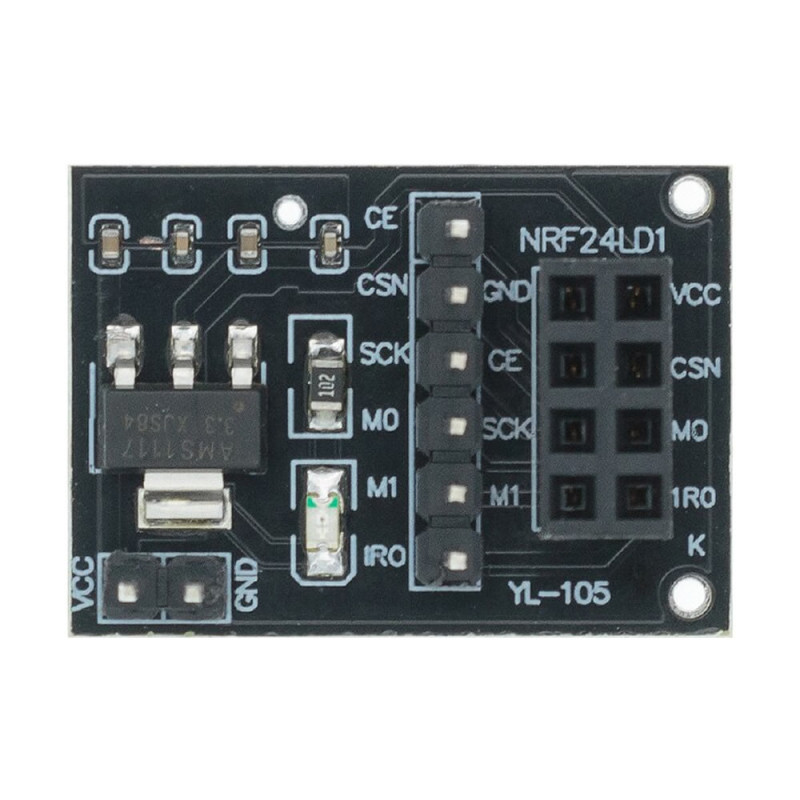

6 Pin Socket Pins:

• CE : Module active. RX or TX Mode
• CSN : SPI selection
• SCK : SPI clock
• MOSI : SPI Slave Data input
• MISO : SPI Slave Data Output (Generally not used)
• IRQ: Interrupt

Package Contents :

•      1 Piece NRF24L01 Adapter Board
