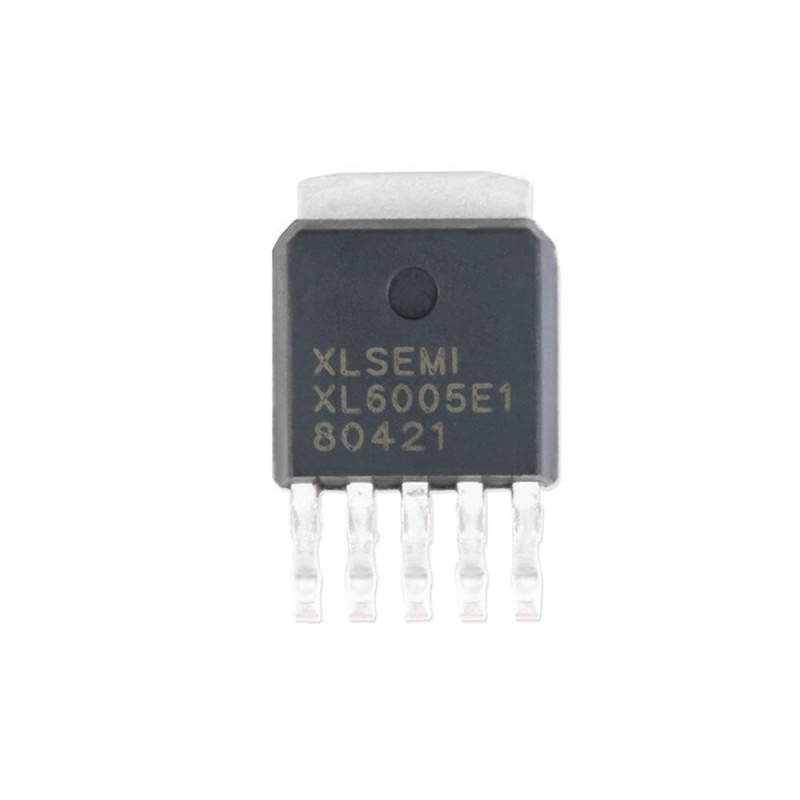

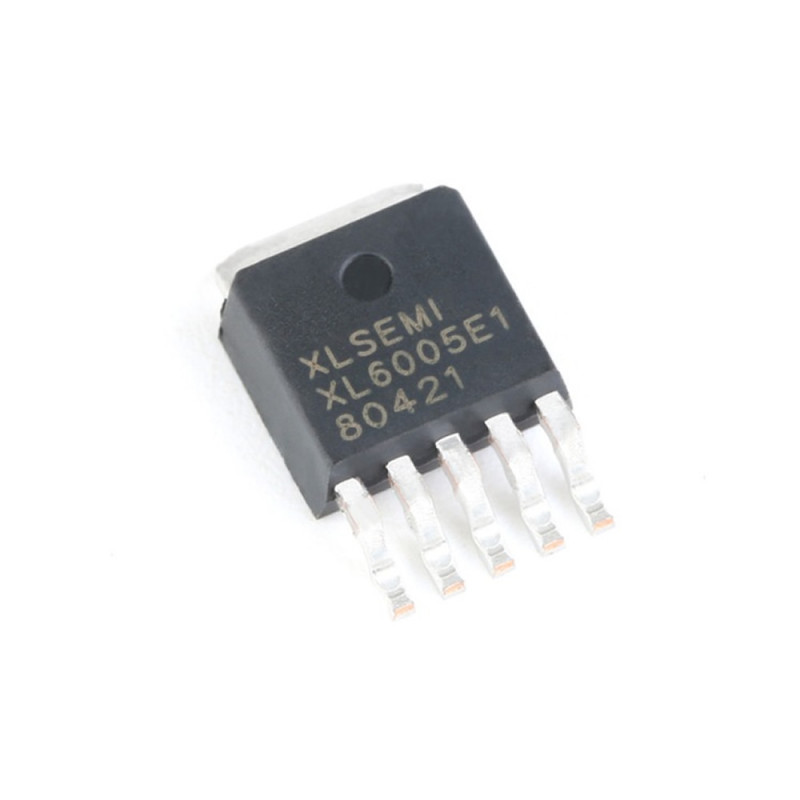

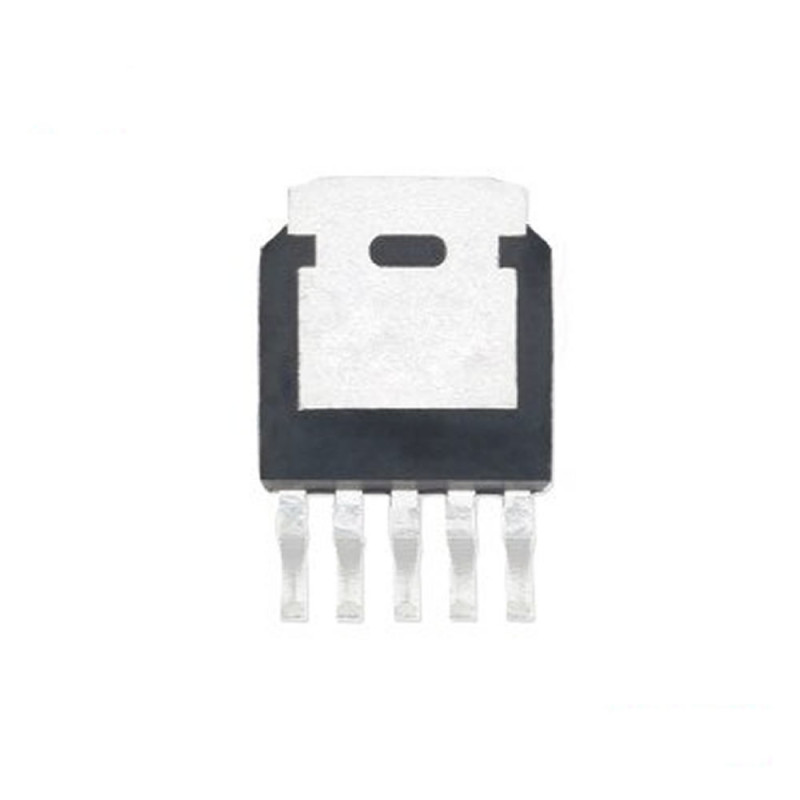

XL6005E1 Sabit Akım Led Sürücü Entegresi

XL6005E1 60V 4A Anahtarlamalı Voltaj Yükseltici Sabit Akım Led Sürücü Entegresi

General Description
     The XL6005 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of
external components to work.

     The XL6005 could directly drive 11 Series 1W LED units at VIN>=12V .

     The PWM control circuit is able to adjust the duty ratio linearly from 0 to 90%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

Features

•  Wide 3.6V to 32V Input Voltage Range
•  0.22V FB adjustable LED drive current
•  Directly drive 11 Series 1W LED at VIN>=12V
•  Fixed 180KHz Switching Frequency
•  Max. 4A Switching Current Capability
•  Up to 94% efficiency
•  Excellent line and load regulation
•  EN PIN TTL shutdown capability & With PWM Dimming Function
•  Internal Optimize Power MOSFET
•  Built in Soft-Start Function
•  Built in Frequency Compensation
•  Built in Thermal Shutdown Function
•  Built in Current Limit Function

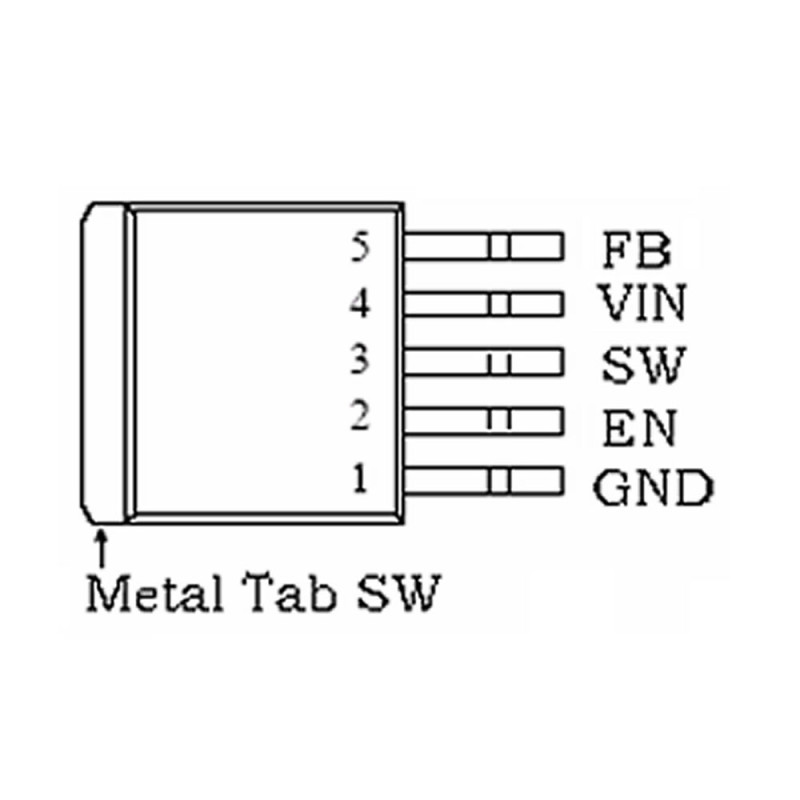

•  Available in TO252-5L package

Applications

•   LED Lighting
•   Boost constant current driver
•   Monitor LED Backlighting
•   7’ to 15’ LCD Panels
