MSP-EXP430G2ET MSP430 LaunchPad

MSP-EXP430G2ET

MSP430 LaunchPad Development Board MSP430G2553IN20 16 MHz Mcro Usb Ezfet Debug Probe Programmer Emulator

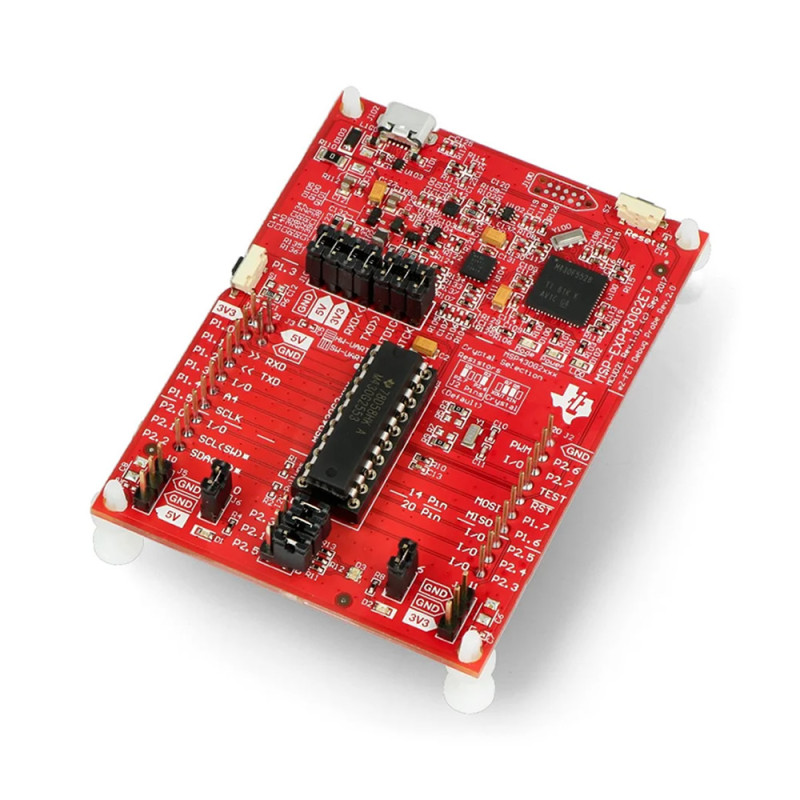

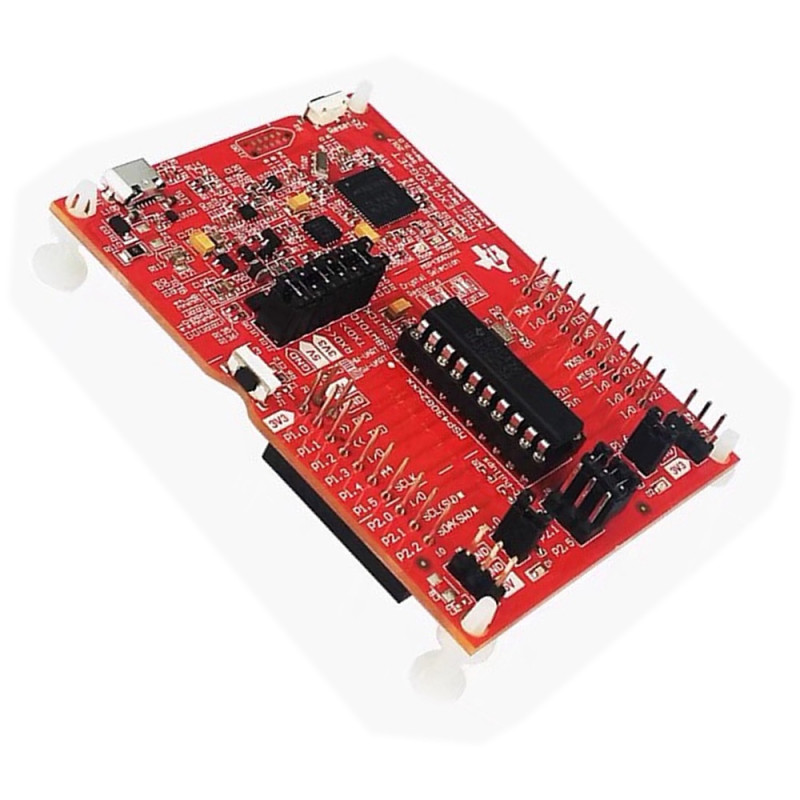

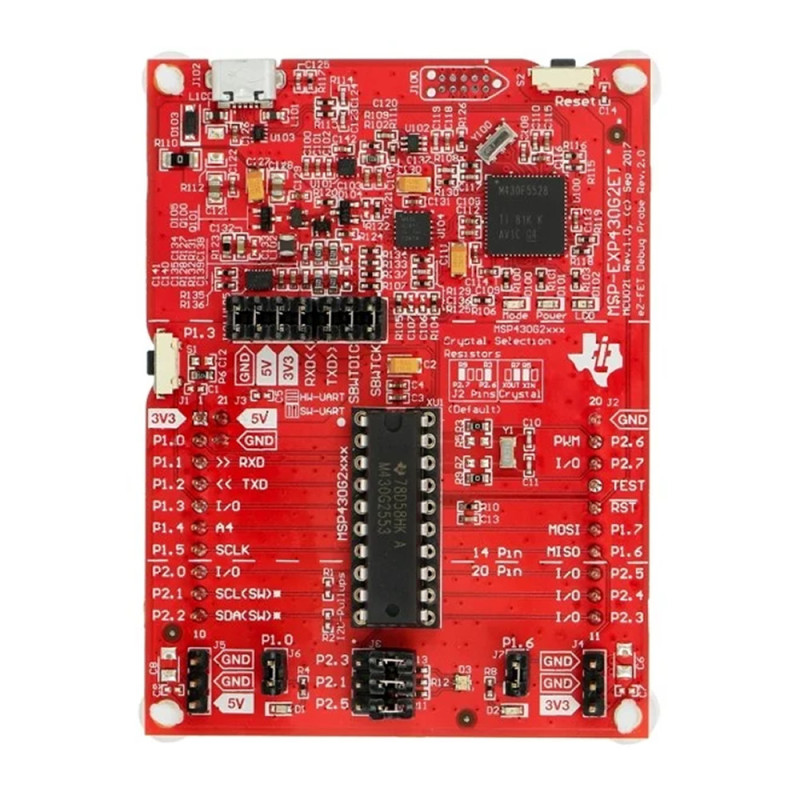

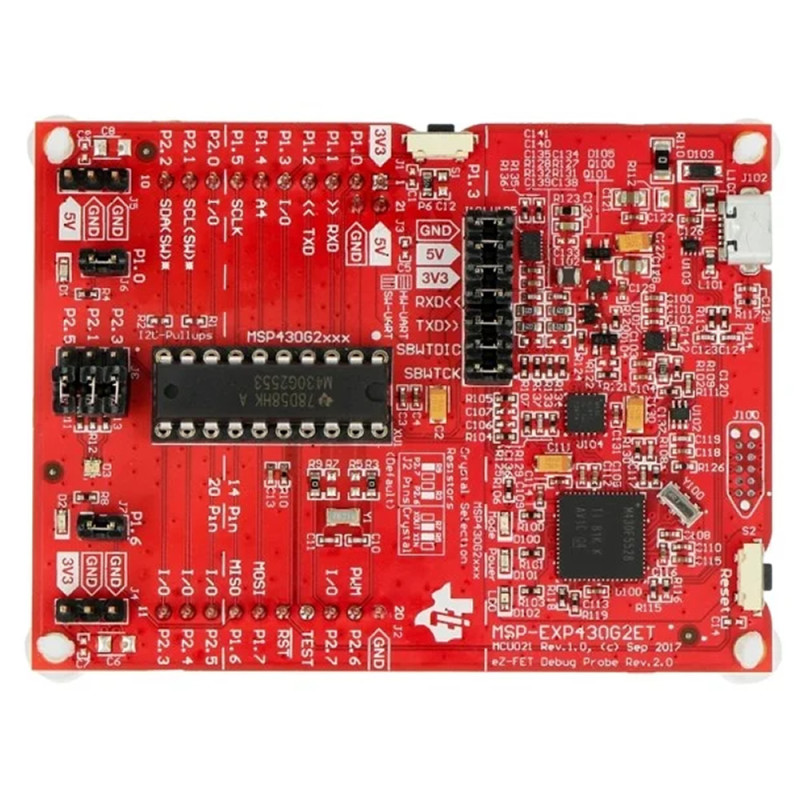

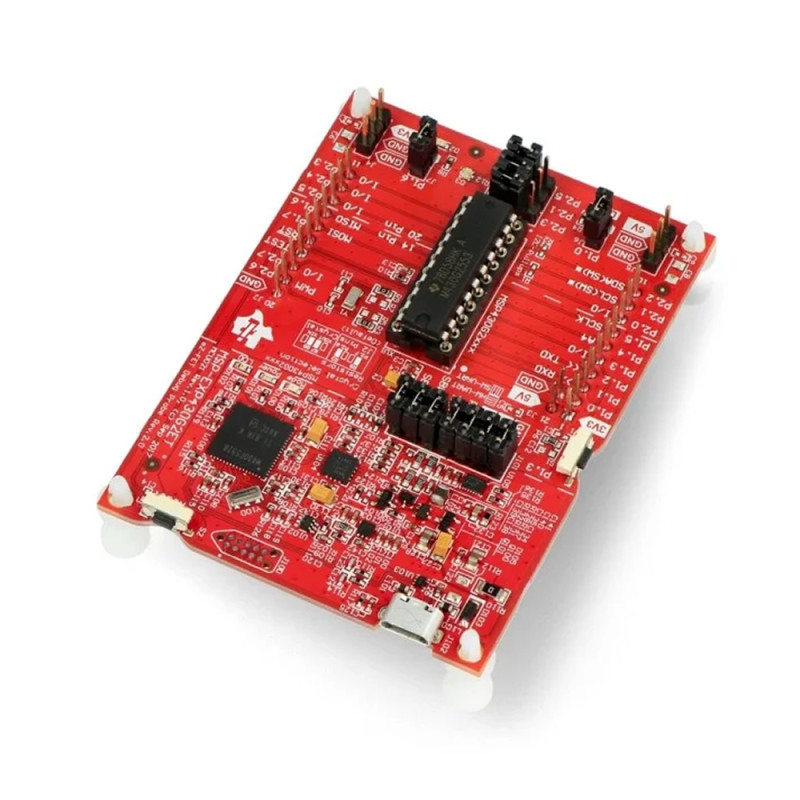

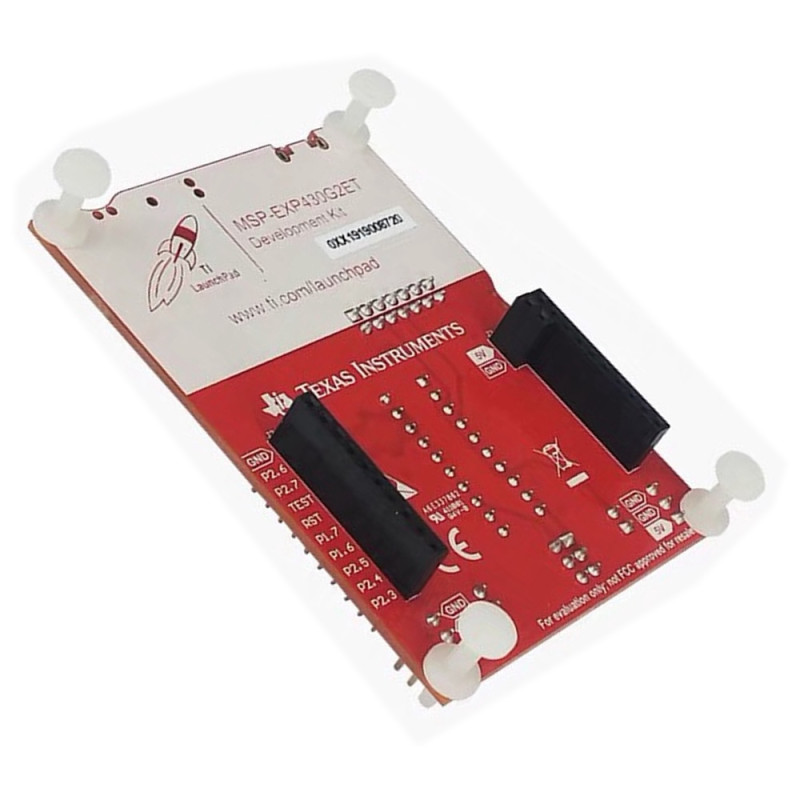

     The MSP-EXP430G2ET LaunchPad Development Kit is an easy-to-use microcontroller development board for the low-power and low-cost MSP430G2x MCUs. It has on-board emulation for programming and debugging and features a 14/20-pin DIP socket, on-board buttons and LEDs & BoosterPack™ Plug-in Module pinouts that support a wide range of modules for added functionality such as wireless, displays & more.

     Development board with two MSP-EXP430xx microcontrollers equipped with 16/8 kB Flash, 512/256 B RAM, 16-bit Timer, 10-bit ADC. The module features microUSB connector, GPIO pin outs and more.

Features:

• MSP-EXP430GET

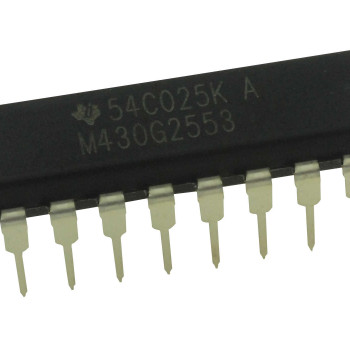

• MSP430G2553IN20
• Clocking: up to 16 MHz
• RAM: 512 B  Flash memory: 16 KB
• 16-bit Timer 10-bit ADC
• Communication: SPI, I2C, UART
• 14-/20-pin DIP (N) Socket

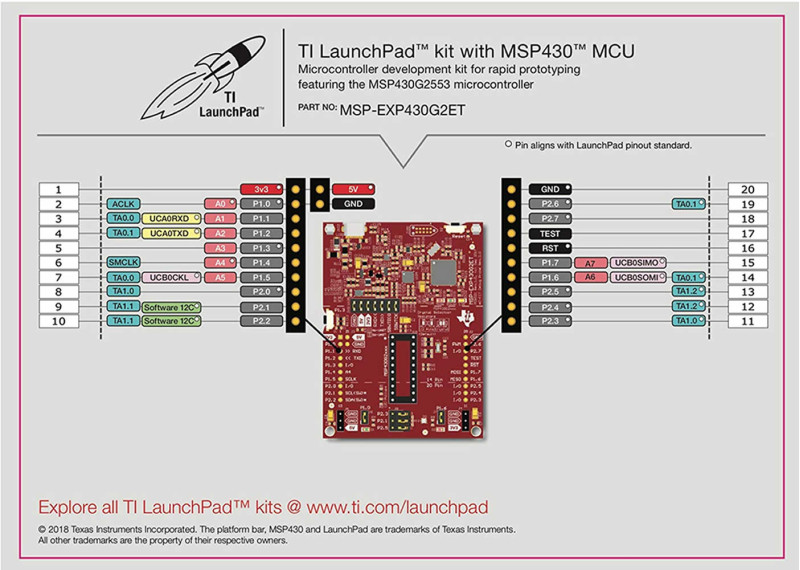

• 20 pin LaunchPad standard leveraging the BoosterPack ecosystem
• On-Board EZ-FET emulator featuring EnergyTrace technology
• Supports MSP430G2xx2, MSP430G2xx3, and MSP430F20xx devices in PDIP14 or PDIP20 packages
• 1 user buttons and 3 LEDs for user interaction
• Mcro usb connector for programming
• Reset button

What's Included

• MSP-EXP430G2ET LaunchPad Development Kit
• MSP430G2553IN20 flash device (preloaded with sample program)
• Micro USB Cable
