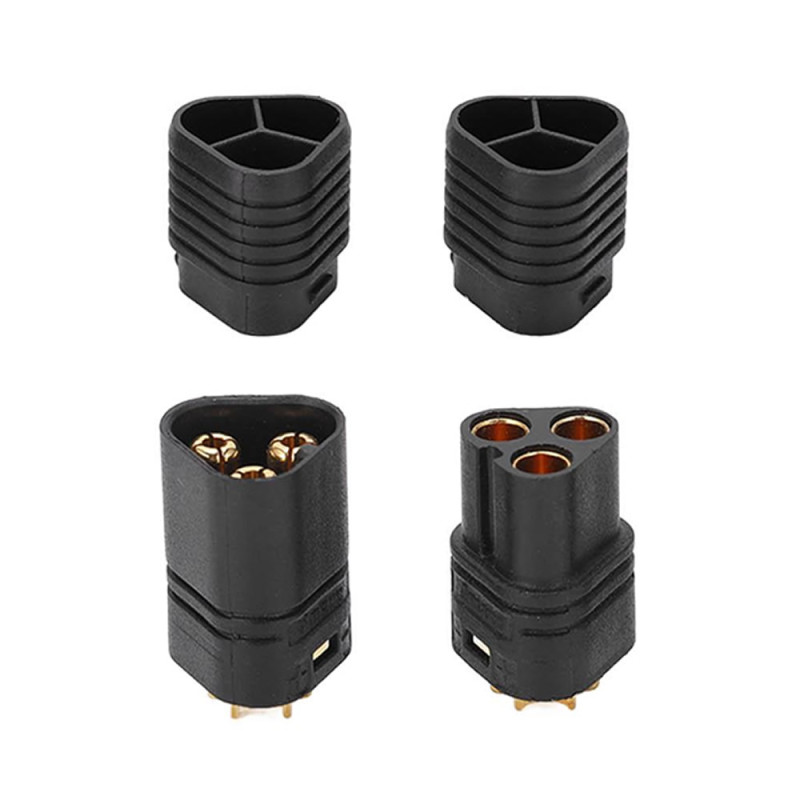

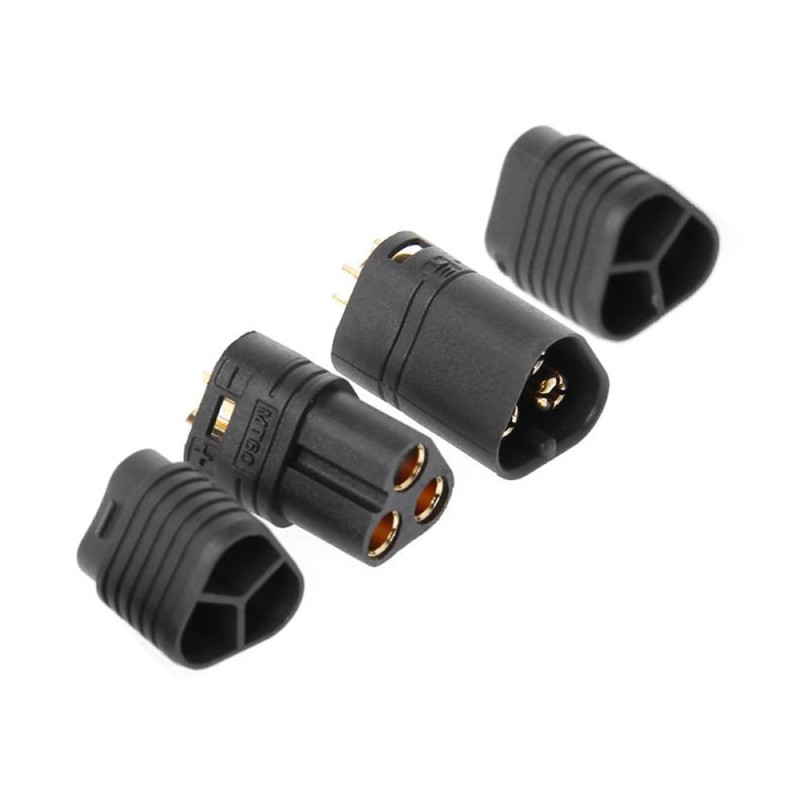

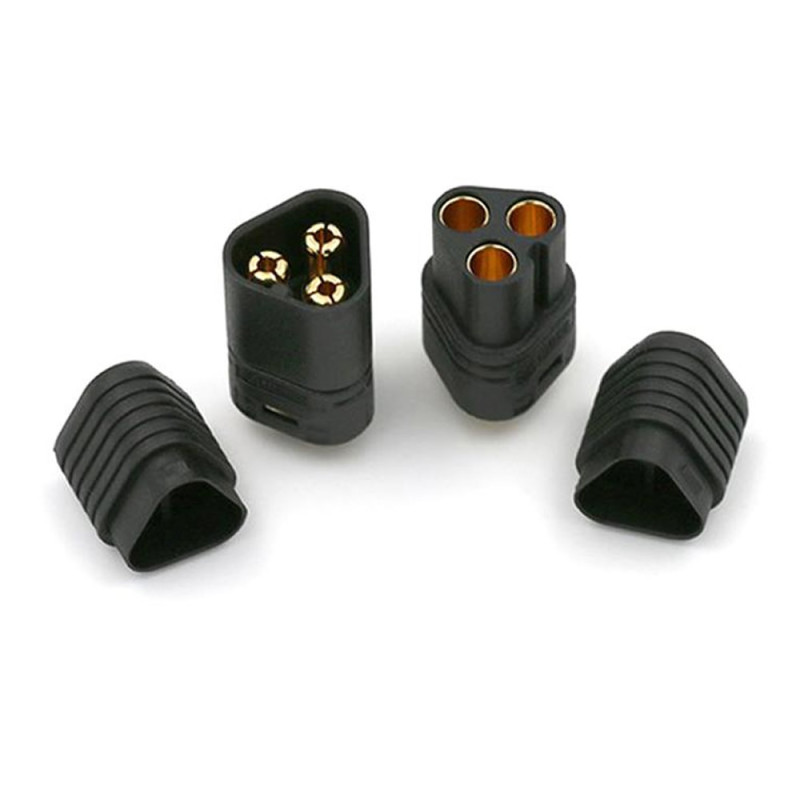

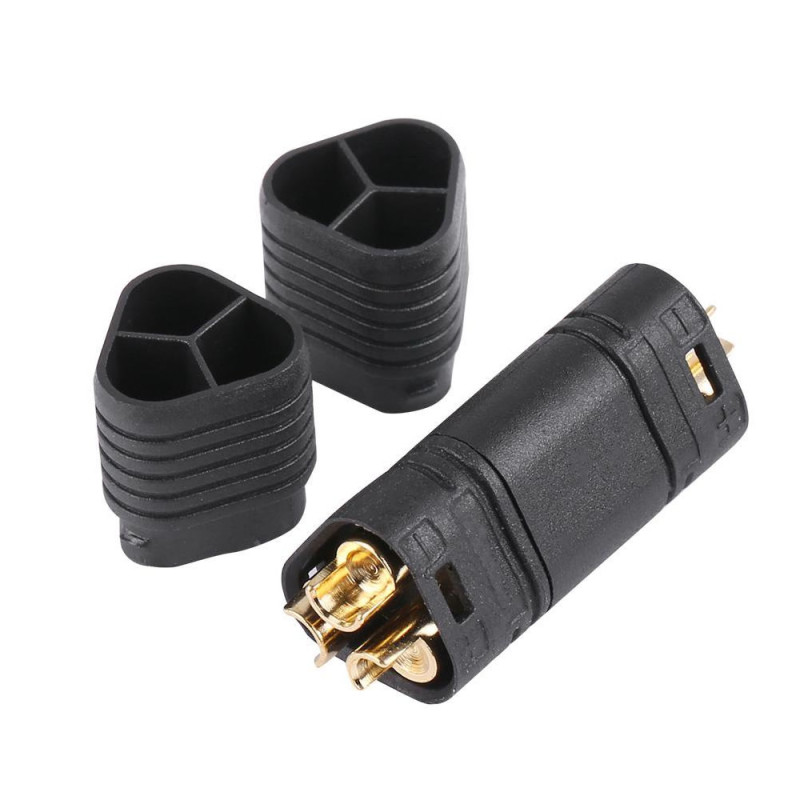

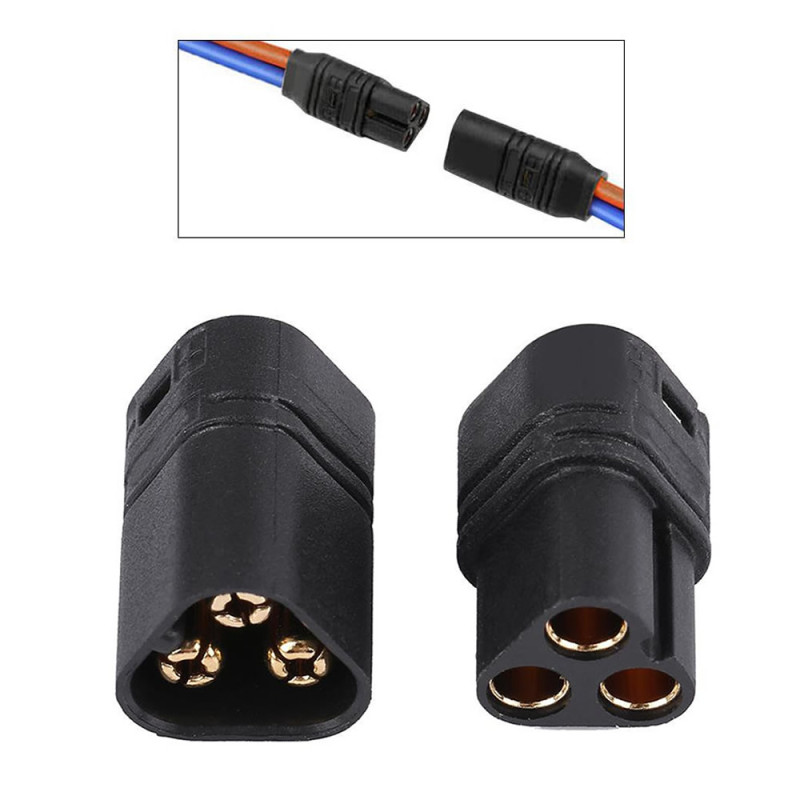

MT60 Connector Pair

     MT60 are 3 pin connection connectors manufactured from metals showing low resistance and having a 30A ( Max 60A) high current carrying capacity. It comes as a female male pair. They seat fully and tightly into each other. The electrical connection is provided without any problem. There is a physical plastic housing design that prevents reverse connection. It is suitable for use with your high current capacity lithium lipo batteries.

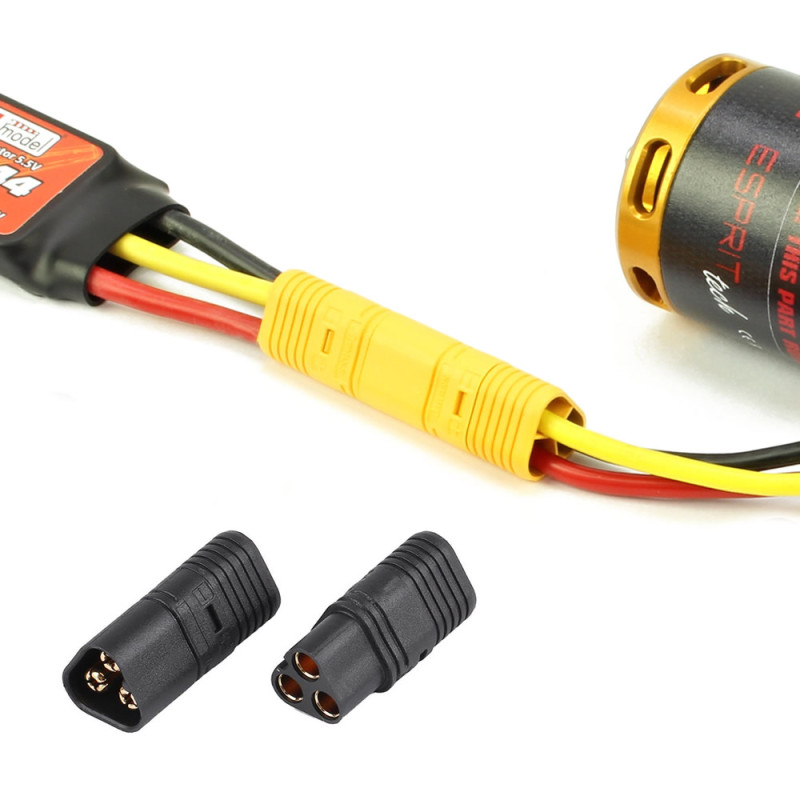

     The plastic materials of the housings are of a structure that can withstand the temperature that will arise as a result of high current. With these connectors, operations such as various connections, extensions, adapters and battery connections can be made. It can be used in lipo batteries, in RC vehicles, in robots and in high amperage connections. You can use it with brushless motors that draw high current.

Features:

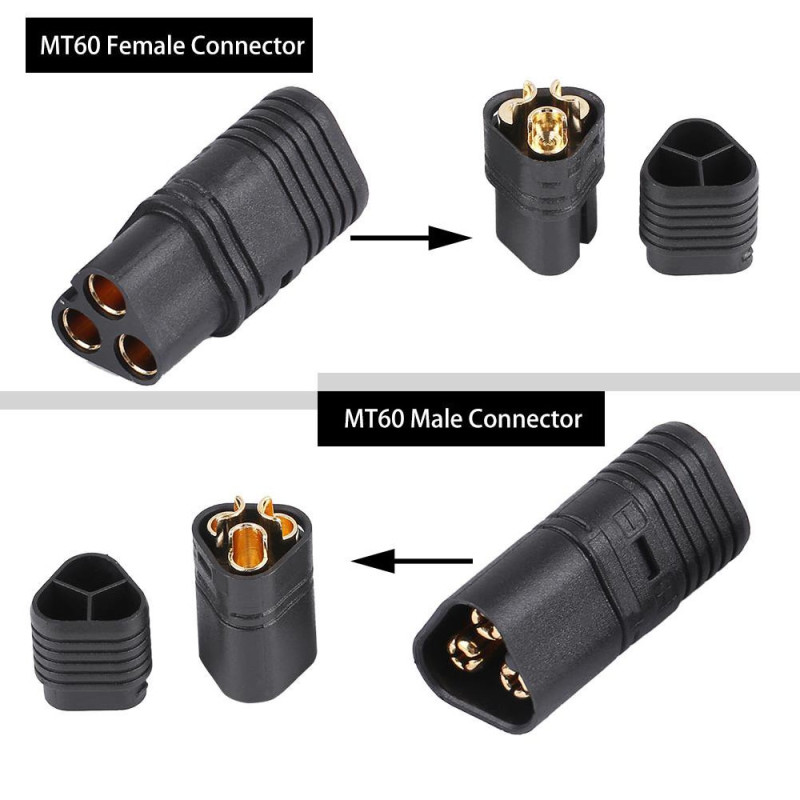

• MT60 3 pin female and male socket pair
• Operating voltage: DC 500V maximum
• Operating current:  30A ( Momentary 60A ( 1 minute))
• Physical design that prevents short circuit and reverse connection.
• The semi open end provides ease for soldering.
• It is used for high current connections..
• Non slip structure solid connection
• Bullet pin diameter:  3.5mm
• Cable thickness: 12Awg maximum
• Resistance: 1mohm
• Quality plastic and metal material
• Non flammable plastic material
• Operating temperature: -20C  /  120C
• Life: 1000 plug unplug
• Color: Black / Gold

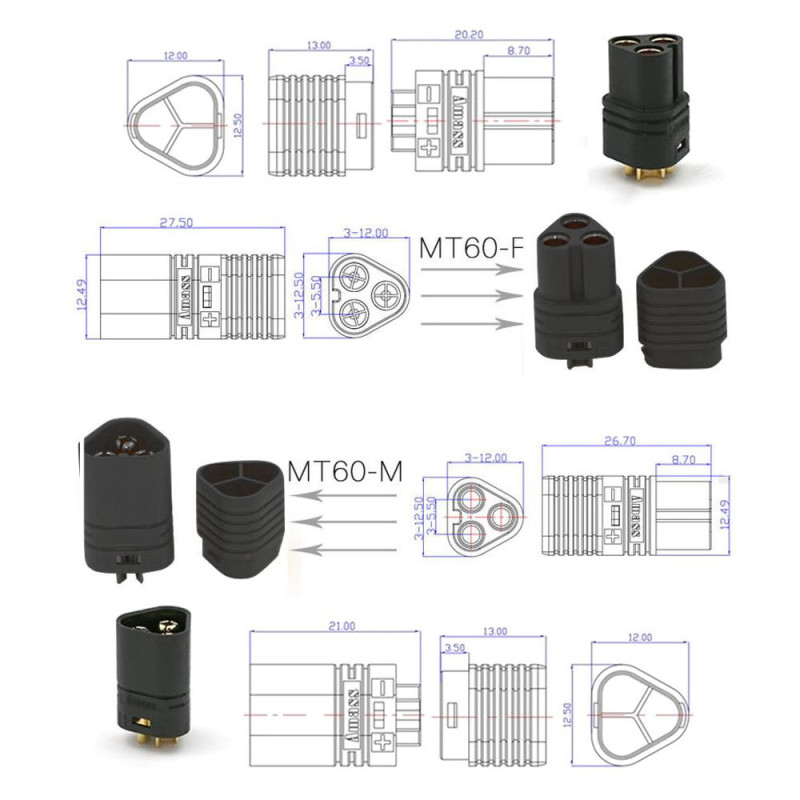

• Dimensions: 45mm x 12mm x 12mm
• Weight: 10gr ( Pair )

Package Contents:

•    1 Piece Mt60 male socket
•    1 Piece Mt60 female socket
•    2 Pieces protective plastic
