Ra-02 SX1278 Dip Module With Antenna

433Mhz Lora RA-02 SX1278 Wireless Communication Module With Antenna

433 Mhz SX1278 Transceiver Long Range 0.5km/10km Water Electricity Gas Meter Wireless Sensor Temperature Data Monitoring Remote Control Telemetry Automation Robot Pump Electrical Control

     The SX1278 based Ra-02 LoRa module is a spread spectrum communication module designed for long range and low power consumption wireless data transmission. It uses the SEMTECH SX1278 RF chip and is manufactured by Ai-Thinker (Anxinke). It has an interface compatible with the NRF24L01 pin layout, so it can be used in existing designs with a software update without any hardware change.

     It operates in the 433MHz frequency band. Thanks to LoRa modulation technology, it offers high receiver sensitivity and strong interference immunity. It is suitable for very long range communication applications in open area conditions.

Features:

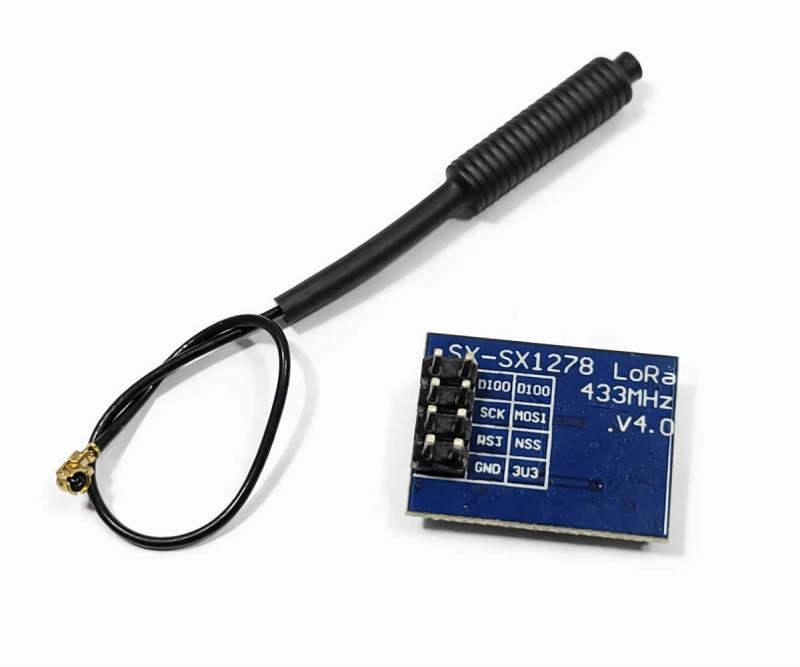

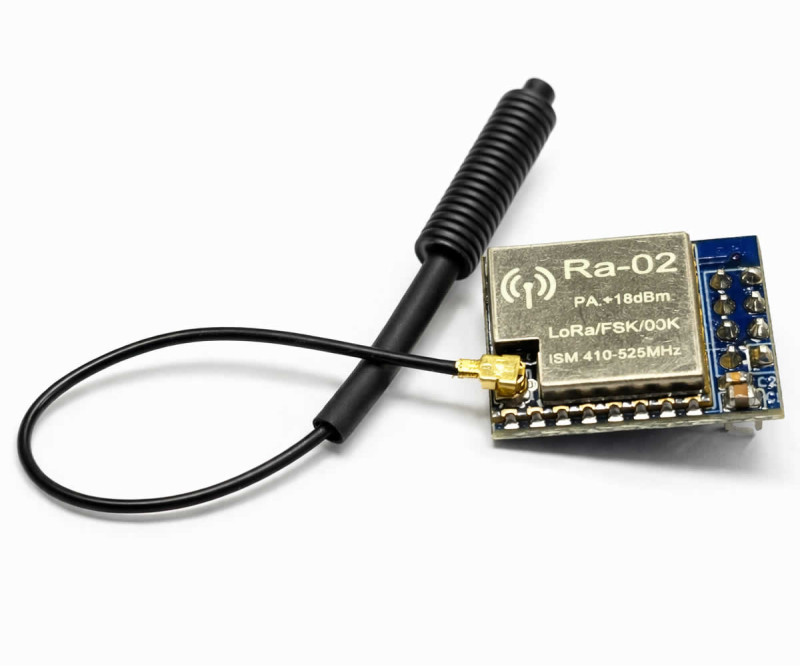

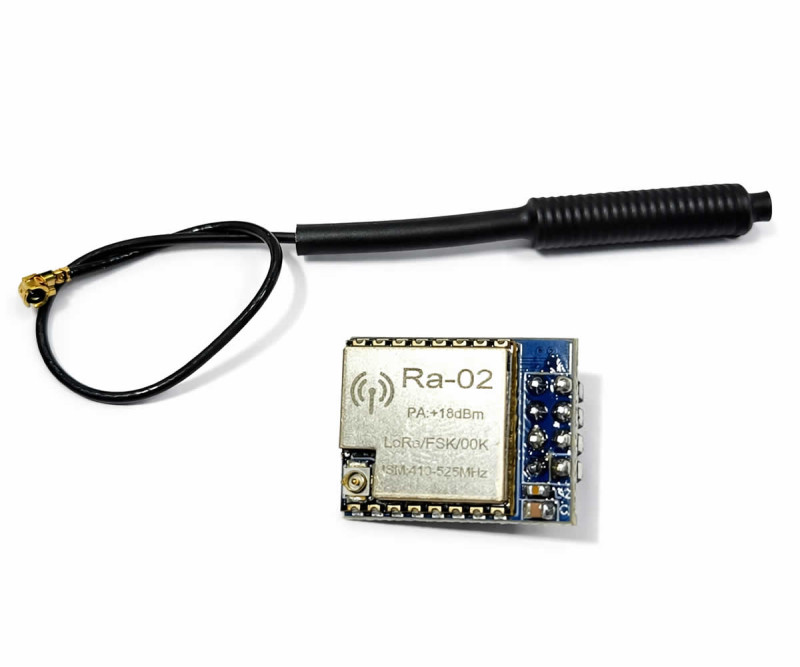

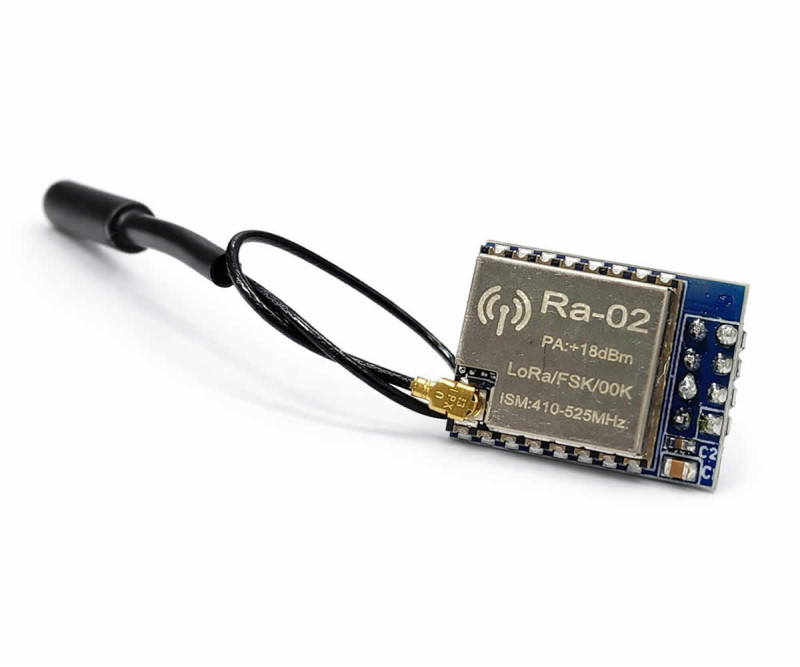

• Ra-02 SX1278 Dip Module With Antenna
• SX1278 Chip
• Operating voltage: DC 3.3V
• Receiver current (RX): 10mA
• Transmitter current (TX): 120mA (at +20dBm output power)
• Low power consumption, air wake-up supported
• Output power: +20dBm 100mW
• Receiver sensitivity: -148dBm
• Stable rf output power
• Communication range: 0.5km / 10km
• Operating frequency: 433MHz  ( 420 / 450MHz )
• Communication: SPI
• Communication rate: Maximum 300kbps
• Modulation: LoRa, FSK, GFSK, MSK, GMSK, OOK
• RSSI dynamic range: 127dB
• Automatic rf signal detection
• CAD mode and high speed AFC support
• Packet structure: Hardware CRC supported, 256 byte data length
• Metal shielding case
• Operating temperature:  -40C  /  85C
• 2x4 Pin Male pin header socket
• Pin pitch: 2.54mm

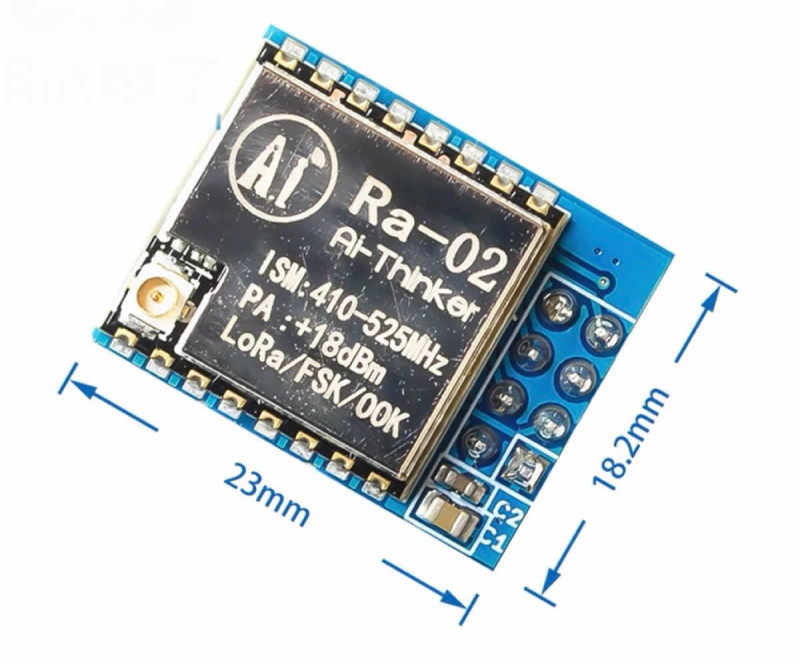

• Dimensions:  18mm x 23mm
• Antenna length: 130mm
• Weight: 5gr

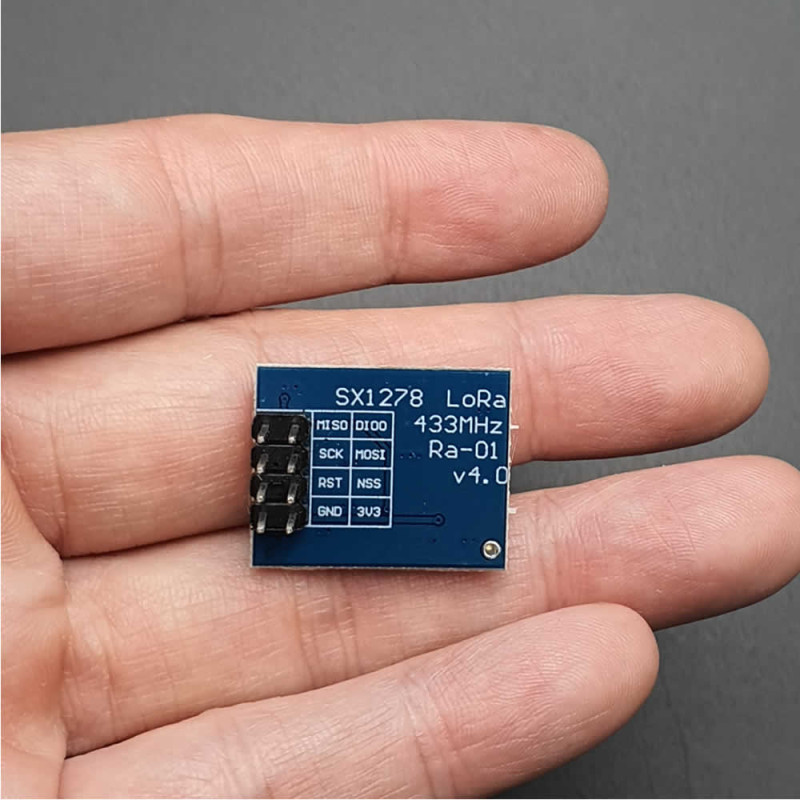

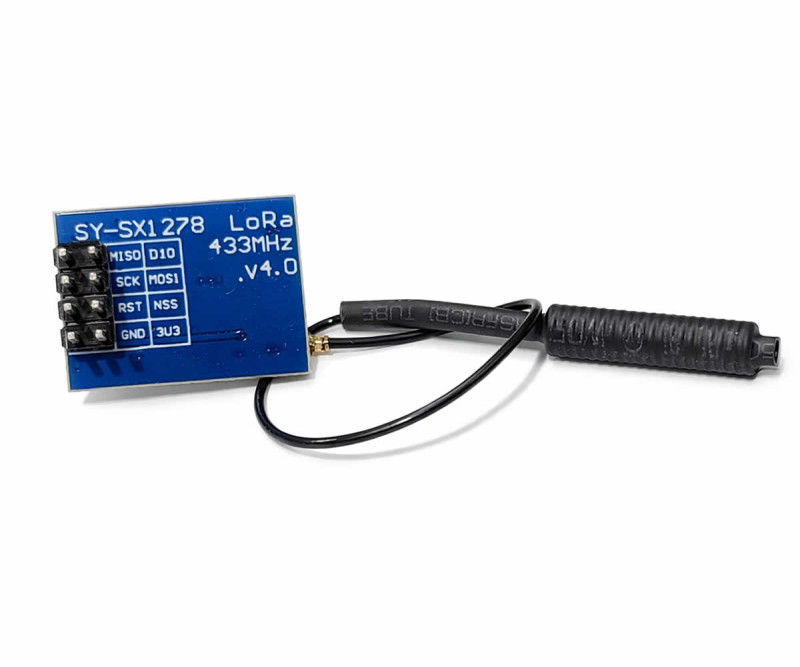

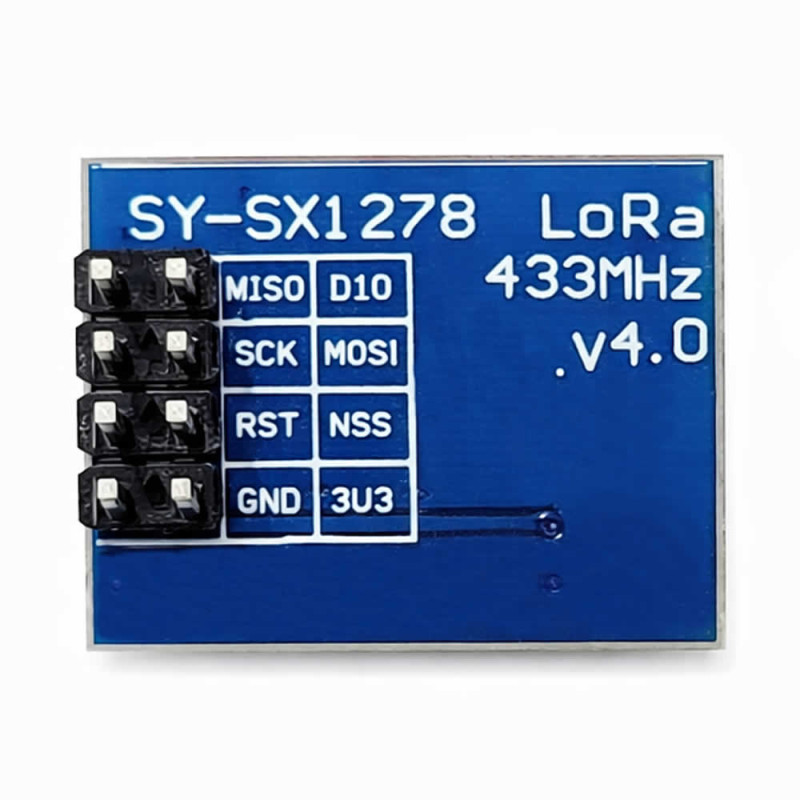

Pin description:

• MISO: SPI data output
• SCK: SPI clock signal
• RST: Module reset input
• GND: Ground line
• D10: External control pin can be used for chip select purposes
• MOSI: SPI data input
• NSS: SPI chip select line
• 3.3V: Supply voltage input

Advantages:

• Ultra long range wireless communication
• Strong anti interference performance
• Low energy consumption
• NRF24L01 compatible pin layout
• Structure suitable for industrial and IoT applications

Areas of use:

• Smart meter reading systems
• Smart home and building automation
• Alarm and security systems
• IoT data transmission projects
• Remote sensor and control applications

Package contents:

• 1 Piece Ra-02 SX1278 Dip Module With Antenna
