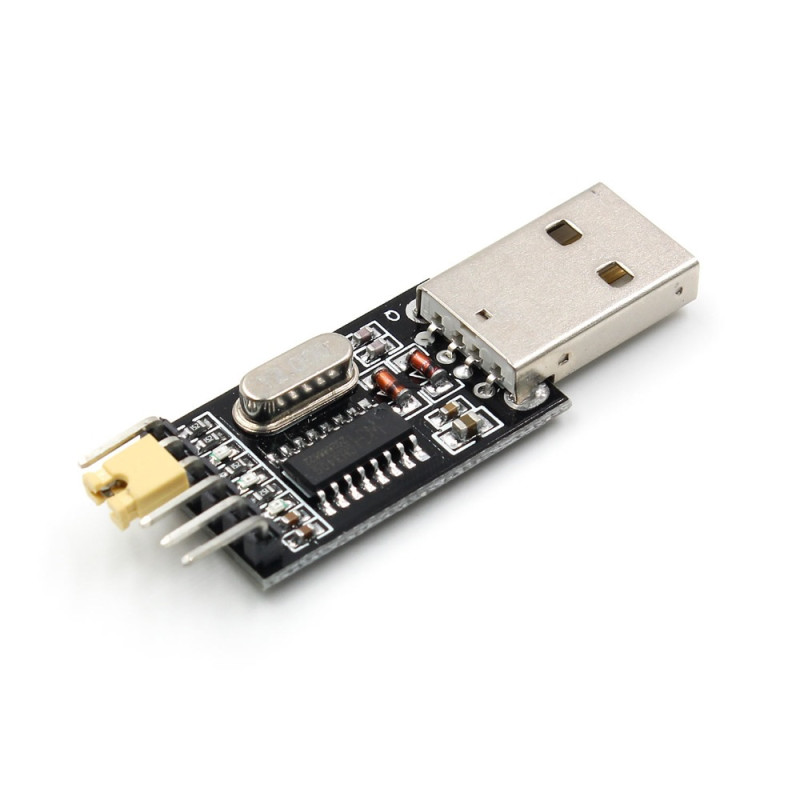

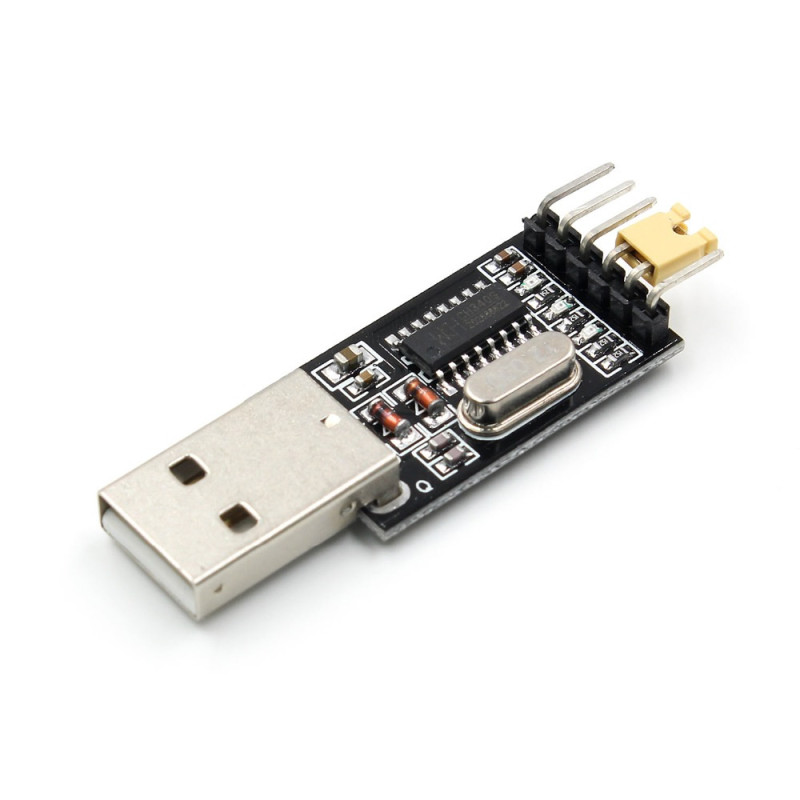

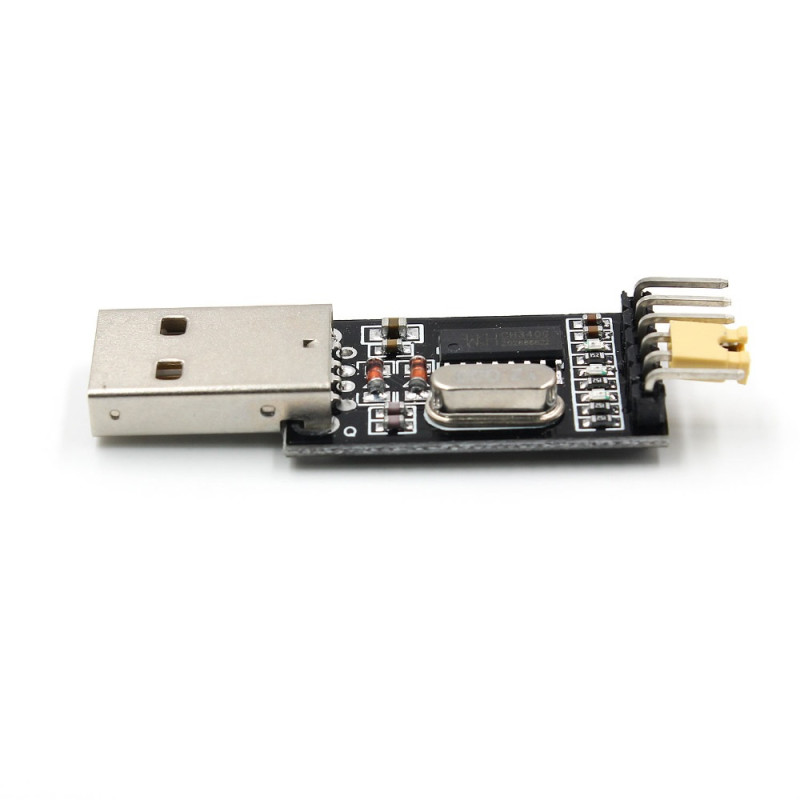

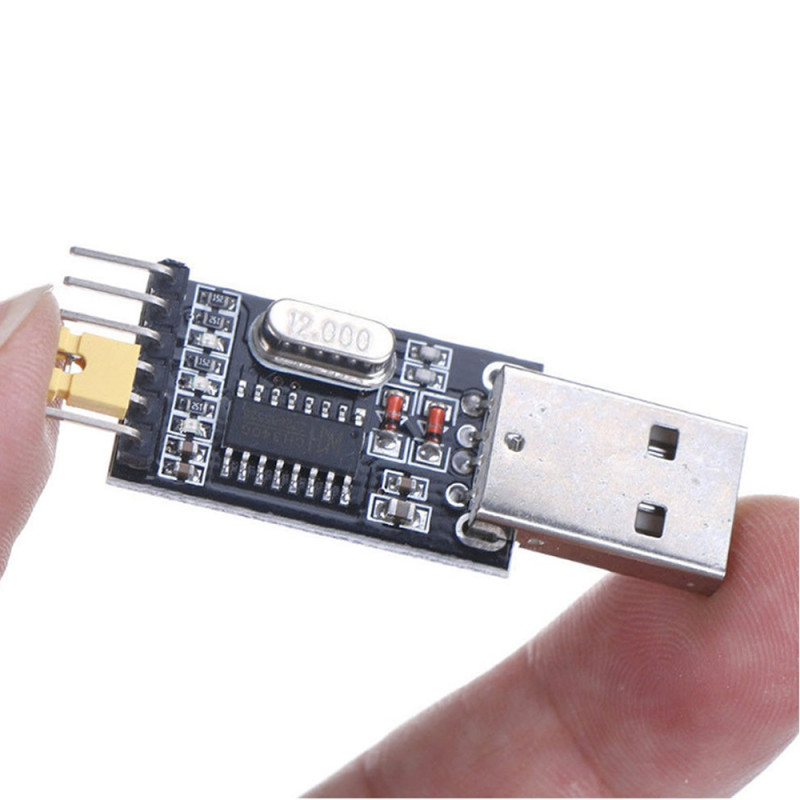

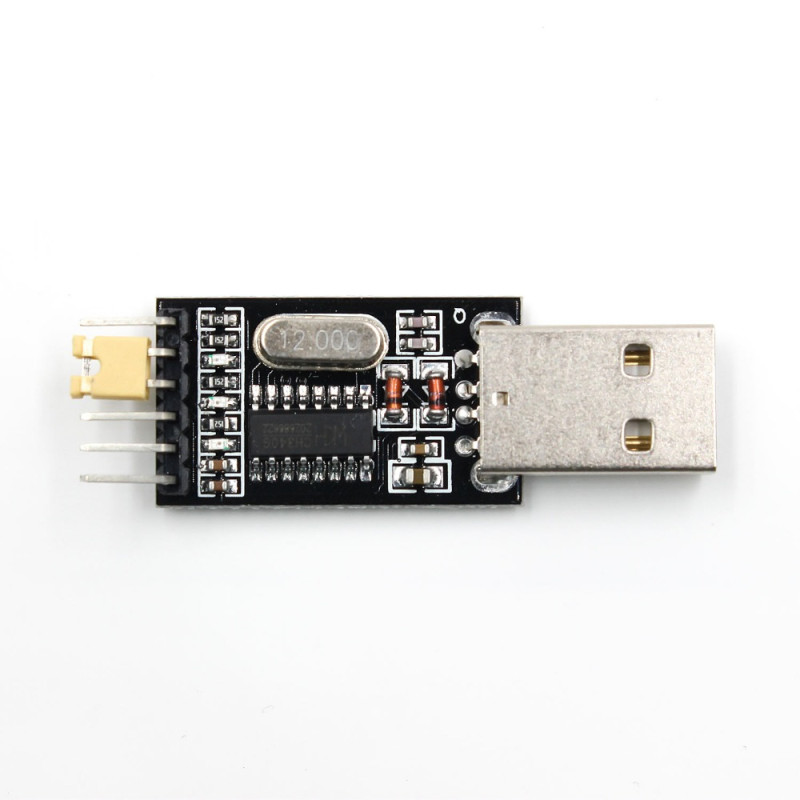

CH340G USB to TTL UART Module

CH340G USB to TTL UART Converter Module

Serial Port Communication Arduino Mcu Satellite Receiver Dvd GSM Phone

     A converter circuit that enables data exchange between usb ttl rs232. It is used for serial port communication over usb on computers that do not have a serial port. The CH340G chip has not been used. There is 3.3V 5V supply support. There are 2 communication indicator leds. There is 1 power indicator led.

Specifications:

•     Converts the USB port to a TTL serial port.
•     The CH340G ic is used.
•     It can operate as 3.3V or 5V. The VCC choice is made with a jumper.
•     Blue power indicator led.
•     Rx, Tx indicator leds.
•     There is a standard USB type A male socket.
•     500mA protection fuse.
•     Dual protection circuit

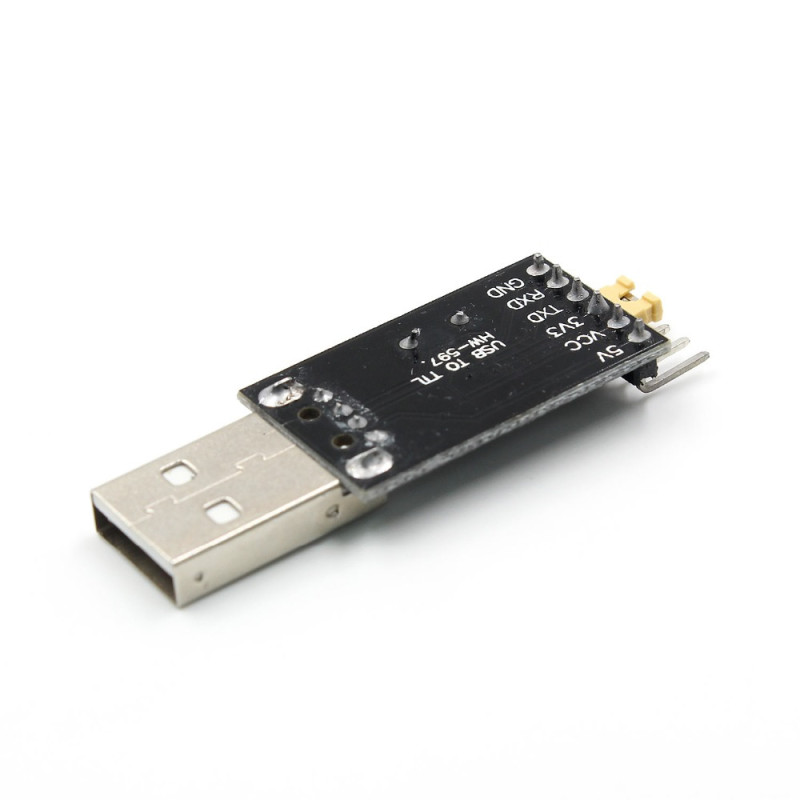

•     There are 5 Pin ttl connector output pins. These pins are GND, RXD, TXD, 3.3V and 5V.
•     The operating voltage is set to the 5V or 3.3V level via the 3 way socket.
•     Thanks to the TTL outputs it easily provides communication with an mcu.
•     Windows 98SE, 2000, XP, Vista, 7, 10, 11  (32/64 Bit)

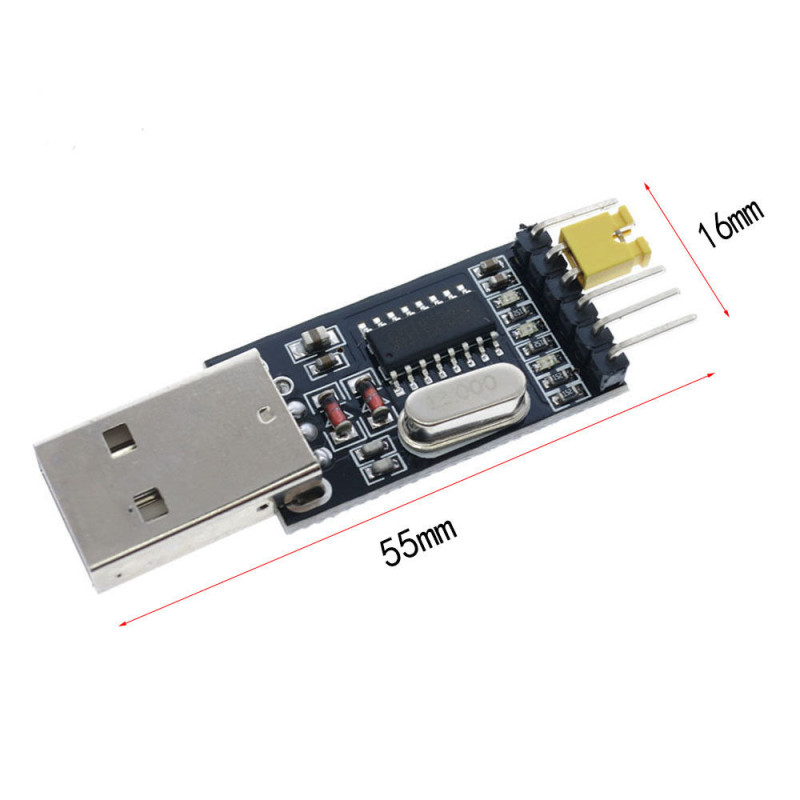

•     Dimensions:   55mm x 16mm
•     Weight:  5gr

Note : The circuit is covered with transparent shrink tubing.

Driver:  The CH341SER.EXE file must be downloaded via Google and installed.

wch-ic.com/products/CH340.html

Package Contents :

•     1 Piece  CH340G Module

.
