Arduino MEGA Sensor Shield

Arduino Mega 2560 Sensor Shield

Bluetooth IIC SPI SD Card Wifi Ultrasonic Sensor Lcd IO Expansion Extension Board

     The Arduino Mega Sensor Shield Board product is designed for the Arduino Mega. However it can be used with DUE or other boards that have a similar pin structure. Shield boards are produced to solve the I/O shortage problem you experience while developing your projects. With this product you can easily connect many sensors, servos, relays, buttons, potentiometers, keypads and similar components to the circuit. With the Arduino Mega Sensor Shield board your complex circuits will look more compact and more professional. In addition, you can follow the circuit more easily.

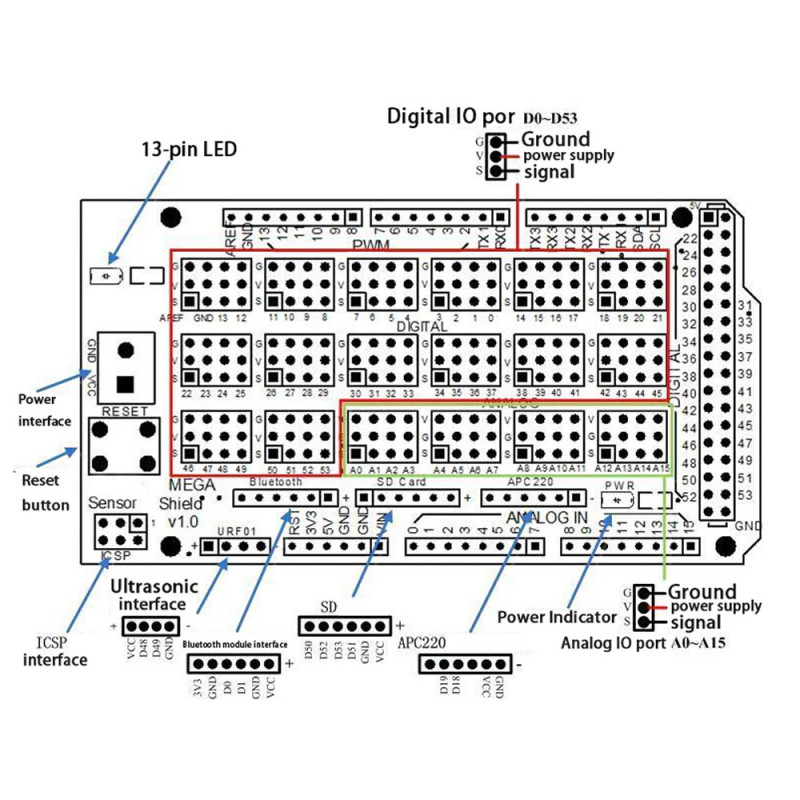

Technical Specifications:

•   Reset button
•   External supply connection terminal
•   Supply indicator led
•   Digital 54 I/O port
•   Analog 16I/O port
•   IIC communication support
•   SPI communication support
•   Can drive 32 servo motors
•   ICSP support
•   Bluetooth communication port
•   SD Card communication port
•   APC220 module connection port
•   RB URF ultrasonic sensors  connection port
•   Serial and parallel lcd support
•   Can carry out the communications supported by the Arduino Mega.

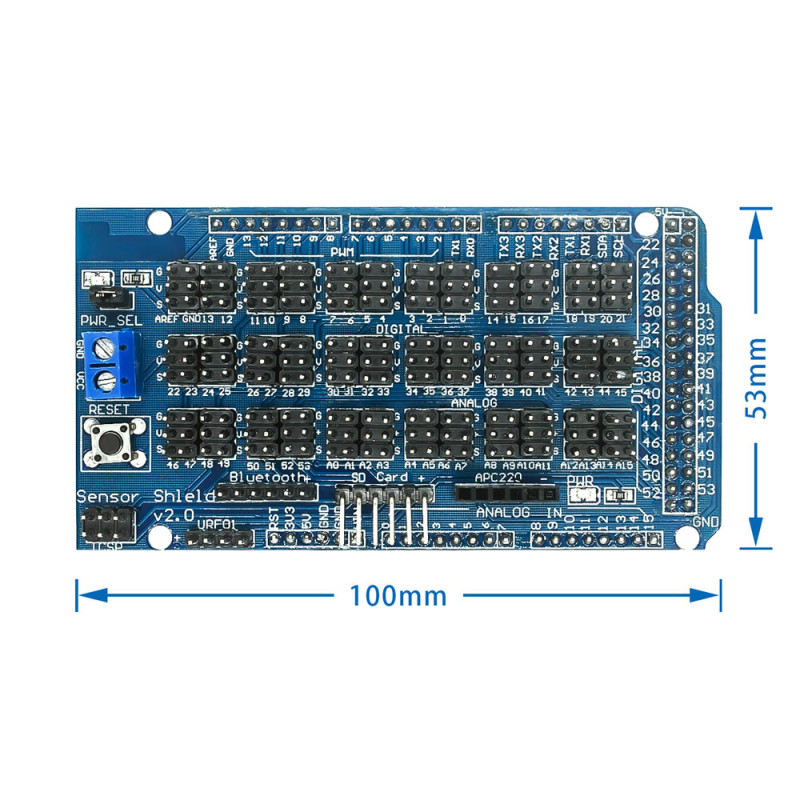

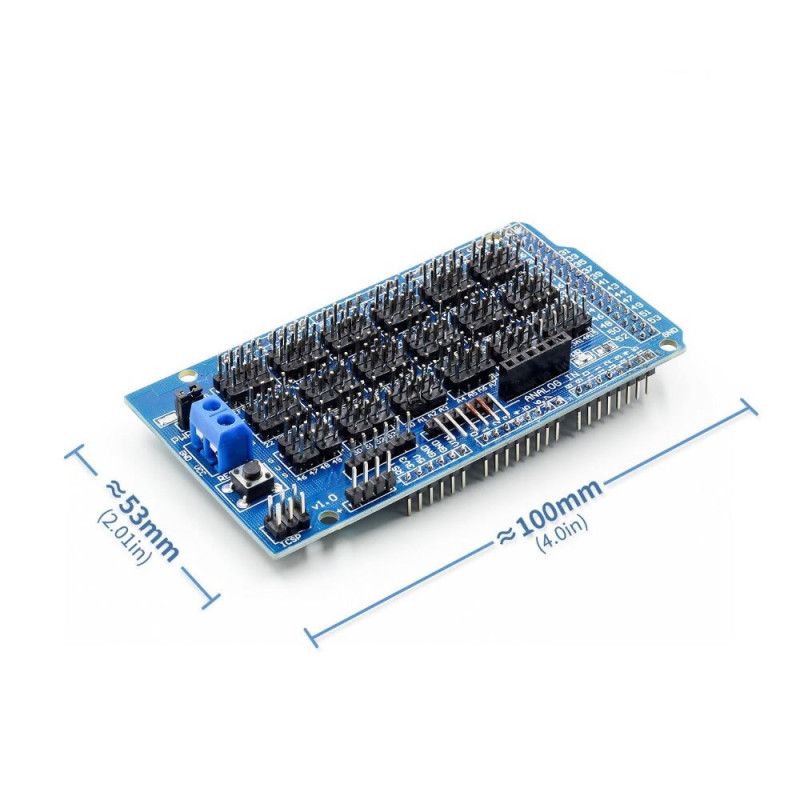

•   Dimensions 10cm x 5.5cm

Package Contents:

    1 Piece Arduino Mega Sensor Shield
