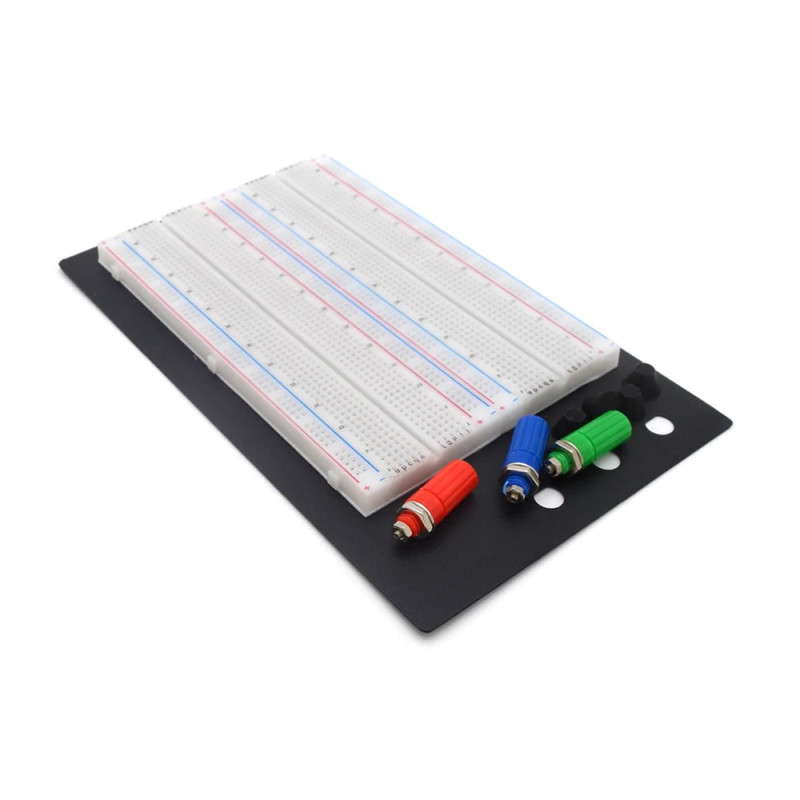

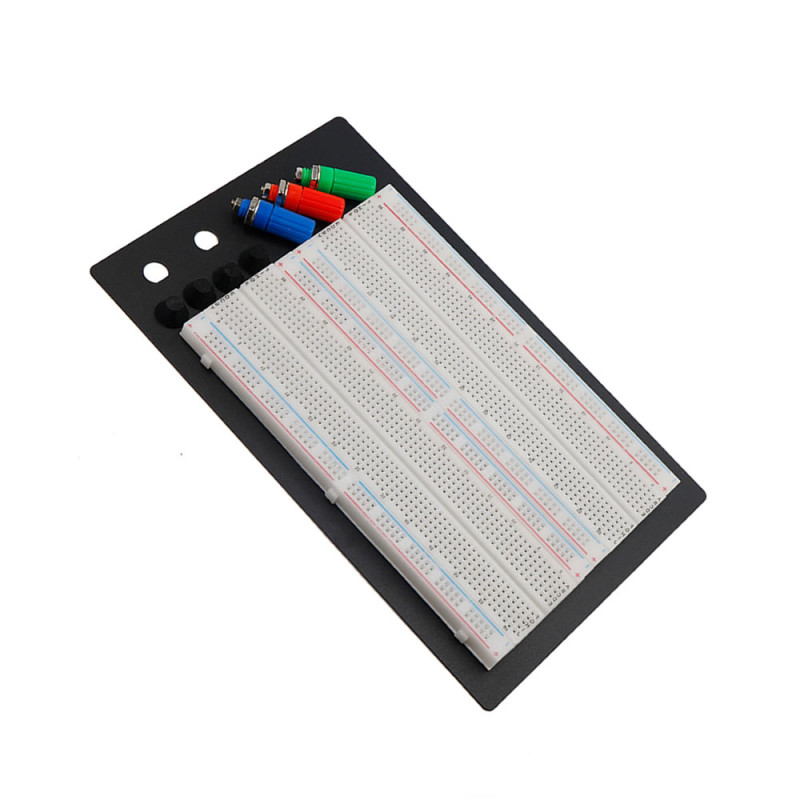

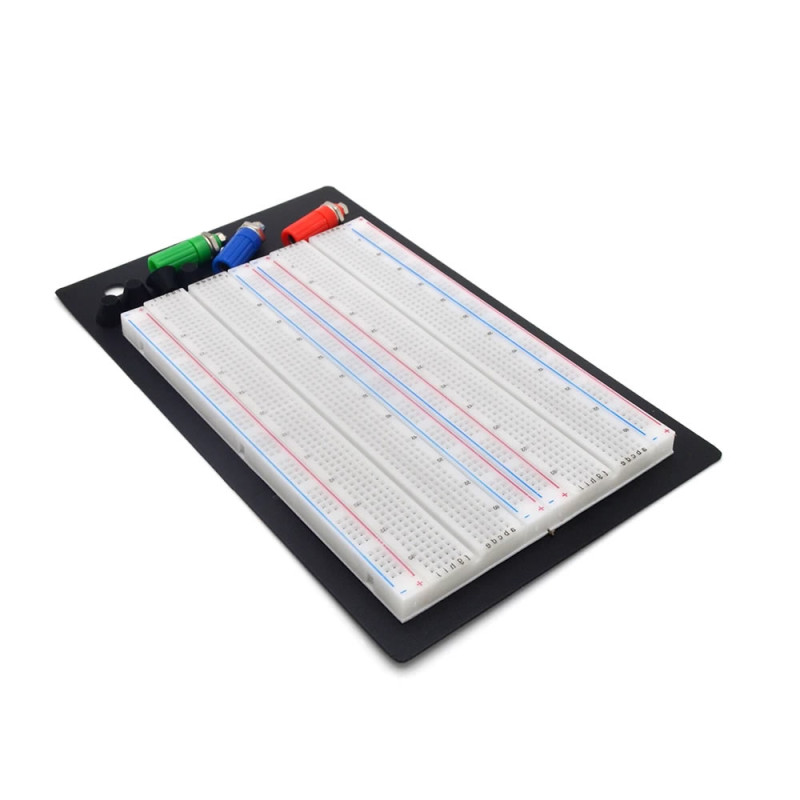

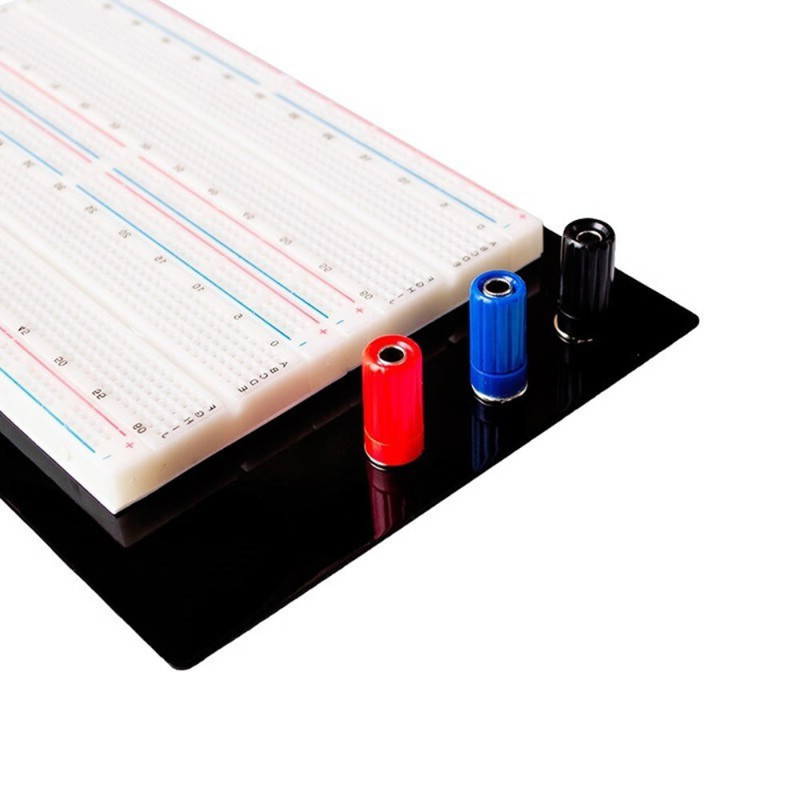

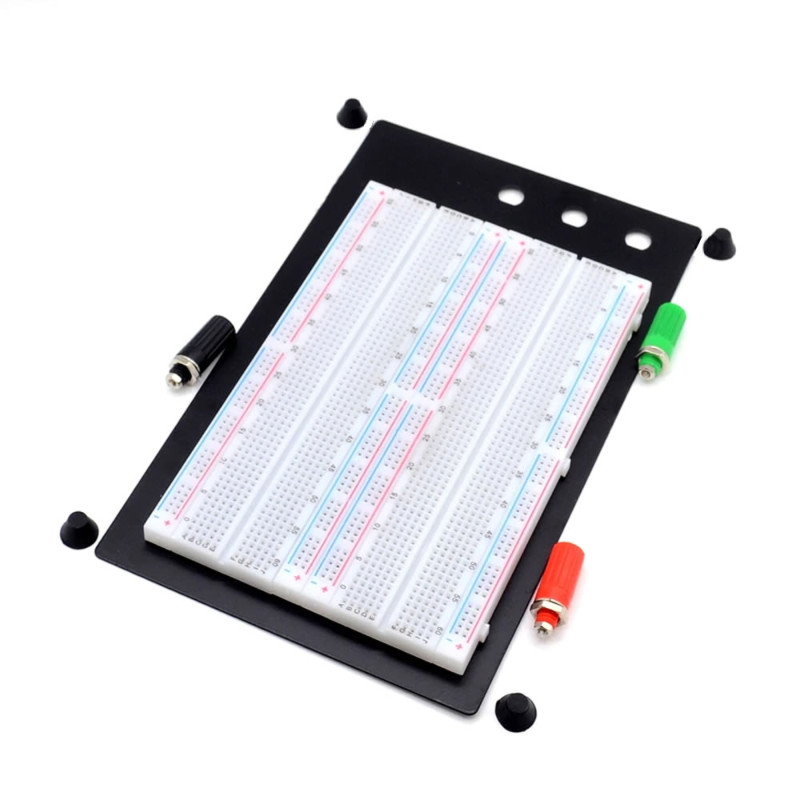

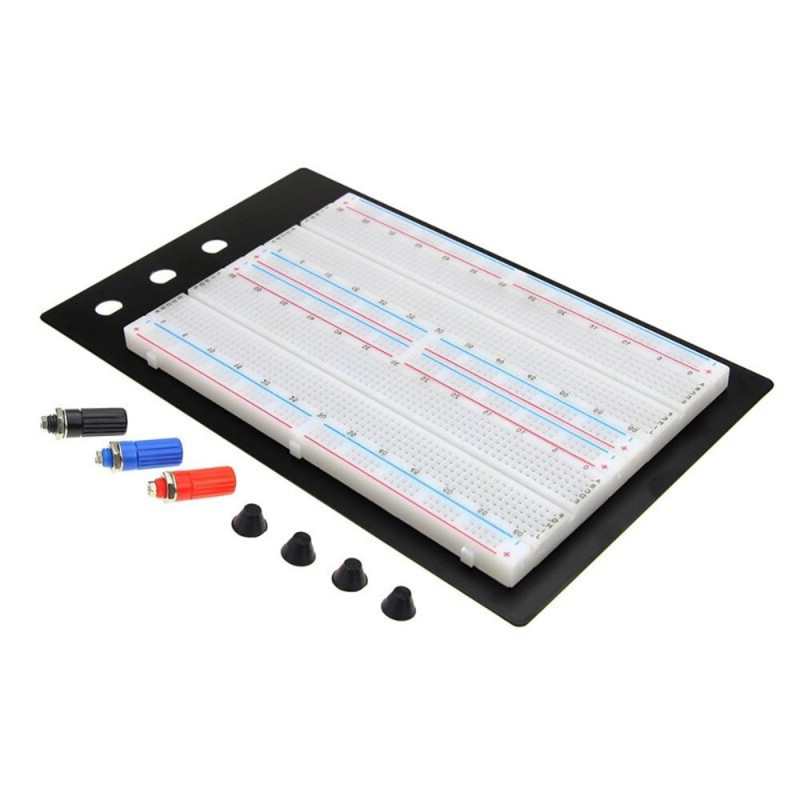

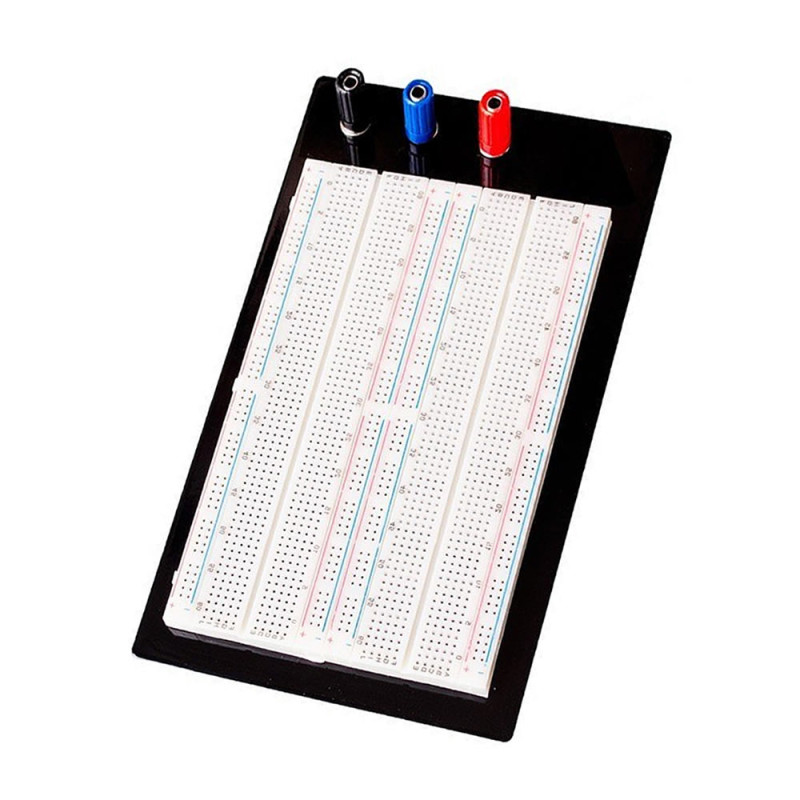

SYB-1660 Dual Bread Board

SYB-1660 Dual Bread Board

2100 Points 2,54mm Large Size Electronic Prototype Hobby Circuit Test DIY Breadboard

It is large size with more points than the syb-1660s sold on the market.

     Breadboards are products that allow electronic components to be plugged in easily and without soldering, and circuits to be built and tested. It makes it possible to carry out fast and reliable prototype work. It has a structure that connects the components to each other by means of the wires inside it, without physically connecting them with a soldering iron. It can be reused when components are plugged in and removed. There is no deformation in the pin structure. The resistances of the wires that provide the connection are very low.

     With its design that can be used over and over again, it is an indispensable product for electronics enthusiasts. It can be used with leaded dip type electronic components such as resistors transistors diodes, leds capacitors. There is also easy connection possibility between components with jumper cables.

     The holes used for electrical connections are arranged at 0.1" (100 mil- 2.54mm) intervals. It is produced from ABS plastic material.

Features:

•     SYB-1660 Dual Bread Board
•     Can be used with leaded components 0.4-0.7mm  thick.  (21-26awg)
•     2100 connection points
•     4 rows  5x85 horizontal terminal hole cells ( total 1700 )
•     8 rows of 50 vertical hole cells short circuited to each other ( total 400 )
•     Distance between 2 holes 2.54mm

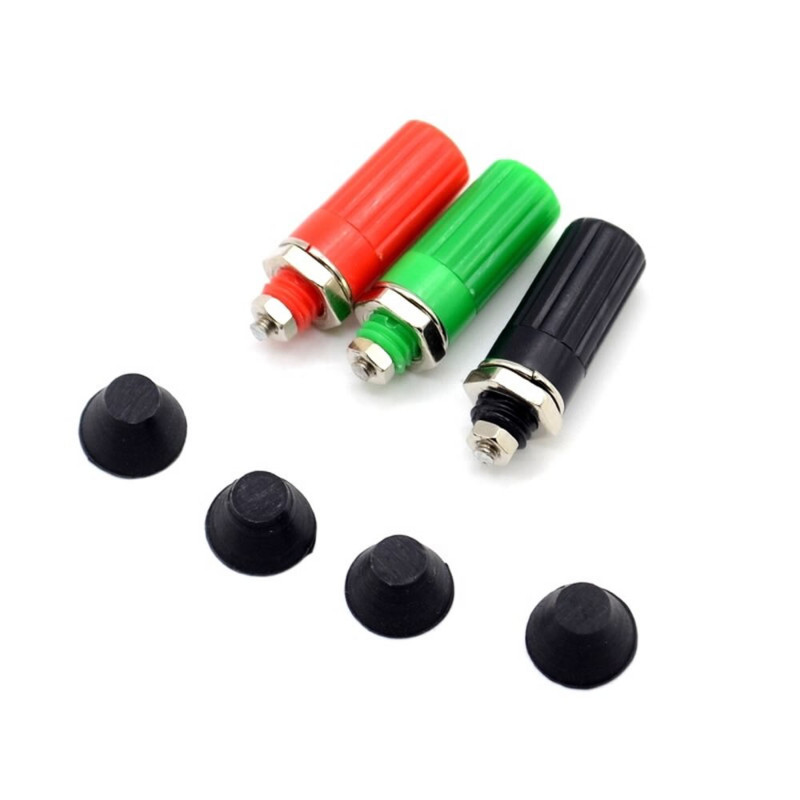

•     3 Pieces connection socket.
•     4 Pieces plastic foot
•     Quality ABS Plastic material./ Metal
•     Phosphor bronze nickel wire rods inside the hole.
•     The cells are designed at a quality that allows components to be inserted and removed more than 5000 times.
•     Lettered and numbered guide markings for easy use.
•     Colored indicator lines for easy use.
•     It offers an ideal working environment for high frequency and low noise circuits.
•     Black aluminum plate
•     Dimensions: 16.5cm x 11.1cm x 0.85cm
•     Aluminum plate dimensions :215mm x 130mm x 1.5mm
•     Weight:  365gr

Package contents:

• 1 Piece SYB-1660 Dual Bread Board
